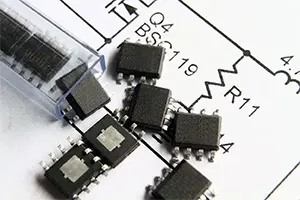

Anti-static IC Tubes

Clear antistatic shipping tubes play a pivotal role in ensuring the safe transport and storage of integrated circuits (ICs). These tubes protect ICs from static electricity, physical damage, and contamination. This guide explores the significance, features, benefits, and accessory options offered by Malaster for these essential packaging solutions.

Importance of Antistatic Shipping Tubes

Integrated circuits are highly sensitive to static electricity, which can cause significant damage and malfunctions. Antistatic shipping tubes are designed to dissipate static charges, ensuring the safe transport and storage of ICs. The clear material allows for easy identification of the contents without opening the package, which is vital for efficient inventory management and quality control.

Features and Benefits

1. Protection Against Static Electricity: These tubes prevent the buildup of static charges, safeguarding ICs during transportation and storage.
2. Durability: Made from high-quality materials, such as Polyvinyl Chloride (PVC), Polycarbonate (PC), and PETG, these tubes offer robust physical protection.
3. Transparency: Allows for quick identification of contents, improving efficiency in handling and inventory management.
4. Customizability: Available in various sizes and profiles to accommodate different types of ICs, ensuring a snug fit that minimizes movement and potential damage.
5. Environmental Considerations: Many antistatic tubes are made from eco-friendly materials that support the 3R concept – reduce, reuse, and recycle.

Material Options

• PVC (Polyvinyl Chloride): Commonly used for its good impact strength and stable dimensions. It provides excellent static protection and is available with antistatic surfactant treatments.
• Polycarbonate (PC): Known for its high impact strength and superb clarity. It is ideal for high-precision applications due to its tight dimensional tolerances.
• PETG: Offers the highest impact strength, suitable for heavy-duty packages. It is also halogen-free, making it environmentally friendly.

Customization and Design

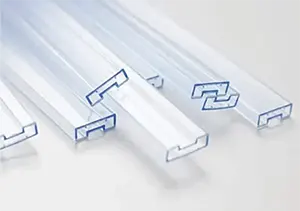

Malaster's antistatic shipping tubes can be tailored to specific needs. For example, tubes may have “riding rails” to protect fragile leads, or come with end plugs and tacks to secure ICs within the tube. The dimensions and profiles are carefully designed to ensure that the ICs do not move excessively during transit, which can cause damage.

Variety of ICs Packaged

Malaster offers a wide range of antistatic shipping tubes suitable for different IC packages:

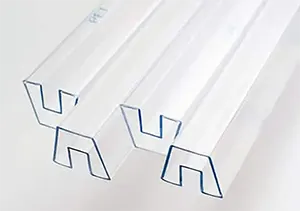

• DIP (Dual In-line Package) Shipping Tubes: Ideal for standard ICs with two parallel rows of pins.
• Flatpack Shipping Tubes: Suitable for ICs with flat, leadless packages.
• TO-220 Shipping Tubes: Designed for transistor outlines with three leads.
• Cerquad Shipping Tubes: For ceramic quad flat packs.
• LCC (Leadless Chip Carrier) Shipping Tubes: Designed for ICs without leads.
• PGA (Pin Grid Array) Shipping Tubes: Suitable for ICs with a grid of pins.
• PLCC (Plastic Leaded Chip Carrier) Shipping Tubes: For ICs with leads on all four sides.
• PQFP (Plastic Quad Flat Pack) Shipping Tubes: Designed for ICs with leads on four sides.
• PSOP (Plastic Small Outline Package) Shipping Tubes: For smaller IC packages.
• SOIC (Small Outline Integrated Circuit) Shipping Tubes: Ideal for ICs with gull-wing leads.
• TSSOP (Thin Shrink Small Outline Package) Shipping Tubes: Designed for thin, compact IC packages.
