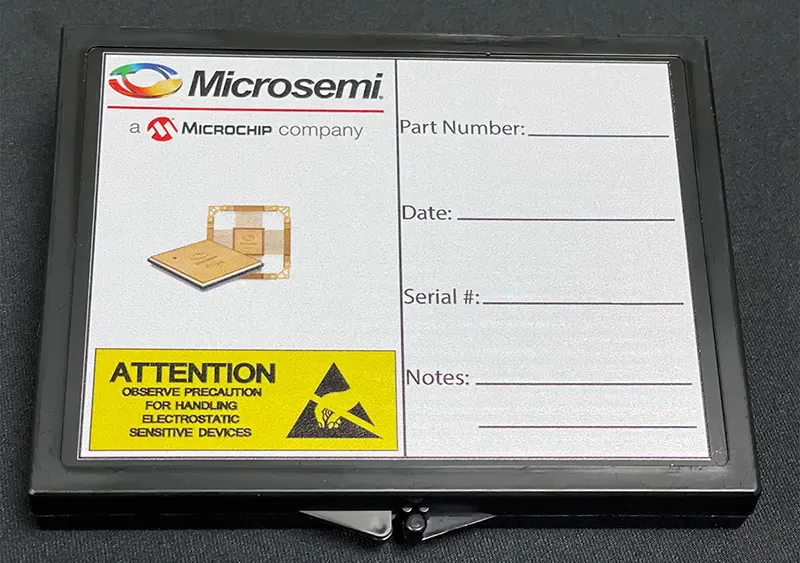

MC-803C Hinged Conductive Box with ESD protection and custom printing.

MC-803C : Hinged Conductive Box 0.5" x 2.56" x 3.5"

Model: MC-803C

Quantity:

Product Details

Product Details:

The MC-803C Hinged Conductive Box offers robust ESD protection for sensitive components. Designed with a secure hinged lid and snap closure, it ensures your items remain safe and contained. Made from high-quality conductive plastic, this box is permanently ESD safe and minimizes the risk of contamination with low FOD characteristics.

Features:

Effective ESD Protection: Safeguards sensitive items from static charges.
Secure Closure: Hinged lid with a snap closure to prevent accidental opening.
Durable Material: Made from conductive plastic, ensuring long-lasting ESD safety.
Customizable Foam Inserts: Available with conductive, antistatic, and static dissipative foam pads upon request.
Full-Color Custom Printing: Enhance your branding and identification with our full-color custom printing options. Ideal for logos, detailed instructions, and compliance information, our printing service ensures your boxes are as informative and visually appealing as they are functional. Learn more about our custom ESD packaging solutions.

Applications: Ideal for storing and transporting small ESD-sensitive items in various settings, including cleanrooms and semiconductor facilities.

Technical Details:

Electrostatic	Typical Values	Test Method
Surface Resistivity	<10⁵ ohms/sq.	ASTM D 257-78
Surface Resistance	<10⁴ ohms	EOS/ESD-11, 11-1991
Volume Resistance	<100 ohm-cm	ASTM D 991-83
Static Decay	<0.10 decay	EIA-541, Apx F*

Physical
Specific Gravity	1.02	ASTM D 792
Water Absorption %	24 hours @ 23C .01lbs./ ft²	ASTM D 570
Impact Strength: IZOD	Notched 1.2 ft lbs/in	ASTM D 256
	Unnotched 7 ft lbs./in

Load Deflection Temp.	@264 psi 210F	ASTM D 648
	@66 psi 220F
Thermal Conductivity	1.8 BTU/hr/ft²	ASTM C 177
Flammability	<1.5 in/min	ASTM D 635

Chemical Resistance
Dilute Acids	Excellent
Dilute Alkalines	Excellent
Concentrated Alkalines	Excellent
Saline Solutions	Excellent
Alcohol	Excellent
Ketones	Excellent
Detergents & Soaps	Excellent
Concentrated Acids	Good
Oil & Gasoline	Fair
Aromatic Hydrocarbons	Fair
Aliphatic Hydrocarbons	Fair
Paint Solvents	Poor

*Federal test standard-101C, Method 4046.1, as described in EIA-541, Appendix F.

MC-803C : Black Conductive Box 0.5" x 2.56" x 3.5"

MC-803C : Hinged Conductive Box 0.5" x 2.56" x 3.5"
