Thermoformed ESD Trays / MC-77002
Thermoformed semiconductor packaging
MC-77002
25-Cavity PGA Tray
A five-by-five tray layout for individual semiconductor devices, with a reference design for 68-pin PGA packages. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77002 when you contact us.
A starting point for your device

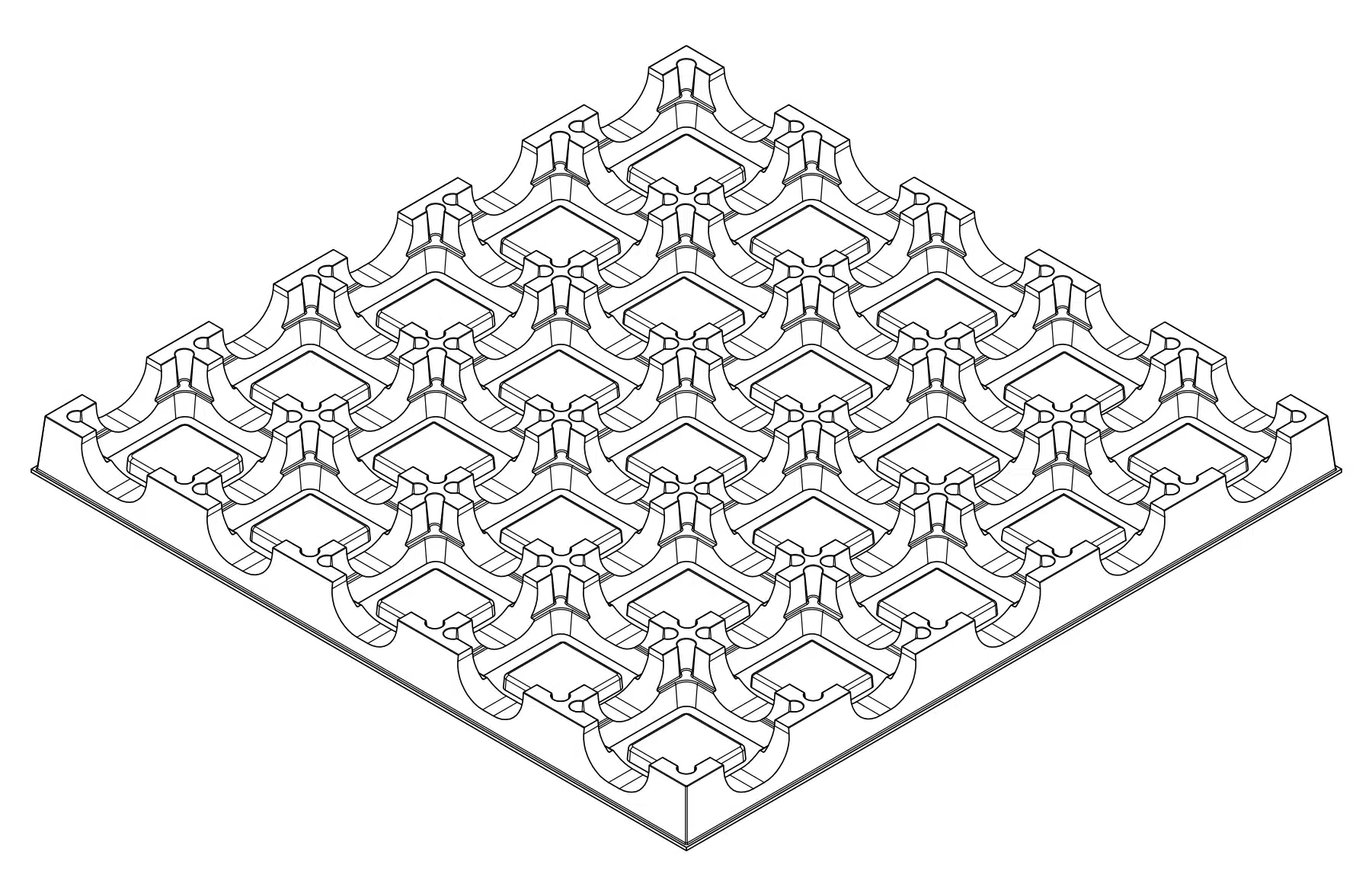

The MC-77002 brings 25 individual cavities together in a compact, nearly square tray. Its organized layout provides a useful starting point when reviewing packaging for PGA devices and other components with similar handling needs.
Package names and overall dimensions are only part of the fit discussion. We look at the actual device outline, body thickness, pin projection and the way the component will be loaded, handled and removed.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77002 |
|---|---|
| Cavity layout | 25 cavities in a 5 × 5 arrangement |
| Reference application | 68-pin PGA (pin grid array) |
| Reference cavity length × width | 1.063″ × 1.063″ Approximately 27.0 × 27.0 mm |
| Reference depth to center support | 0.384″ Approximately 9.8 mm |
| Overall footprint | 7.188″ × 7.219″ Approximately 182.6 × 183.4 mm |
| Reference height | 0.534″ Approximately 13.6 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size
The individual cavity profiles, central support areas and surrounding relief are useful details when comparing this tray with your device. A package drawing or a few clear photographs can help us understand where support and clearance are needed.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77002 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77002 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77002 in your inquiry so we can refer to this tray design.
