Thermoformed ESD Trays / MC-77012
Thermoformed semiconductor packaging
MC-77012
20-Cavity CQFP Tray

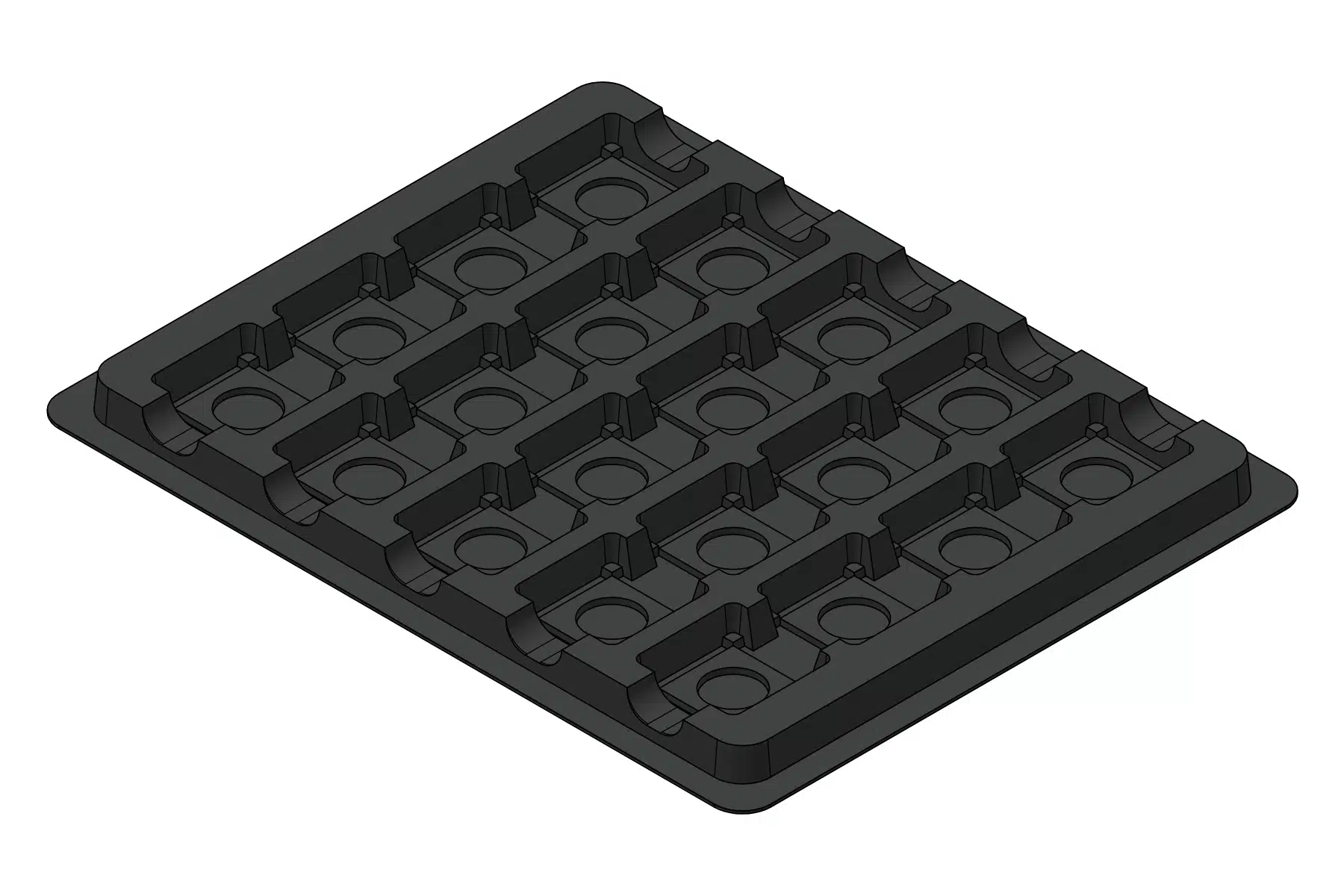

A 20-cavity tray with square pockets and internal support features, based on a 100-lead CQFP application. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77012 when you contact us.
A starting point for your device
The MC-77012 combines a five-by-four layout with 1.030″ × 1.030″ cavity references. Each pocket includes a central circular feature and surrounding formed details that need to be considered with the device outline.
CQFP package fit depends on the body, lead span, lead position and support height. A matching lead count alone does not establish compatibility; a package drawing lets us review the actual contact and clearance areas.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77012 |
|---|---|
| Cavity layout | 20 cavities in a 5 × 4 arrangement |
| Reference application | 100-lead CQFP |
| Reference cavity length × width | 1.030″ × 1.030″ Approximately 26.2 × 26.2 mm |
| Reference depth to support level | 0.275″ Approximately 7.0 mm |
| Overall footprint | 7.625″ × 6.125″ Approximately 193.7 × 155.6 mm |
| Reference overall height | 0.360″ Approximately 9.1 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

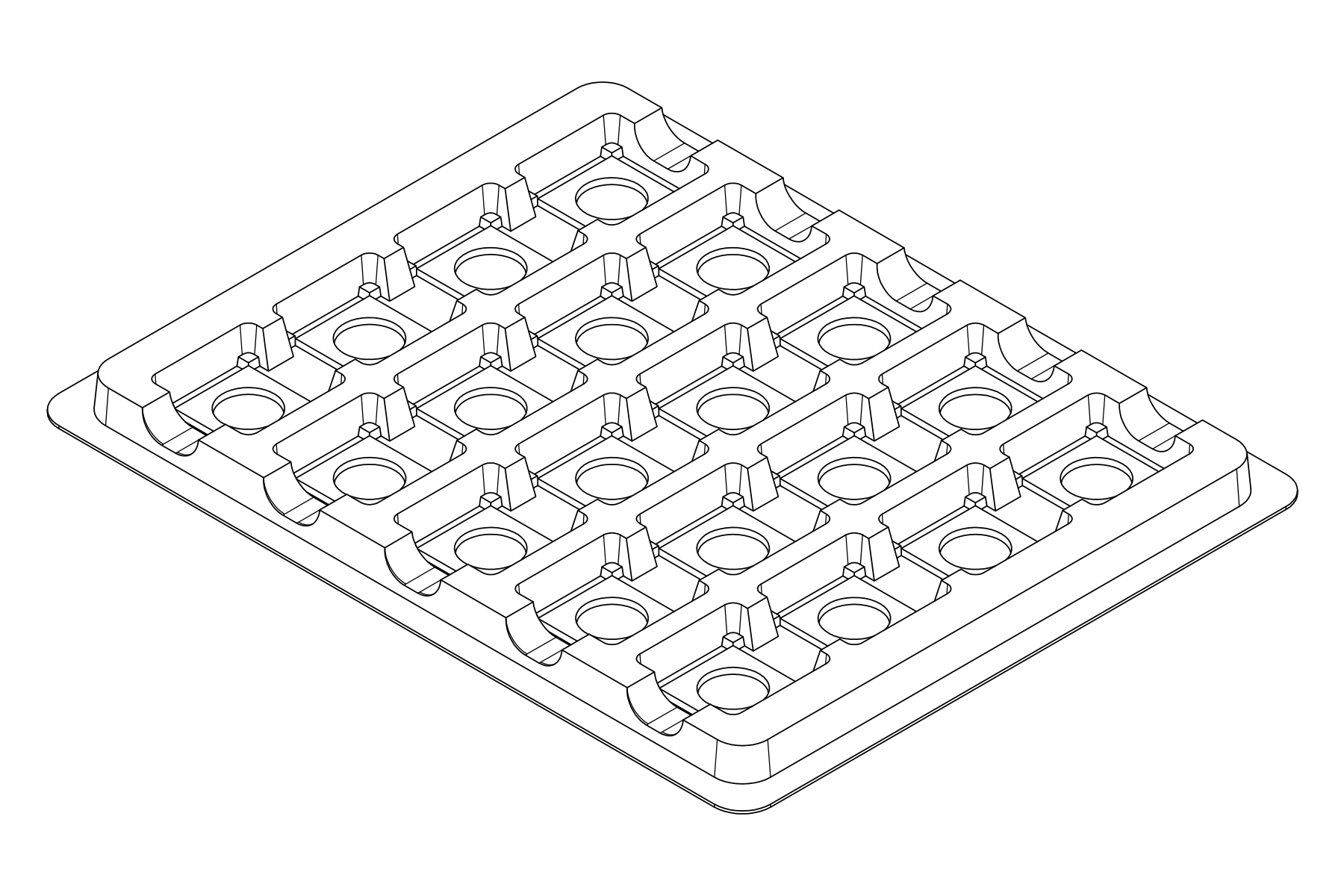

The line view makes the central features and surrounding lead-clearance areas easier to inspect. Share the device drawing and how it will be picked up so we can review support and access together.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77012 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77012 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77012 in your inquiry so we can refer to this tray design.
