MC-77038

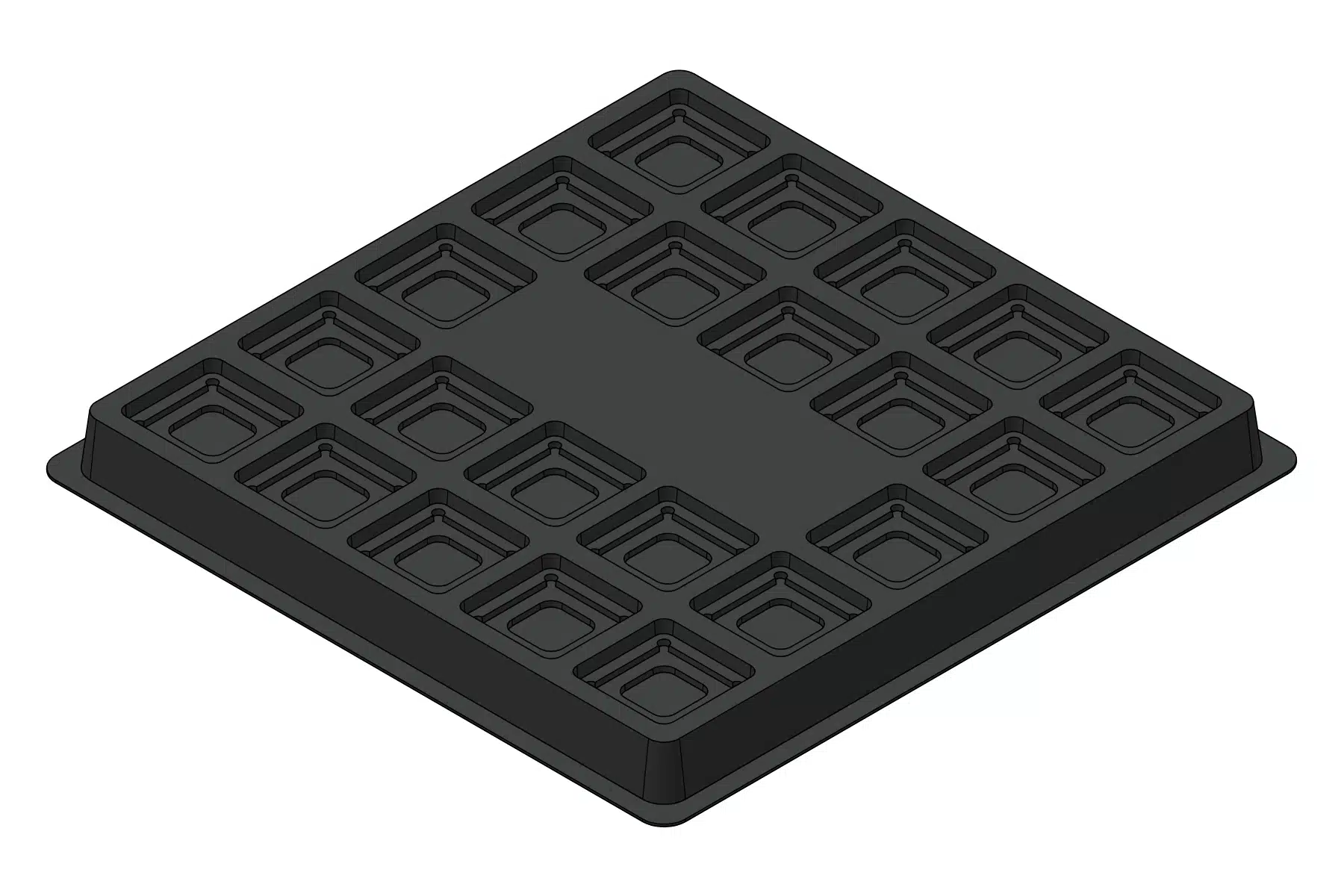

22-Cavity SMD Tray
A 22-cavity tray with stepped square pockets and a central clear area, based on a 1.100″ × 1.100″ SMD reference. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77038 when you contact us.
A starting point for your device
The MC-77038 uses square cavities around a central gap in the layout. Its 7.325″ × 7.500″ overall footprint and stepped pocket features provide a starting point for reviewing surface-mount components and similar packages.
The cavity ledge and center area are at different levels. We review the underside of the device, any leads or terminals and the intended contact points before recommending the fit.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77038 |
|---|---|
| Cavity layout | 22 cavities with a central clear area |
| Reference application | Square SMD components |
| Reference cavity length × width | 1.100″ × 1.100″ Approximately 27.9 × 27.9 mm |
| Reference depth to upper cavity ledge | 0.140″ Approximately 3.6 mm |
| Overall footprint | 7.325″ × 7.500″ Approximately 186.1 × 190.5 mm |
| Reference overall height | 0.600″ Approximately 15.2 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

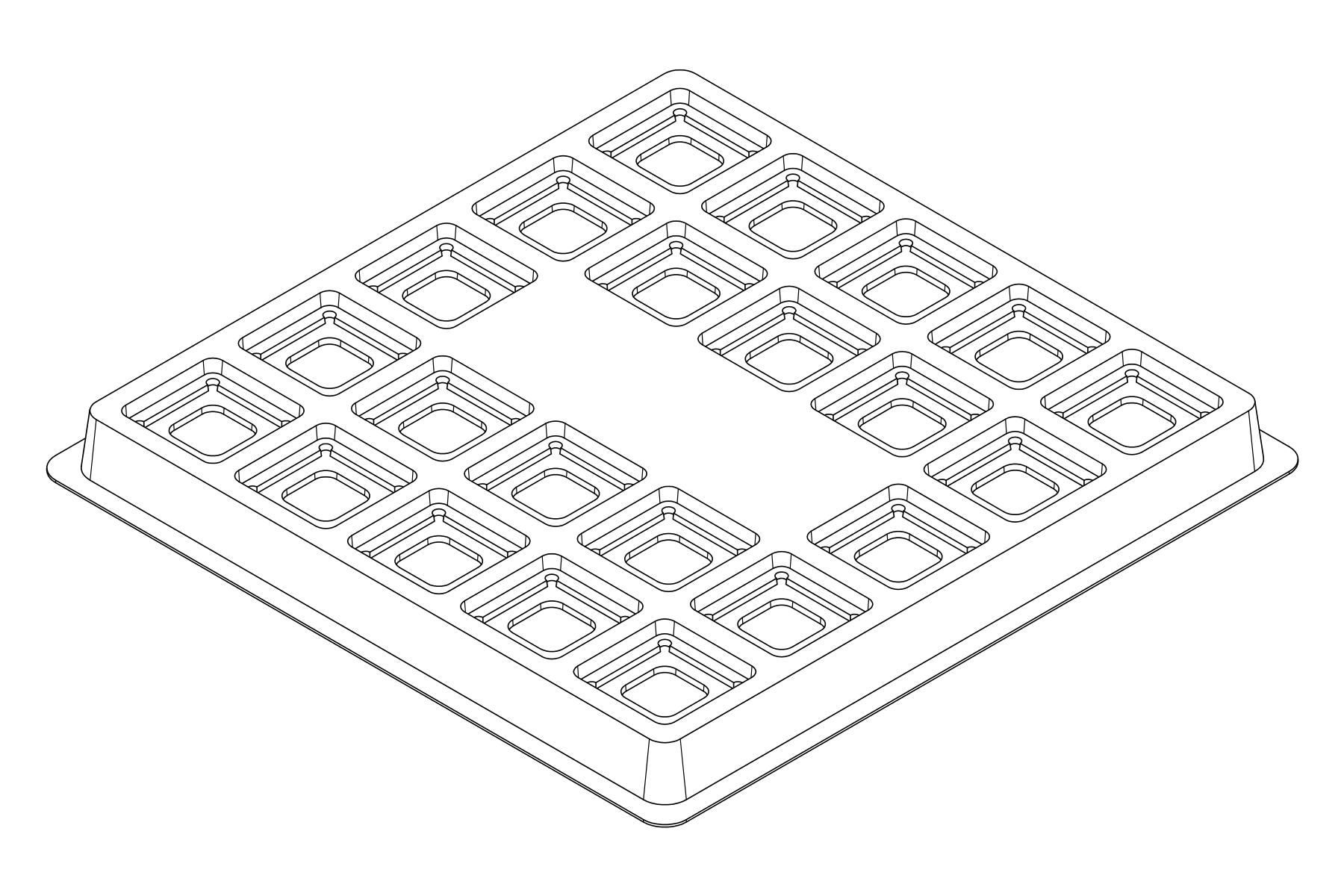

The line view shows the square cavity openings, stepped ledges and recessed center areas. An underside view or package drawing will help identify which features need support or clearance.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77038 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77038 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77038 in your inquiry so we can refer to this tray design.
