Thermoformed ESD Trays / MC-77062
Thermoformed semiconductor packaging
MC-77062

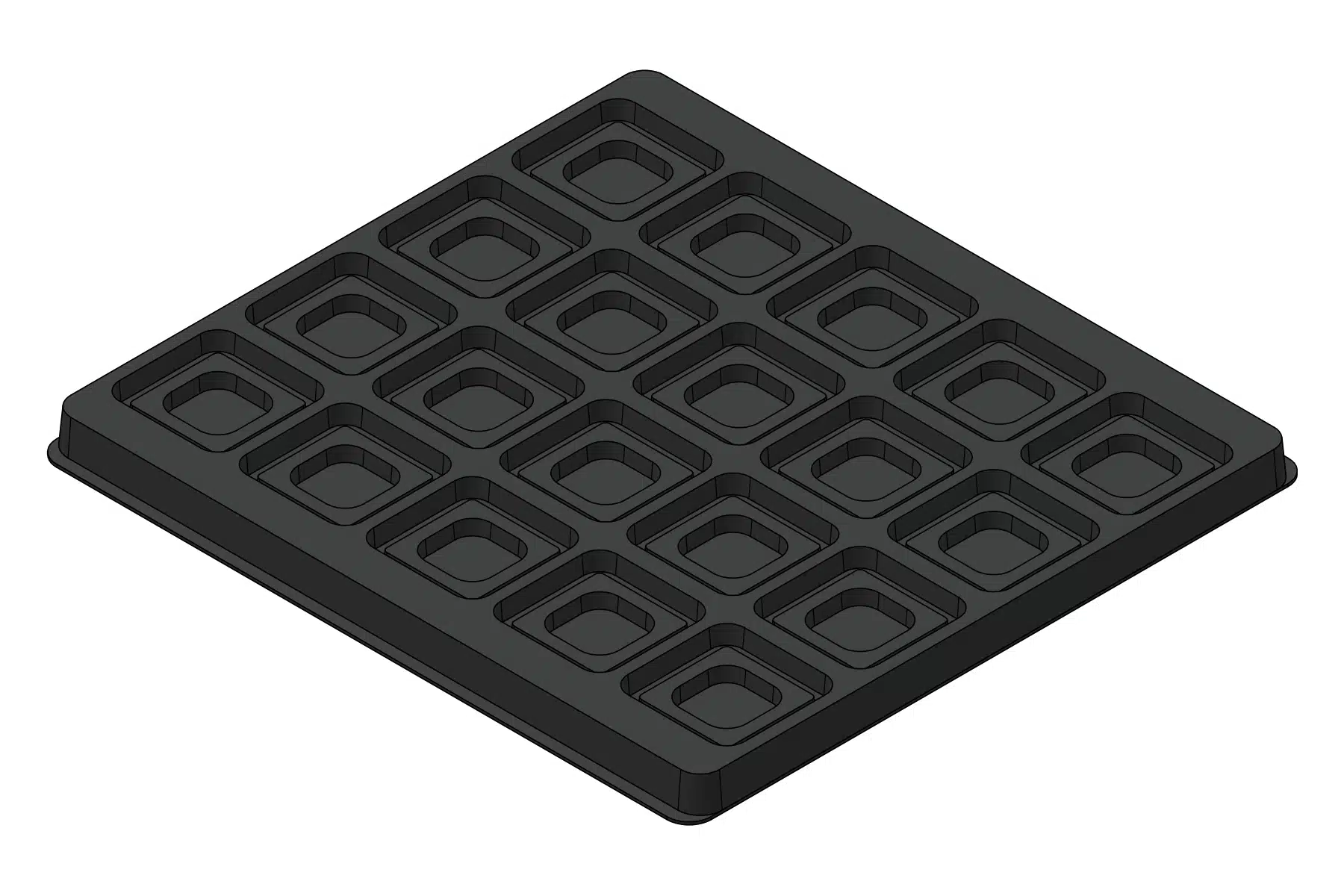

20-Cavity QFP Tray
A 20-cavity tray based on a 24 mm × 24 mm QFP package application, with 1.275″ square cavity references. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77062 when you contact us.
A starting point for your device
The MC-77062 combines a five-by-four layout with square, stepped cavities. The 24 mm package reference and the larger cavity dimensions describe different features, which is why the full device outline is useful when assessing fit.
For QFP devices, the lead span, body outline and lead position can matter more than the nominal package size. Send the complete package drawing so we can review the support ledge and surrounding clearance.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77062 |
|---|---|
| Cavity layout | 20 cavities in a 5 × 4 arrangement |
| Reference application | 24 mm × 24 mm QFP package reference |
| Reference cavity length × width | 1.275″ × 1.275″ Approximately 32.4 × 32.4 mm |
| Reference depth to support ledge | 0.120″ Approximately 3.0 mm |
| Overall footprint | 7.375″ × 7.000″ Approximately 187.3 × 177.8 mm |
| Reference overall height | 0.410″ Approximately 10.4 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

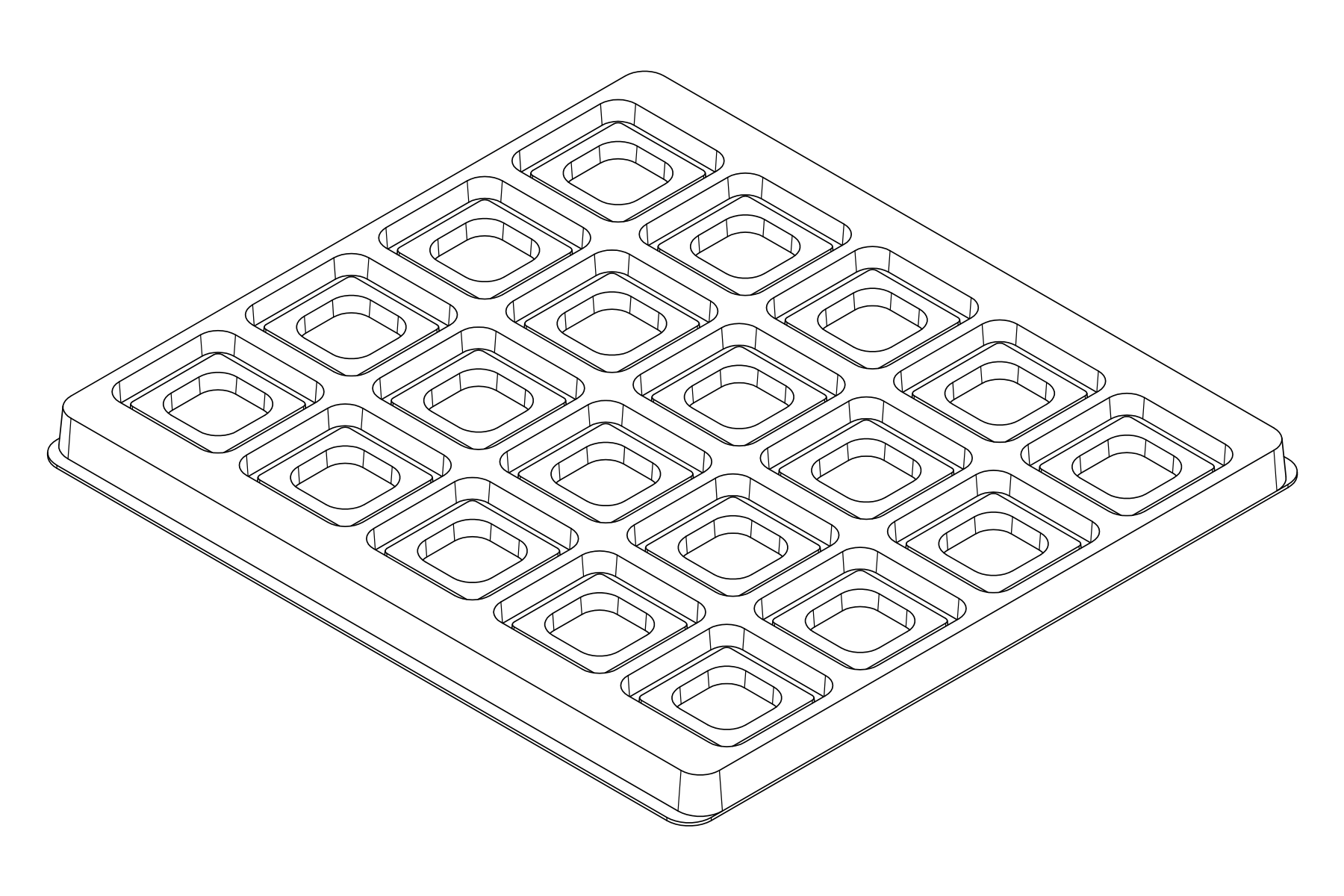

The line view shows the support ledges and deeper areas within each cavity. We can review the intended body contact points alongside clearance for the leads and the loading method.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77062 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77062 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77062 in your inquiry so we can refer to this tray design.
