Thermoformed ESD Trays / MC-77080
Thermoformed semiconductor packaging
MC-77080
24-Cavity Substrate Tray
A shallow, 24-cavity tray based on a 23 mm square substrate application, with 23.10 mm × 23.10 mm cavity references. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77080 when you contact us.
A starting point for your device
The MC-77080 combines square substrate pockets with crossing formed channels in a 176.21 mm × 125.41 mm footprint. Its shallow profile is intended as a starting point for reviewing thin, flat components.
The source application references a 0.8 mm thick substrate. Actual suitability depends on the component thickness, corner shape, edge features and acceptable movement, so a close dimensional match should still be reviewed.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77080 |
|---|---|
| Cavity layout | 24 cavities in a 6 × 4 arrangement |
| Reference application | 23 mm × 23 mm × 0.8 mm substrates |
| Reference cavity length × width | 23.10 × 23.10 mm Approximately 0.909″ × 0.909″ |
| Reference cavity depth | 0.80 mm Approximately 0.031″ |
| Overall footprint | 176.21 × 125.41 mm Approximately 6.937″ × 4.937″ |
| Reference overall height | 5.08 mm Approximately 0.200″ |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

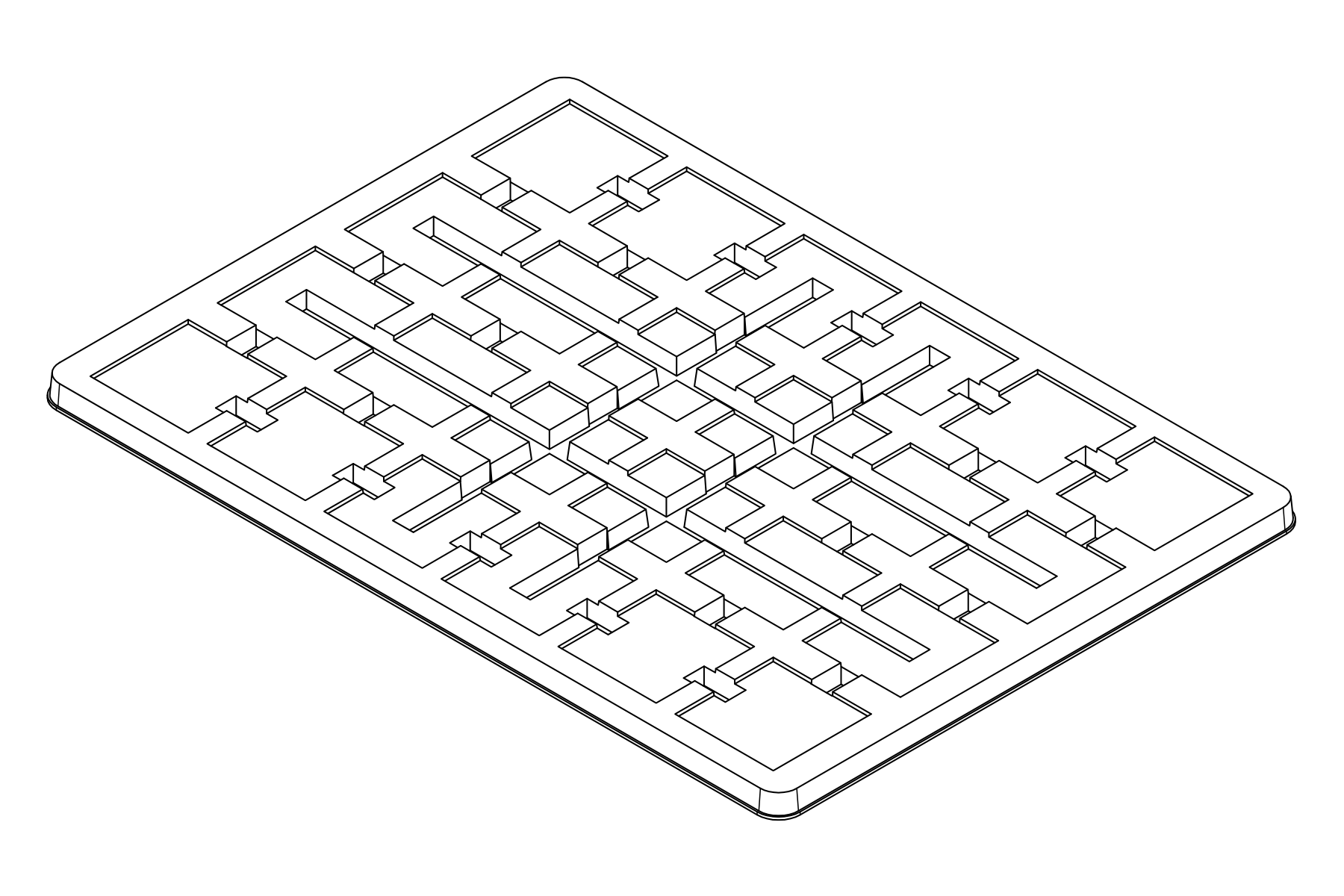

The line view shows the shallow square pockets and intersecting formed features. Send a substrate drawing and any handling or surface-contact requirements so we can assess the complete profile.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77080 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.

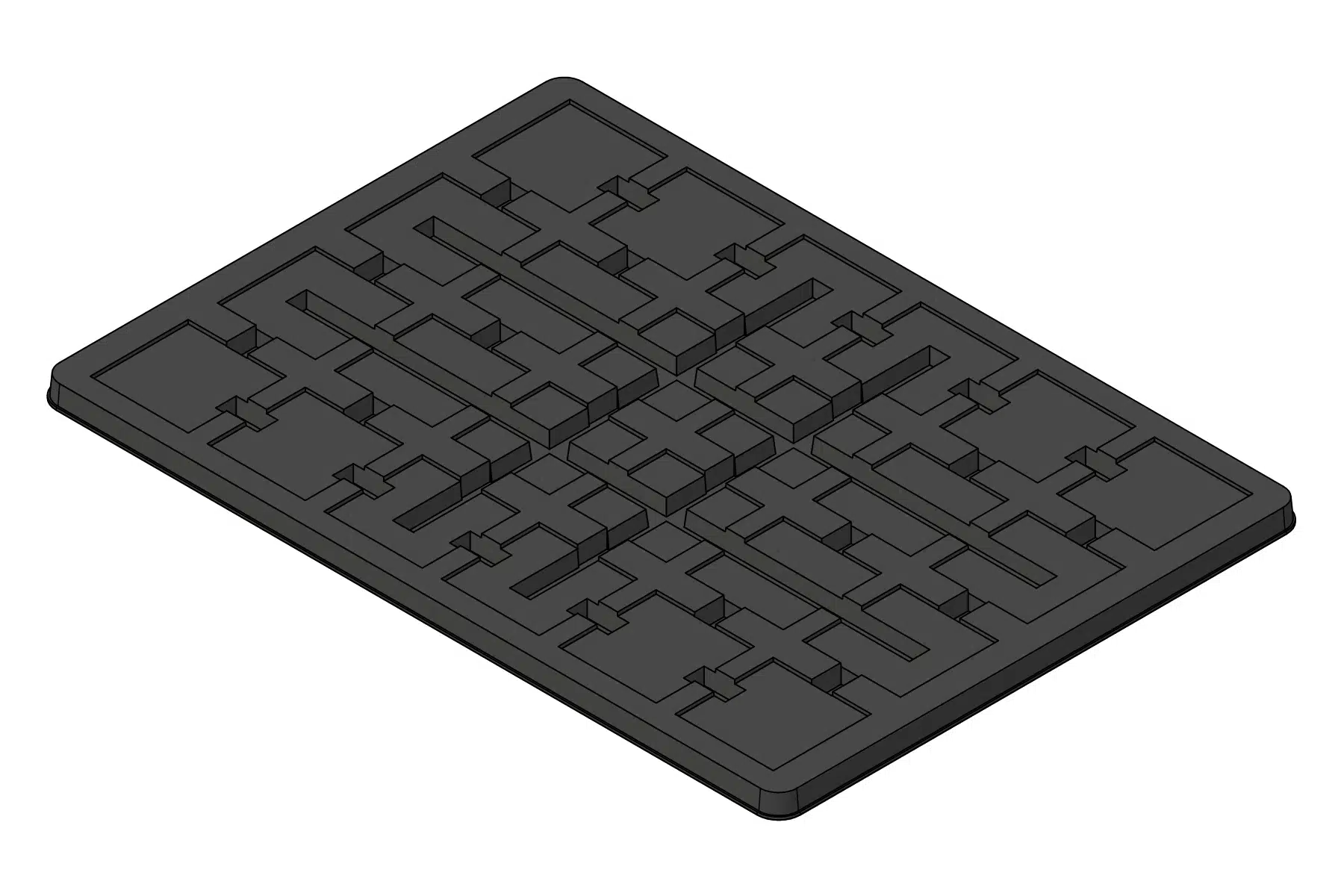

Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77080 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77080 in your inquiry so we can refer to this tray design.
