Thermoformed ESD Trays / MC-77118
Thermoformed semiconductor packaging
MC-77118

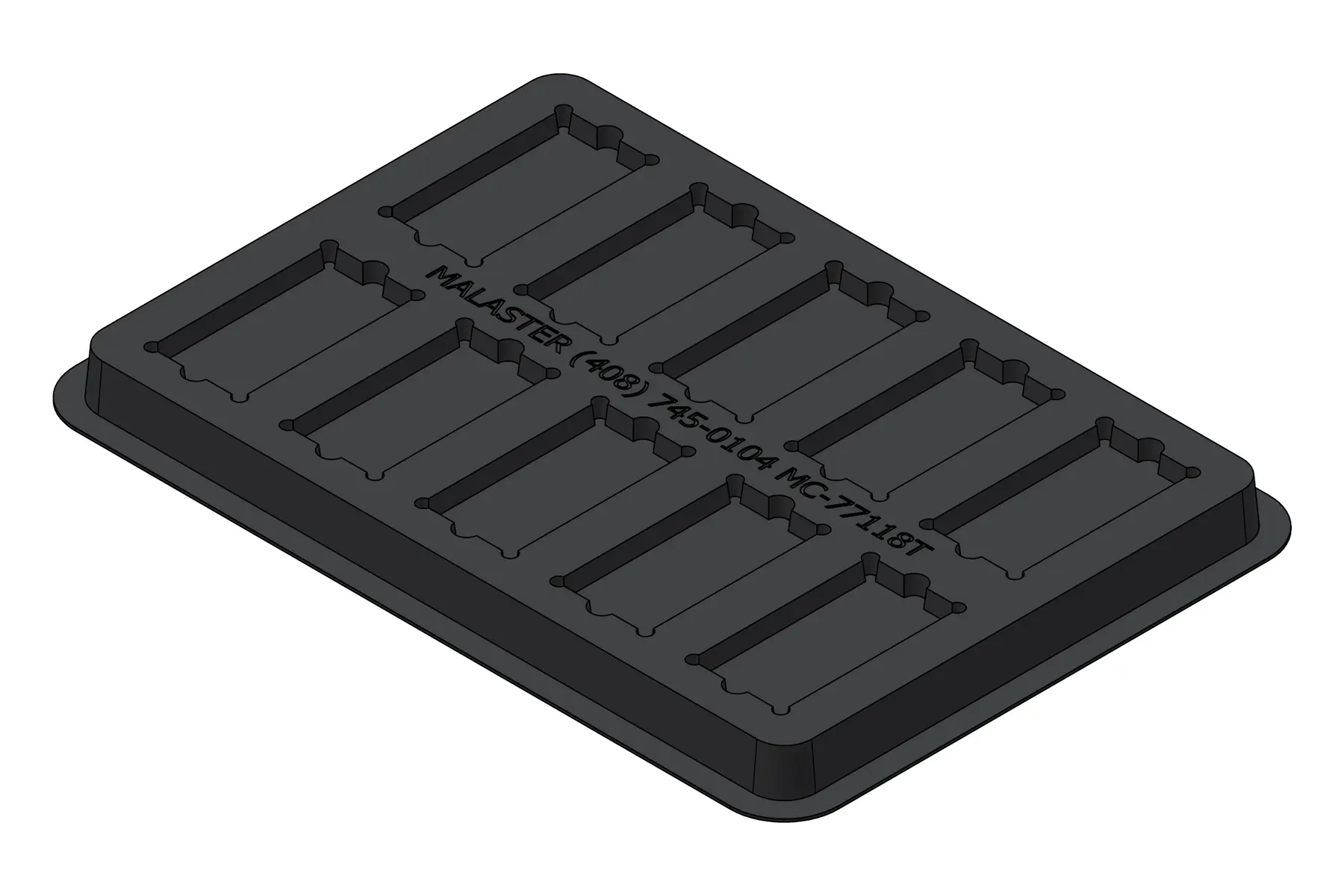

10-Cavity Narrow Substrate Tray
A ten-cavity tray for narrow rectangular substrates, with pocket references of 1.965″ × 0.965″. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77118 when you contact us.
A starting point for your device
The MC-77118 combines a five-by-two cavity arrangement with an 8.500″ × 6.000″ overall footprint. Its pockets are longer and narrower than the MC-77117 reference, even though the two designs share the same overall footprint.
The full substrate outline, thickness and edge projections determine whether the narrower profile is suitable. Share any areas that should remain free of contact, together with handling and removal requirements.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77118 |
|---|---|
| Cavity layout | 10 cavities in a 5 × 2 arrangement |
| Reference application | Narrow rectangular substrates |
| Reference cavity length × width | 1.965″ × 0.965″ Approximately 49.9 × 24.5 mm |
| Reference cavity depth | 0.200″ Approximately 5.1 mm |
| Overall footprint | 8.500″ × 6.000″ Approximately 215.9 × 152.4 mm |
| Reference overall height | 0.530″ Approximately 13.5 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size
The elongated pockets include corner and edge relief features. A similar tray footprint does not establish interchangeability, so the cavity profile remains the key comparison.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77118 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77118 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77118 in your inquiry so we can refer to this tray design.
