Thermoformed ESD Trays / MC-77132
Thermoformed semiconductor packaging
MC-77132

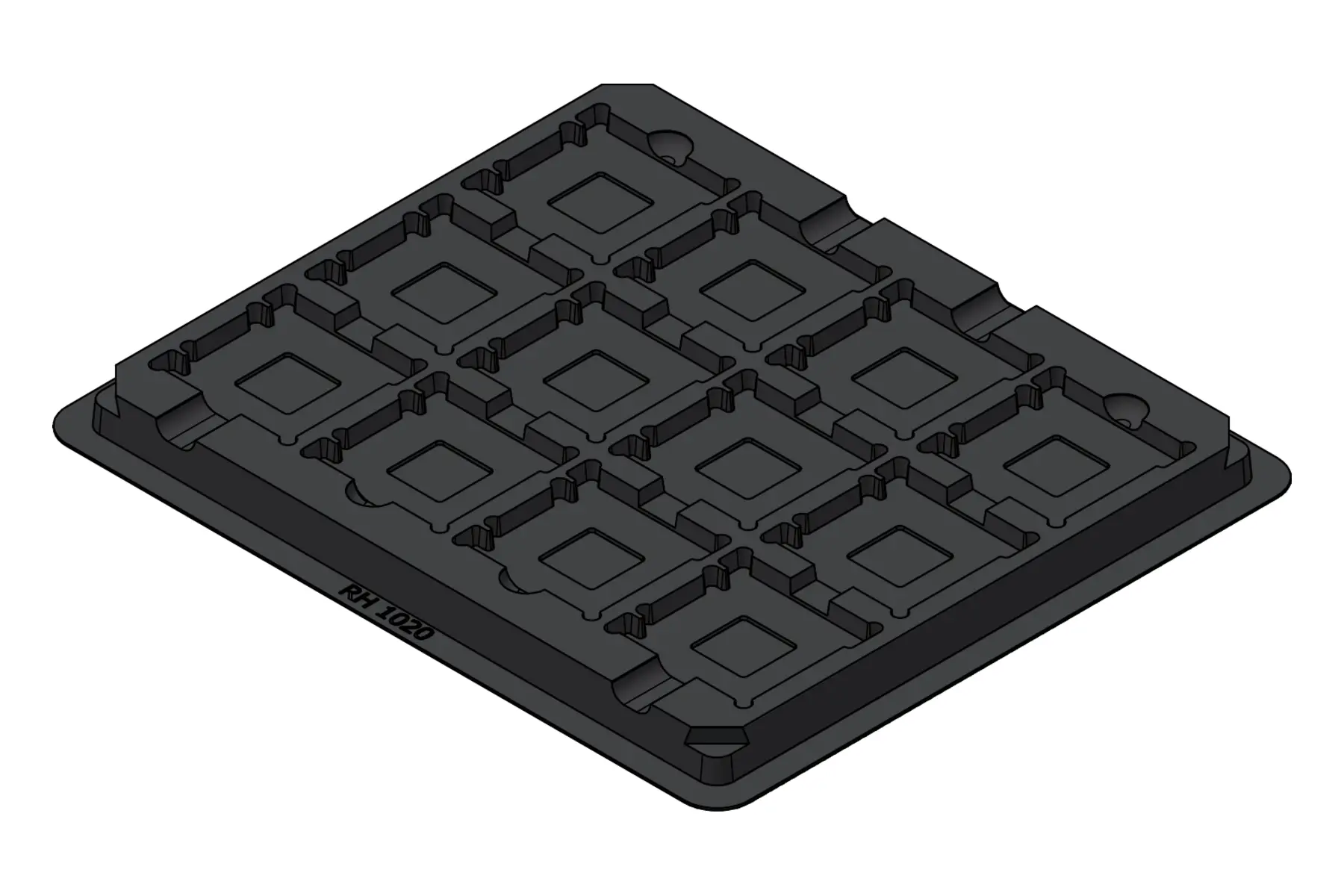

12-Cavity Component Storage Tray
A twelve-cavity storage tray with 2.000″ square reference pockets and a four-by-three arrangement. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77132 when you contact us.
A starting point for your device
The MC-77132 uses twelve shaped pockets within a 10.500″ × 9.125″ footprint. The 0.250″ reference seating depth and formed center and side features provide starting points for a device-specific fit review.
MC-77133 has the same headline dimensions, but it is maintained as a separate design. Share the full component outline and underside features so we can assess the relevant details before recommending a tray.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77132 |
|---|---|
| Cavity layout | 12 cavities in a 4 × 3 arrangement |
| Reference application | Square components requiring shaped pockets |
| Reference cavity length × width | 2.000″ × 2.000″ Approximately 50.8 × 50.8 mm |
| Reference seating depth | 0.250″ Approximately 6.4 mm |
| Overall footprint | 10.500″ × 9.125″ Approximately 266.7 × 231.8 mm |
| Reference overall height | 0.630″ Approximately 16.0 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

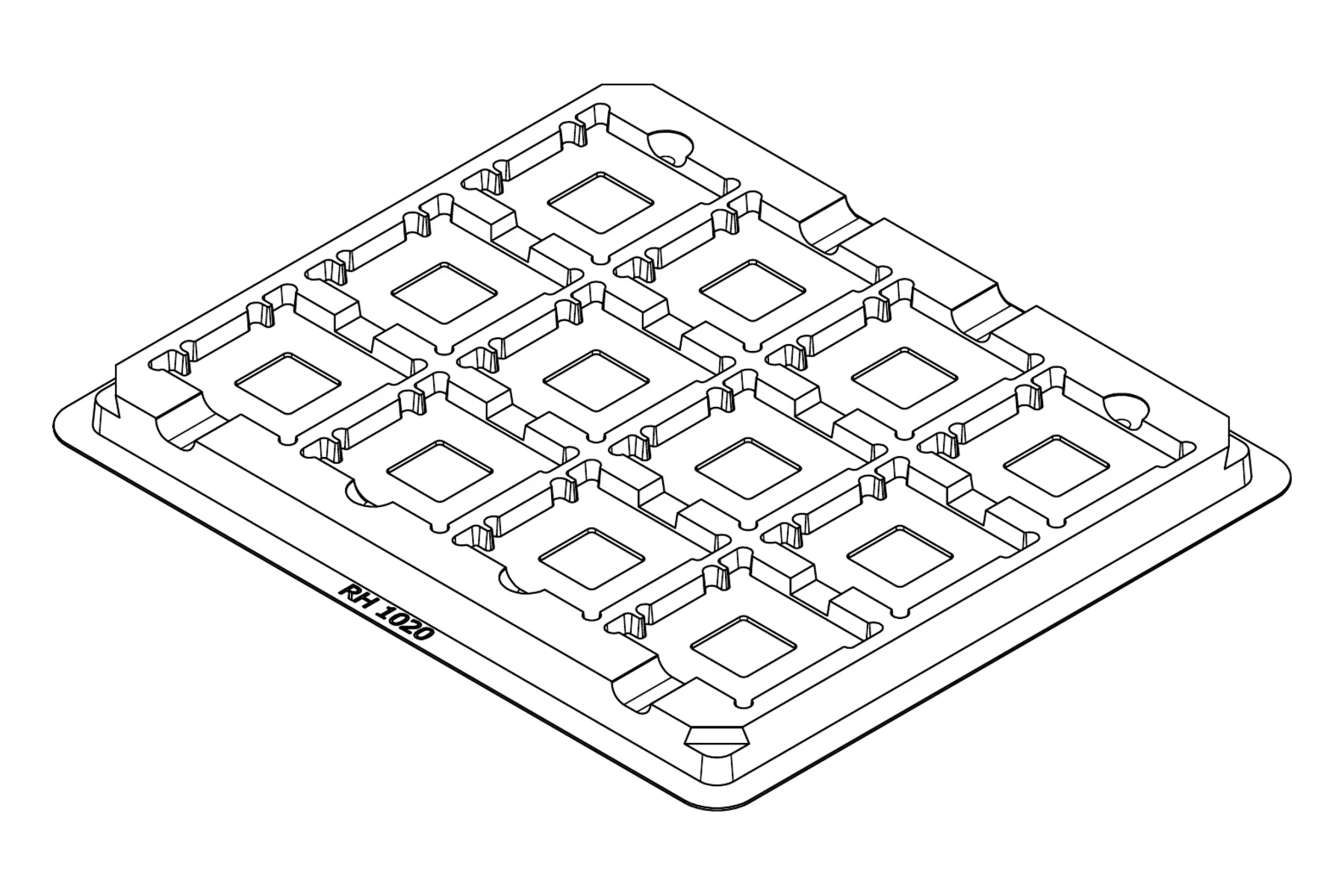

The line view shows square pocket outlines with side relief, center features and access recesses. Their position should be checked against the device's permissible contact areas and removal method.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77132 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77132 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77132 in your inquiry so we can refer to this tray design.
