Thermoformed ESD Trays / MC-77138
Thermoformed semiconductor packaging
MC-77138
MSPT Header Storage Tray

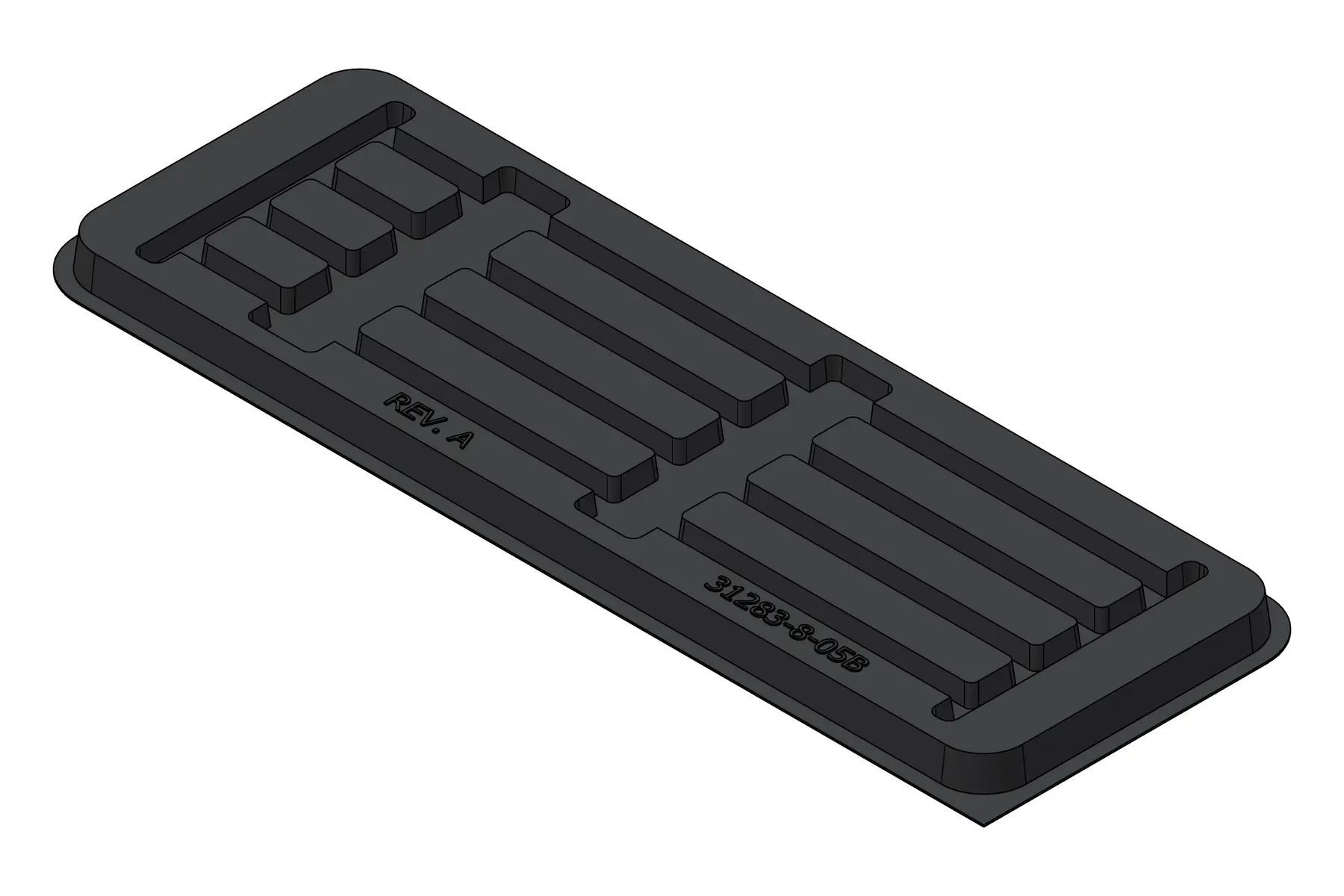

A four-cavity header tray with longitudinal pockets, crosswise relief features and a 17.000″ × 6.000″ overall footprint. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77138 when you contact us.
A starting point for your device
The MC-77138 has four long cavities, each with reference dimensions of 14.440″ × 0.300″ × 0.370″ deep. Crosswise relief and formed support features remain part of the fit review for a header or other elongated component.
For a header, overall length alone is not enough. Send the pin arrangement, body profile, locating features and any underside projections so we can review the interrupted channel geometry and intended support points.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77138 |
|---|---|
| Cavity layout | 4 longitudinal cavities with crosswise relief features |
| Reference application | MSPT headers and similarly configured long components |
| Reference cavity length × width | 14.440″ × 0.300″ Approximately 366.8 × 7.6 mm |
| Reference cavity depth | 0.370″ Approximately 9.4 mm |
| Overall footprint | 17.000″ × 6.000″ Approximately 431.8 × 152.4 mm |
| Reference overall height | 0.600″ Approximately 15.2 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

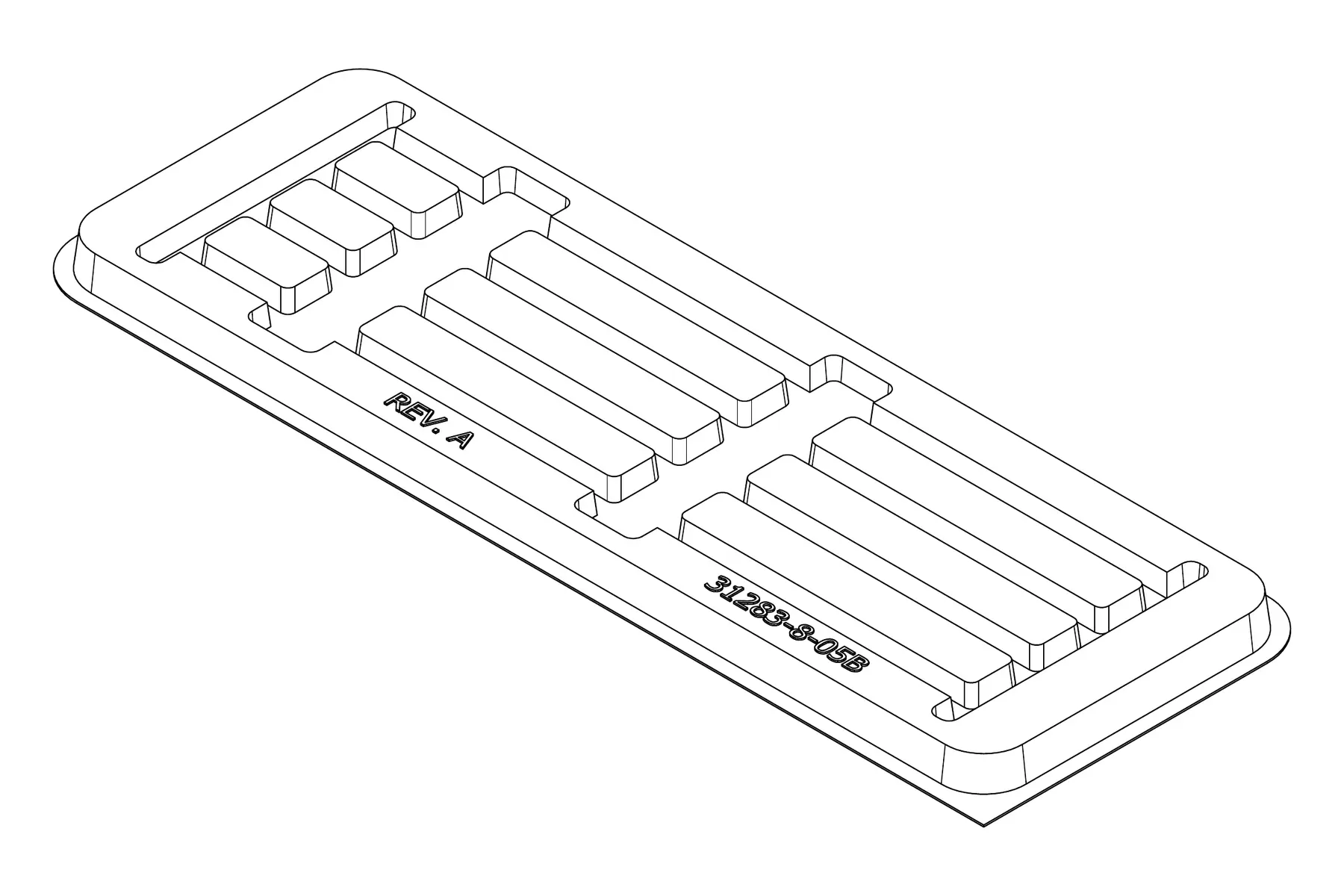

The line view shows the four long cavities and their crosswise relief features. Compare the cavity dimensions with the full header outline, pin arrangement and the locations where the body needs support.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77138 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77138 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77138 in your inquiry so we can refer to this tray design.
