Thermoformed ESD Trays / MC-77210
Thermoformed semiconductor packaging
MC-77210
24-Position BGA Storage Tray

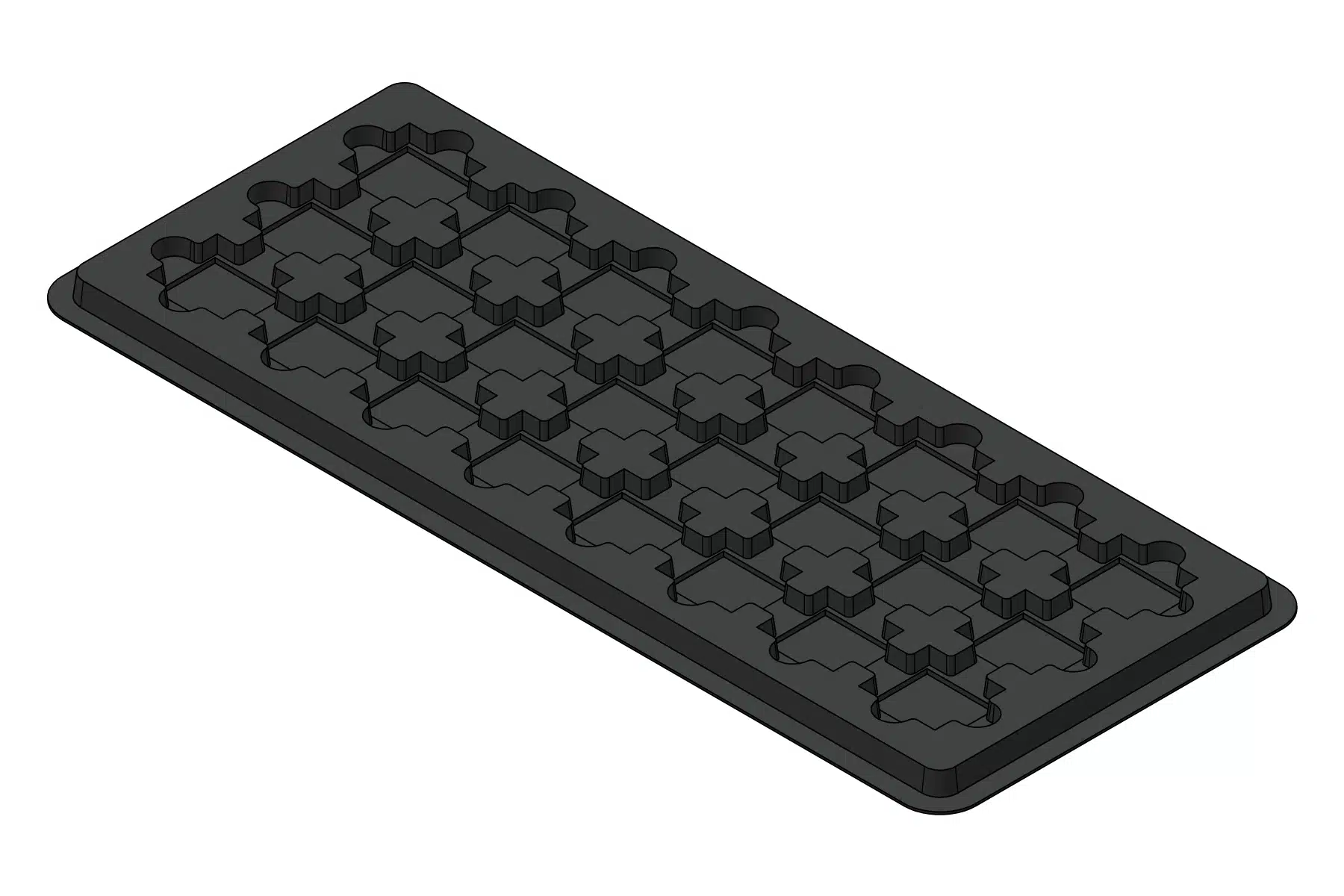

A 24-position BGA tray with formed support and relief features arranged in three rows of eight. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77210 when you contact us.
A starting point for your device
The MC-77210 uses a long 12.688″ × 5.250″ footprint and individual pocket references of 1.024″ × 0.935″. The surrounding relief and seating profile are part of the fit assessment for a BGA package.
For a BGA device, send the body outline, ball pattern, ball height and underside details. We need to consider where the package can safely rest and where contact with the ball array must be avoided.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77210 |
|---|---|
| Cavity layout | 24 device positions in three rows of eight |
| Reference application | 377 BGA reference design |
| Reference cavity length × width | 1.024″ × 0.935″ Approximately 26.0 × 23.7 mm |
| Reference cavity depth | 0.220″ Approximately 5.6 mm |
| Overall footprint | 12.688″ × 5.250″ Approximately 322.3 × 133.3 mm |
| Reference overall height | 0.330″ Approximately 8.4 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

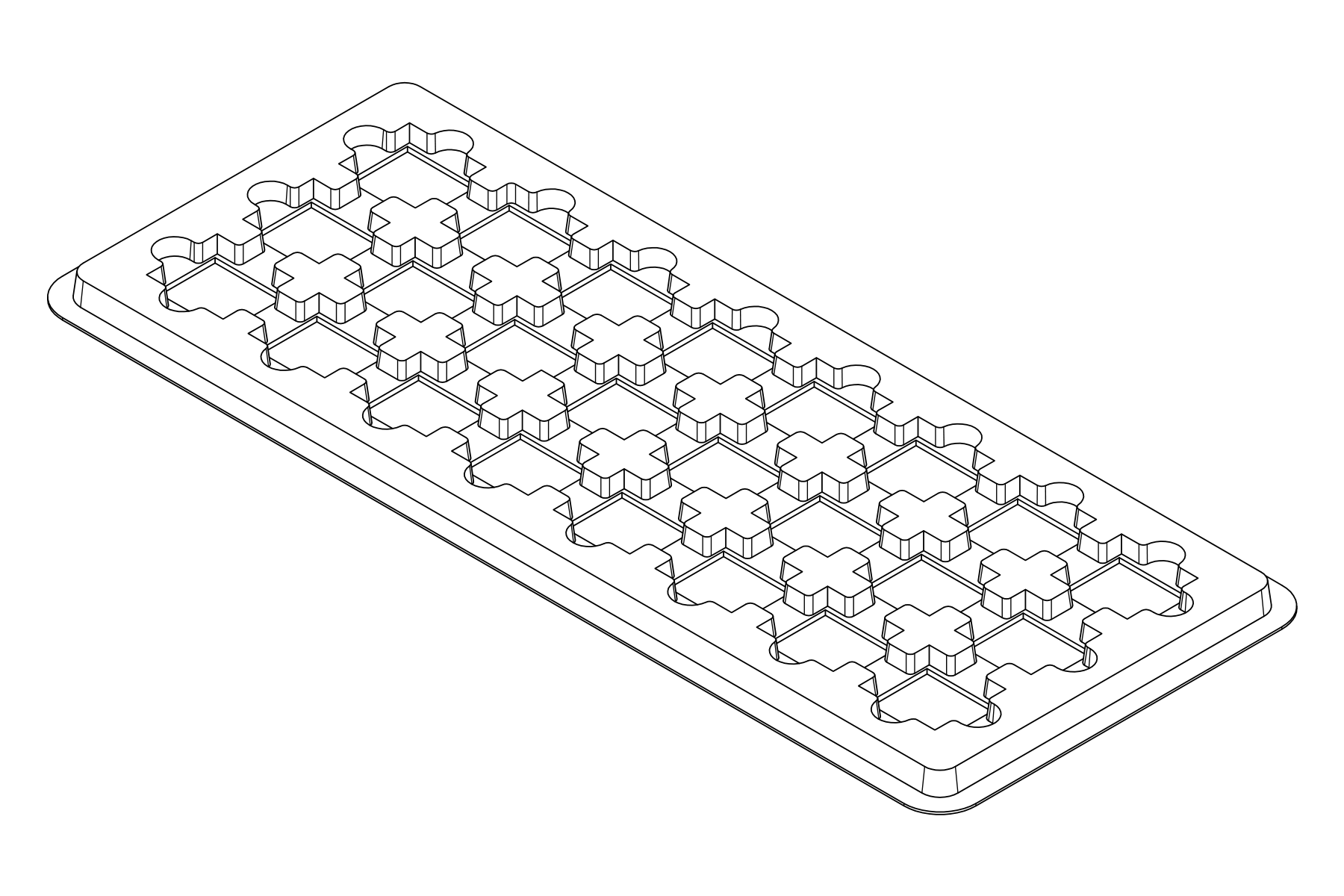

The line view shows the shaped pockets and interconnected relief. Body support and underside clearance should be checked together rather than judging fit from the outer tray size alone.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77210 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77210 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77210 in your inquiry so we can refer to this tray design.
