Thermoformed ESD Trays / MC-77216
Thermoformed semiconductor packaging
MC-77216
10-Cavity Rectangular Component Tray
A ten-cavity component tray with rectangular pocket references of 1.525″ × 1.070″. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77216 when you contact us.
A starting point for your device

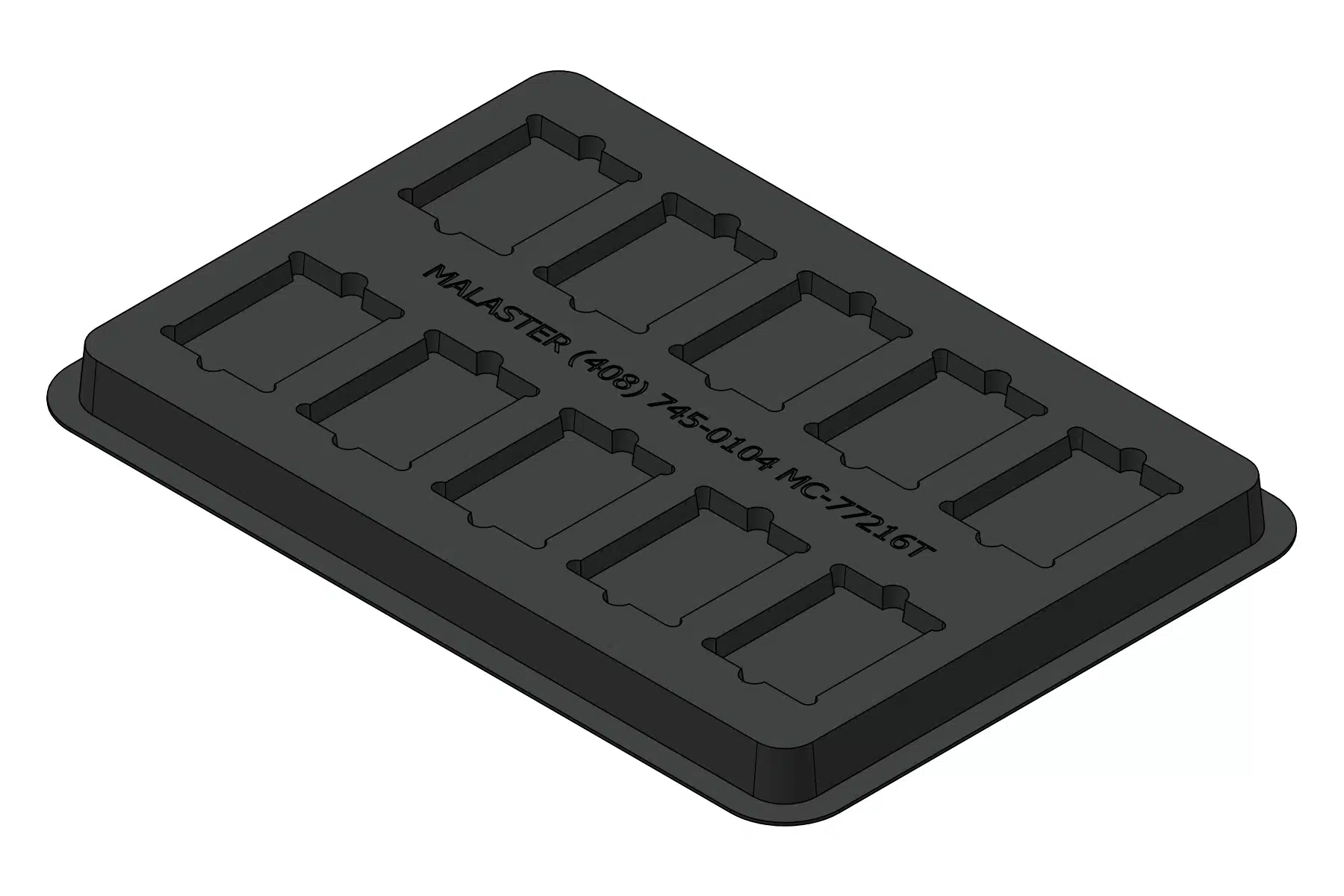

The MC-77216 combines an 8.500″ × 6.000″ footprint with ten rectangular pockets and a clear center band. Its reference dimensions support an initial comparison without treating the opening as a guaranteed maximum device envelope.
Send the full body outline, thickness and any flange or terminal projections. We can compare both the seating area and the access needed to remove the component from a 0.200″ reference-depth pocket.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77216 |
|---|---|
| Cavity layout | 10 cavities in two rows of five |
| Reference application | Rectangular electronic components |
| Reference cavity length × width | 1.525″ × 1.070″ Approximately 38.7 × 27.2 mm |
| Reference cavity depth | 0.200″ Approximately 5.1 mm |
| Overall footprint | 8.500″ × 6.000″ Approximately 215.9 × 152.4 mm |
| Reference overall height | 0.530″ Approximately 13.5 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

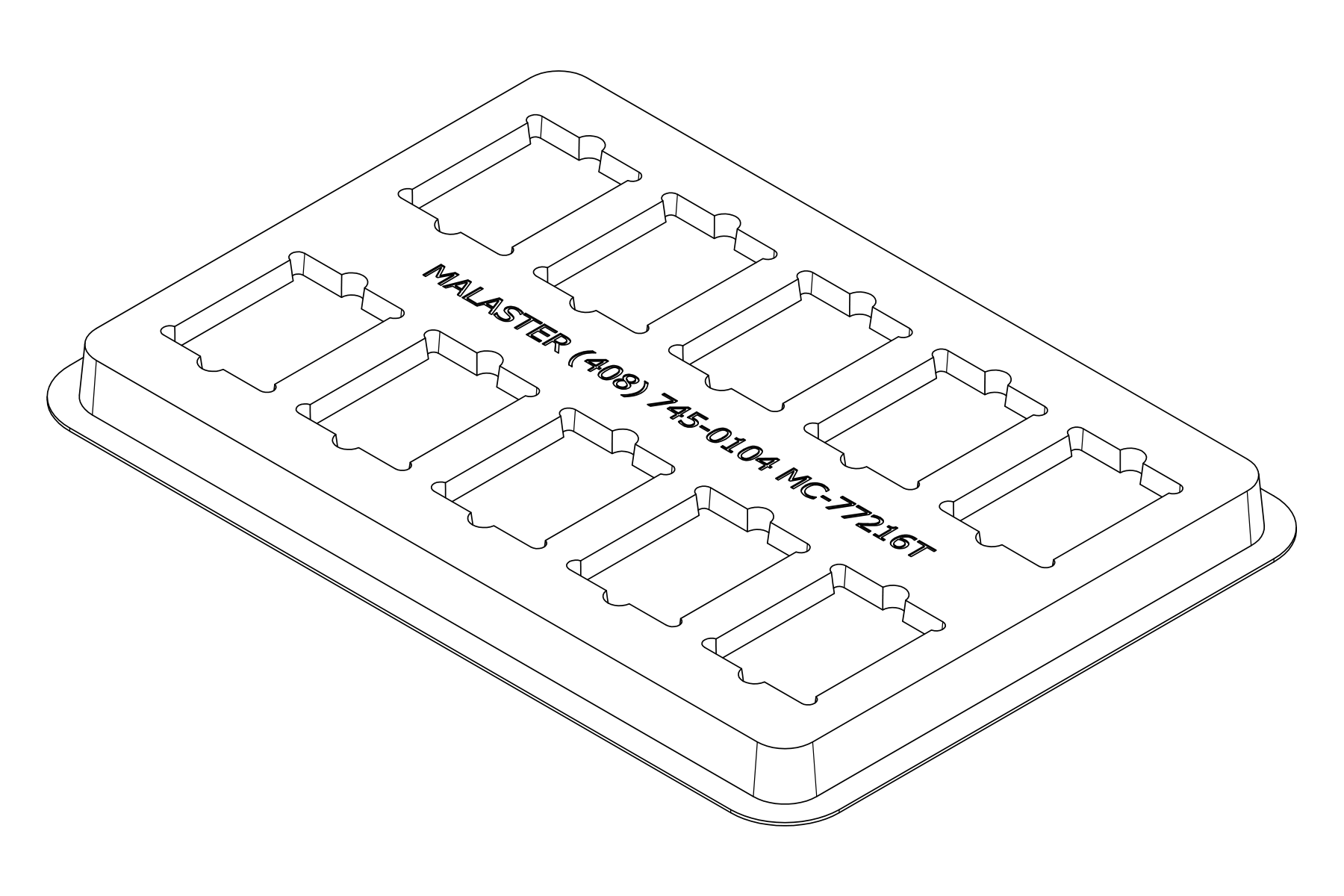

The line view shows rounded corners and small end recesses around each pocket. The local profile should be considered alongside the nominal length and width.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77216 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77216 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77216 in your inquiry so we can refer to this tray design.
