Thermoformed ESD Trays / MC-77219
Thermoformed semiconductor packaging
MC-77219
10-Cavity Long Component Tray
A ten-cavity storage tray with elongated pocket references of 1.900″ × 1.130″. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77219 when you contact us.
A starting point for your device
The MC-77219 provides ten longer rectangular positions in an 8.500″ × 6.000″ tray. The pocket length, 0.200″ reference depth and local end recesses are useful starting points for reviewing an elongated device.
Send the overall component length including any end tabs or connectors. We can consider whether its length, thickness and permissible contact areas suit the seating profile.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77219 |
|---|---|
| Cavity layout | 10 cavities in two rows of five |
| Reference application | Elongated rectangular components and substrates |
| Reference cavity length × width | 1.900″ × 1.130″ Approximately 48.3 × 28.7 mm |
| Reference cavity depth | 0.200″ Approximately 5.1 mm |
| Overall footprint | 8.500″ × 6.000″ Approximately 215.9 × 152.4 mm |
| Reference overall height | 0.530″ Approximately 13.5 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

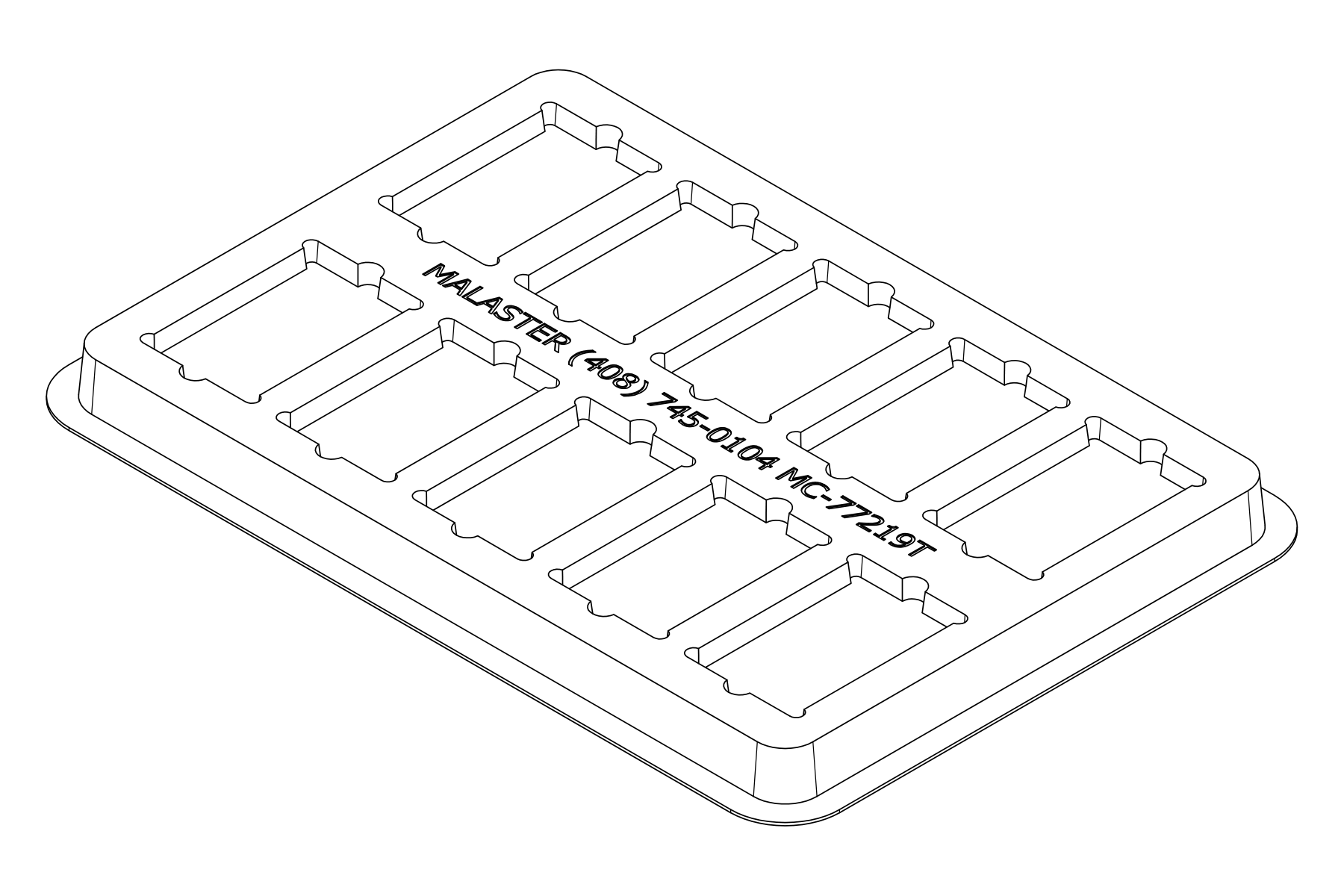

The line view shows the long pocket floors and relief at the ends. Their shape can matter when a connector, lead or pickup feature extends beyond the main body.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application

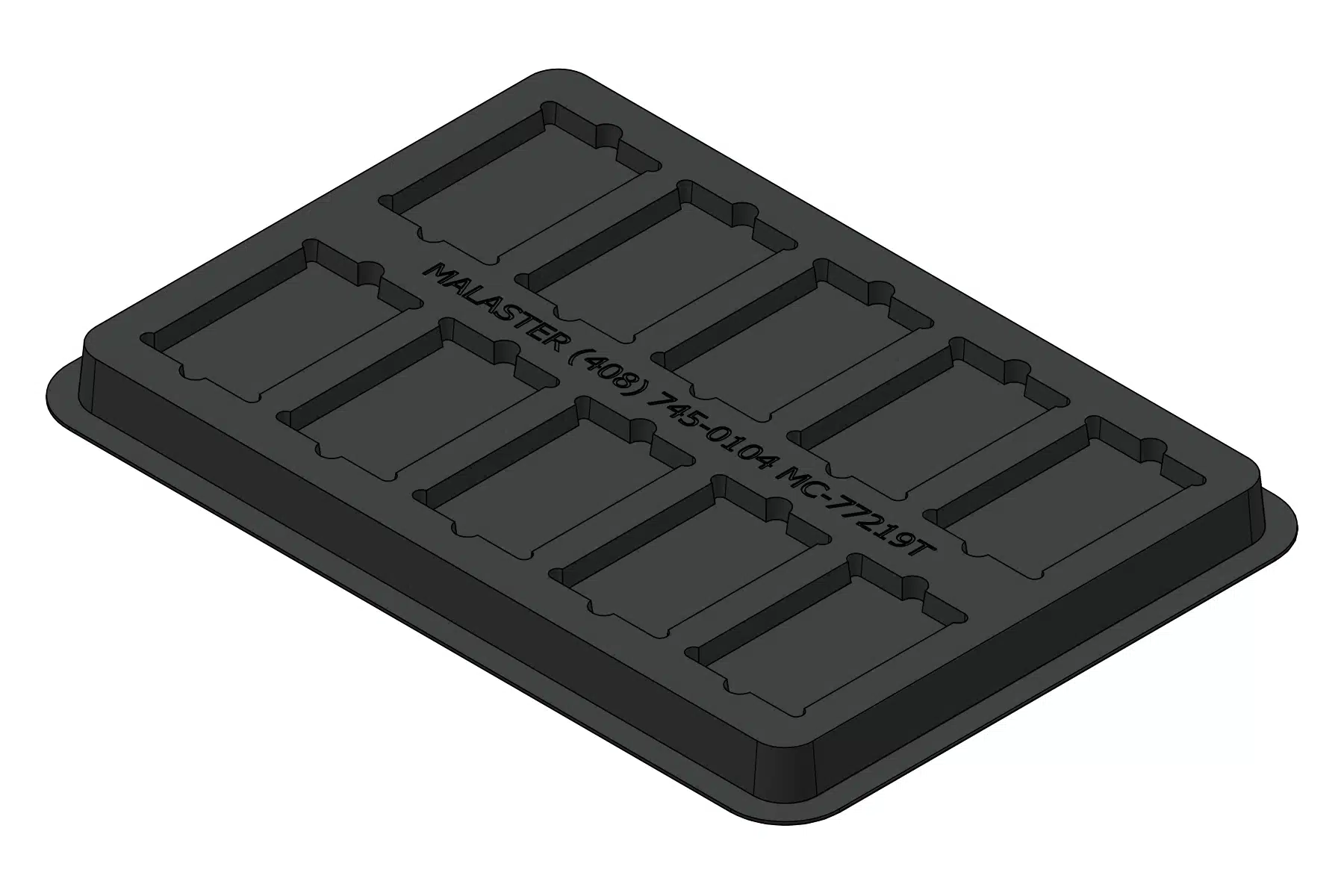

MC-77219 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77219 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77219 in your inquiry so we can refer to this tray design.
