Thermoformed ESD Trays / MC-77264
Thermoformed semiconductor packaging
MC-77264
24-Position BGA Tray

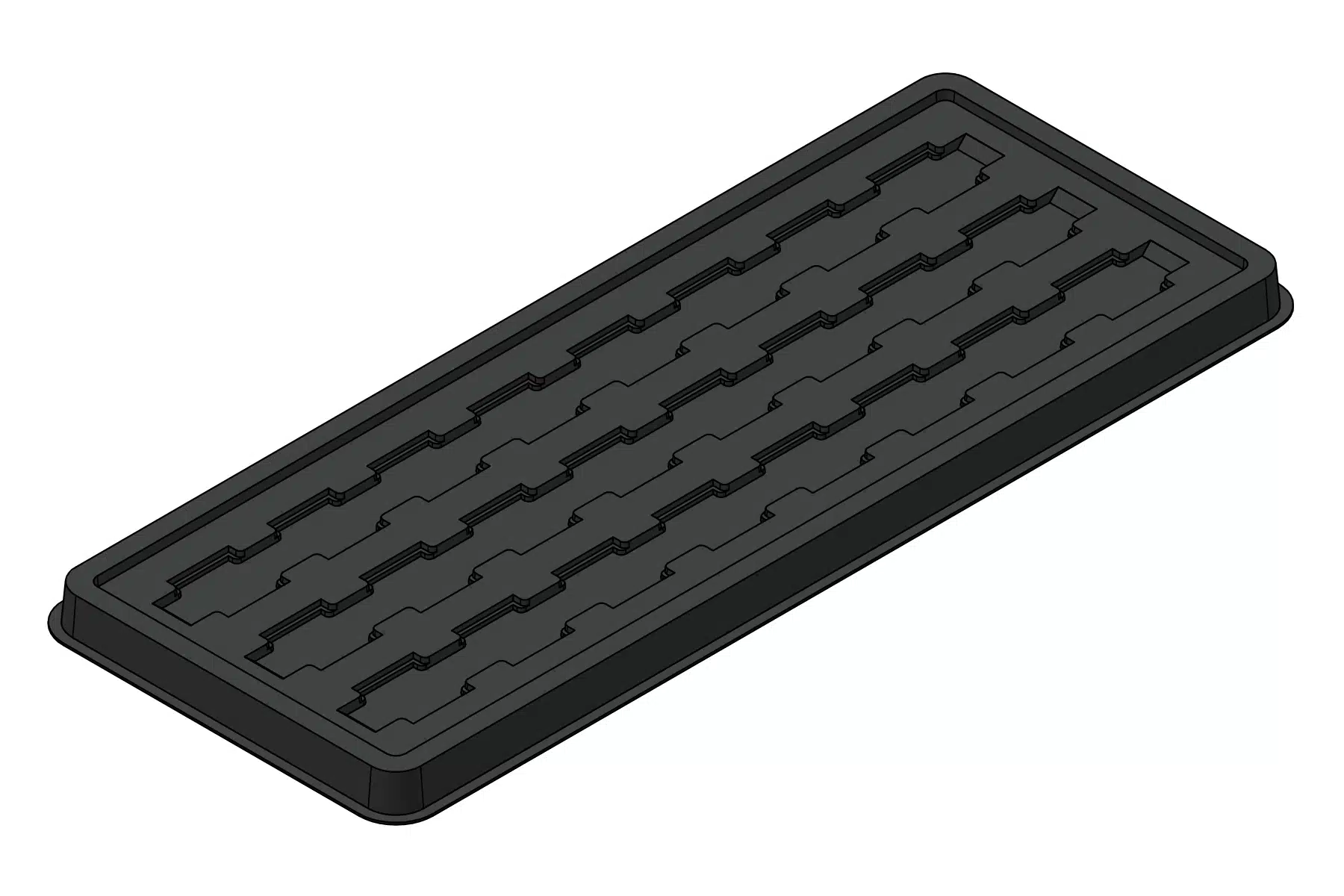

A BGA tray with 24 device positions arranged along three formed channels. Available in black conductive and clear antistatic material.
Does this tray look close to what you need? Send us your device information. Malaster can help review the fit, material choice and requirements for your application.
Discuss This Tray for Your Application
Mention MC-77264 when you contact us.
A starting point for your device
The MC-77264 supports a BGA reference application within a 12.688″ × 5.250″ footprint. The formed profile supports the package body so the solder balls remain suspended clear of the tray. The 0.818″ / 0.829″ outer and 0.727″ / 0.718″ inner profile references describe the support and relief geometry and should be reviewed together with the package drawing.
Send the package body dimensions, ball array outline, ball height and underside drawing. We can assess body support and clearance below the package rather than using one overall cavity number as a fit guarantee.
If your device differs from the reference application, contact us anyway. We can discuss whether this tray, another existing design or a custom packaging solution is worth exploring.
Tray at a glance
| Tray reference | MC-77264 |
|---|---|
| Cavity layout | 24 device positions along three channels, eight positions per channel |
| Reference application | BGA-128 reference design |
| Reference outer pocket profile in plan | 0.818″ × 0.818″ Approximately 20.8 × 20.8 mm |
| Reference inner relief profile in plan | 0.727″ × 0.727″ Approximately 18.5 × 18.5 mm |
| Additional section profile references | Outer profile: 0.829″; inner profile: 0.718″ Approximately 21.1 mm and 18.2 mm |
| Body support and solder-ball clearance | The formed profile supports the package body above the recessed solder-ball area. |
| Overall footprint | 12.688″ × 5.250″ Approximately 322.3 × 133.3 mm |
| Reference overall height | 0.500″ Approximately 12.7 mm |
| Material options | Black conductive Clear antistatic |
Use these reference dimensions for an initial size comparison. Actual fit depends on the device profile, pin clearances and selected material. If your device is close to these dimensions, contact us to review the fit.
Look beyond the overall size

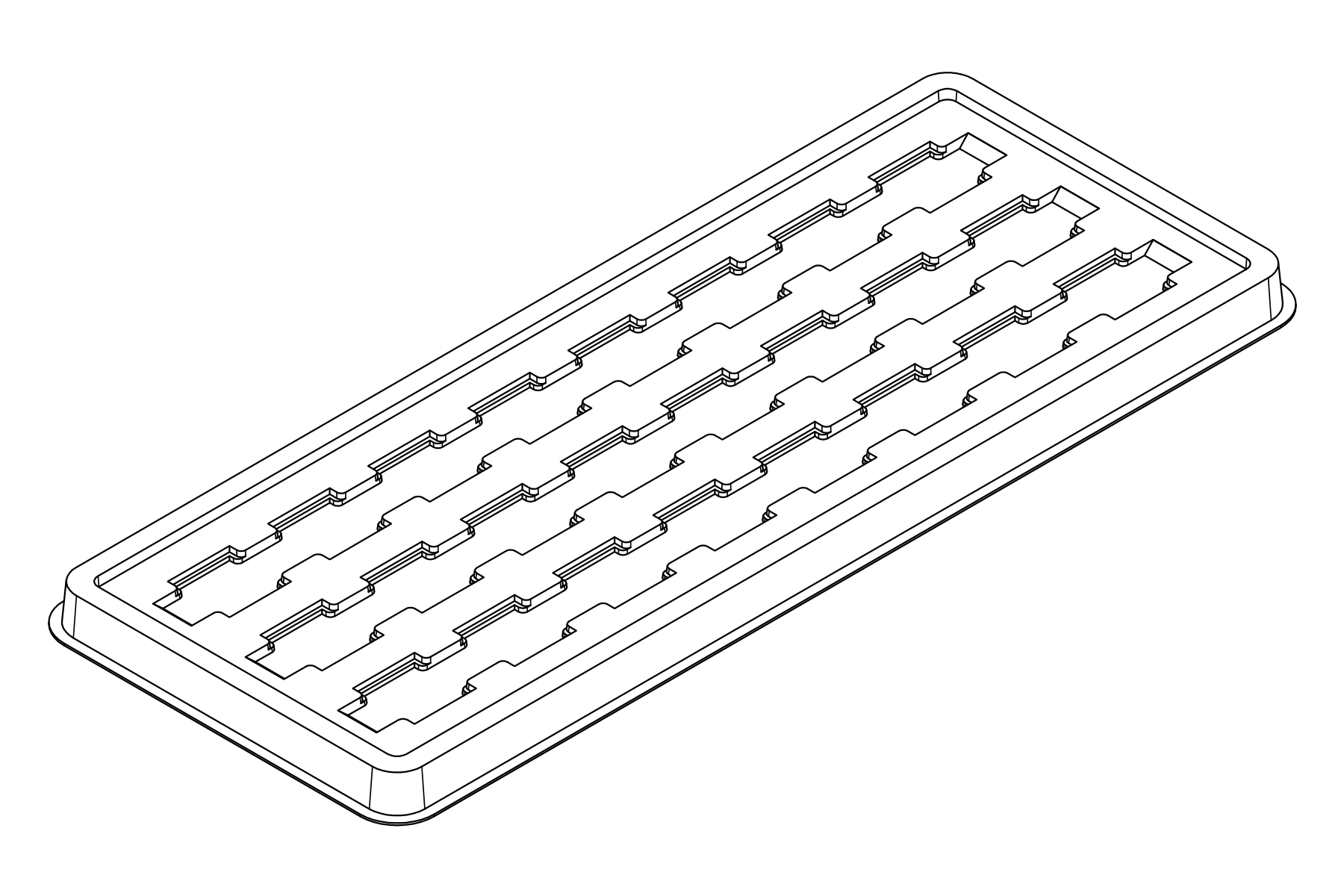

The line view shows three connected channels with repeated positioning features. Each channel contains eight reference device positions; these are not twenty-four fully isolated rectangular cavities.
Tell us how the tray will be used, whether for work-in-process handling, storage or a shipping application. We can then review the tray as part of the complete packaging requirement.
Choose a material for your application
MC-77264 is available in both black conductive and clear antistatic material. Tell us about your ESD requirements, handling environment and any need to see the device through the tray so we can discuss the appropriate option.
Black conductive
An option for applications requiring conductive tray material. Share your material or ESD specifications so we can review the requirements with you.
Clear antistatic
An option when clear material is useful for viewing the device. We can discuss the antistatic material requirements alongside fit and handling.
Could MC-77264 work for your device?
You do not need a complete specification to begin. Send what you have, and we can help identify the details needed to assess the tray and prepare a quotation.
- A device drawing, photograph, package outline or description
- Any known dimensions, pin clearances or handling concerns
- Your material preference or ESD requirements, if known
- Estimated quantities and timing
Please include MC-77264 in your inquiry so we can refer to this tray design.
