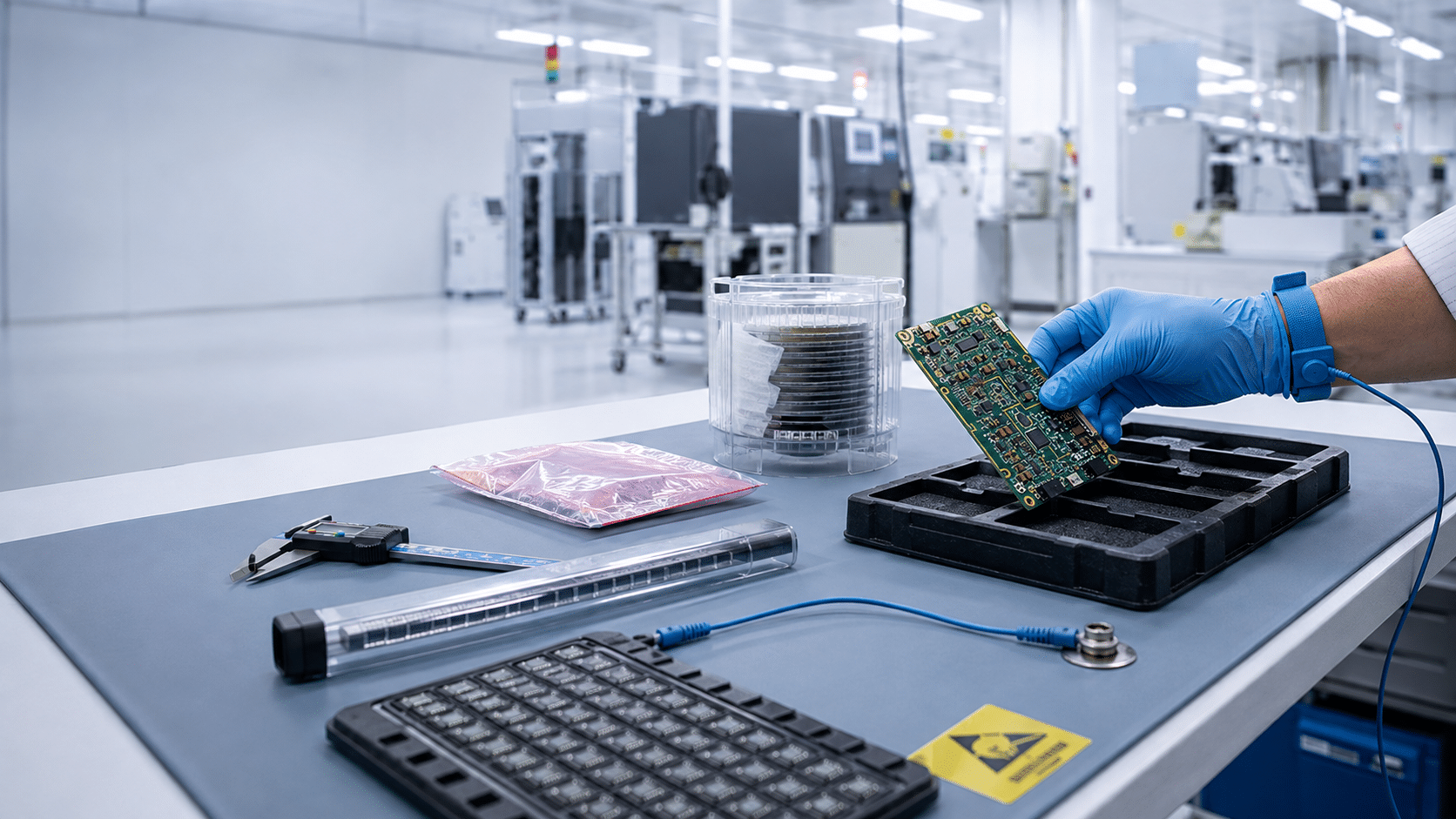

Engineering Handbook Overview
Electrostatic discharge can damage sensitive electronic components during manufacturing, handling, storage, assembly, or transportation, often without producing visible evidence.
Effective ESD protection begins with understanding how static charge develops, how electrical charge moves between materials, why semiconductor devices are vulnerable, and how grounding, shielding, static-control materials, packaging, and handling procedures work together.
This engineering handbook provides a practical yet comprehensive introduction to electrostatic discharge, ESD control, protective packaging, material selection, and packaging-system design.
It is intended to serve as a long-term technical reference for engineers, purchasing teams, manufacturing personnel, quality professionals, and anyone responsible for protecting electrostatic-discharge-sensitive devices throughout manufacturing, storage, transportation, and final use.
Intended Audience
Packaging and manufacturing engineers
Quality and ESD-control professionals
Semiconductor and electronics manufacturers
Purchasing and supply-chain teams
Contract manufacturers and assembly operations
Laboratories, universities, and technical organizations
Core Definition
Electrostatic discharge, commonly abbreviated as ESD, is the sudden transfer of electrical charge between objects at different electrical potentials.
Static charge can accumulate on people, equipment, packaging materials, work surfaces, tools, and electronic components. When a charged object approaches or contacts another object, electrical charge may move rapidly between them.
That movement is an electrostatic discharge event. Some ESD events create a visible spark or noticeable shock, but many occur below the level of human perception. A discharge does not need to be seen, heard, or felt to affect a sensitive semiconductor device.
ESD protection therefore focuses on controlling how charge is generated, accumulated, transferred, dissipated, grounded, or shielded throughout the handling process.
Technical Definition
An ESD event occurs when electrical charge transfers between objects with different electrostatic potentials, either through direct contact or through an ionized path such as a spark.
Static electricity describes an imbalance of electrical charge that remains on or within an object. Electrostatic discharge describes the movement of that stored charge.
A charged object does not necessarily damage a device merely because charge is present. Risk develops when the charge creates an unsafe electrical field or finds a path through a sensitive component.
ESD protection is not simply the elimination of static electricity. It is the controlled management of electrical charge before that charge can pass through or adversely affect a sensitive device.
Charge Generation
Static electricity develops when electrons move between materials, creating an imbalance of electrical charge that remains on an object or surface.
Direct Answer
The most common source of static charge is contact and separation between materials. Normal actions such as walking, removing a component from packaging, separating trays, or sliding materials across a work surface can generate charge.
When two materials touch, electrons may transfer from one surface to the other. When the materials separate, one surface may retain an excess of electrons while the other is left with a deficiency.
Removing an electronic device from a plastic tray, foam insert, bag, or carrier.
Sliding or rubbing creates repeated cycles of contact and separation. Greater movement can increase charge generation, depending on the materials, surface area, force, and surrounding conditions.
Sliding a printed circuit board into a carrier, shipping tube, or protective sleeve.
A charged object can redistribute electrical charge within a nearby conductive object without touching it. This separation of charge is caused by the electric field surrounding the charged object.
Bringing a charged person, tool, container, or work surface near an isolated device.
Charge can move freely across a conductor, but it cannot leave that conductor when the object is electrically isolated. An ungrounded conductive object may therefore retain charge.
An ungrounded metal cart, fixture, tool, rack, or person holding a conductive object.
Influencing Conditions
The same activity does not always produce the same charge level. Charge generation and retention depend on the complete combination of materials, movement, surfaces, and environmental conditions.
Different material pairs have different tendencies to gain or lose electrons during contact and separation.
Repeated contact, rapid separation, stronger force, and sliding movement can affect the resulting charge.
Larger contact areas and differences in cleanliness, texture, or surface treatment can influence charge transfer.
Charge remains longer when an object lacks a suitable path to dissipate or reach a common electrical reference.
Dry conditions often allow charge to remain on surfaces longer. Humidity may affect charge accumulation, but it is not a substitute for controlled ESD procedures.
Materials differ in how quickly charge moves across or through them. Some retain charge while others allow controlled dissipation.
Engineering Note
Conductive materials can still become triboelectrically charged. Conductivity allows charge to move, but the charge still requires an appropriate connection or controlled path before it can leave an isolated conductive object.
Static charge can be generated by ordinary packaging and handling activity. Effective control starts by reducing unnecessary charge generation and preventing charged objects from remaining electrically isolated near sensitive devices.
Device Sensitivity
An electrostatic discharge can send electrical current and energy through microscopic device structures that were not designed to withstand the event.
Direct Answer
ESD can alter or destroy semiconductor junctions, insulating layers, conductive paths, and other internal structures. The resulting failure may appear immediately, intermittently, or later during operation.
Immediate Failure
A catastrophic failure occurs when the ESD event damages the device enough that it no longer performs its intended electrical function.
The component may fail inspection, electrical testing, assembly, or initial operation.
Degraded Device
An ESD event may alter a device without producing an obvious immediate failure. The component can continue operating while its electrical performance, reliability, or expected service life has been reduced.
The problem may appear later during testing, installation, field operation, or exposure to additional electrical or thermal stress.
Temporary Disturbance
An electrostatic event can also interrupt the normal operation of an electronic system without permanently damaging every affected component.
Symptoms may include resets, communication errors, corrupted signals, or intermittent operation.
Device Classification
Device-level testing uses standardized models to represent different types of electrostatic discharge events. The test classification helps determine the control level required during handling, manufacturing, and packaging.
The Human Body Model represents a discharge from a charged person through an electronic device. It is commonly used to classify component sensitivity to personnel-related ESD events.
The Charged Device Model represents a charged device discharging rapidly when one of its connections contacts a conductive object or reference.
Common Misunderstanding
The absence of a visible spark or noticeable shock does not establish that handling was safe. ESD control should be based on device sensitivity, verified procedures, and the applicable control program, not on what an operator can personally detect.
Business and Quality Impact
Damaged devices may increase failures, rework, and scrap.
Degraded components can reduce long-term field performance.
Intermittent or delayed failures may be difficult to reproduce.
Failures can produce delays, returns, analysis costs, and warranty exposure.
ESD susceptibility is a property of the device and the discharge event, not a person’s ability to detect static. Packaging and handling controls should be selected according to known device sensitivity and the full handling environment.
Material Behavior
ESD materials are evaluated according to how they generate, retain, move, dissipate, or shield electrical charge. No single material classification describes every aspect of ESD performance.
Direct Answer
Conductive materials allow charge to move readily. Static-dissipative materials allow charge to move more slowly and in a controlled manner. Insulative materials resist charge movement and may retain charge. Antistatic or low-charging materials are designed to reduce charge generation during contact and separation.
Important Terminology
Conductive and static-dissipative classifications describe electrical resistance and the ability of charge to move across or through a material.
Antistatic commonly describes a material’s tendency to generate less charge when it contacts and separates from another material. A product may be low charging without being conductive, dissipative, or capable of providing discharge shielding.
For that reason, the word “antistatic” by itself does not establish that packaging provides every form of protection required by an electrostatic-sensitive device.
Conductive materials allow electrical charge to move readily across their surfaces or through their volume. When properly connected to a common electrical reference or ground, they can allow accumulated charge to leave the material.
Rapid charge movement and equalization of electrical potential.
Carbon-loaded containers, conductive foam, conductive corrugated packaging, and certain black conductive plastics.
Static-dissipative materials permit electrical charge to move across or through the material at a more controlled rate than highly conductive materials.
Controlled movement and reduction of accumulated charge.
Certain ESD foams, molded trays, work surfaces, coated packaging, component carriers, and static-dissipative plastics.
Insulative materials strongly resist the movement of electrical charge. Charge may remain concentrated on the surface or in a localized area rather than spreading or dissipating readily.
Restricted charge movement and the potential for charge retention.
Untreated plastic films, conventional foam, adhesive tape, ordinary plastic containers, and many common packing materials.
Antistatic or low-charging materials are intended to reduce the amount of charge generated when materials contact and separate. This is a charging characteristic, not a complete resistance classification.
Reduced triboelectric charge generation during handling and movement.
Pink antistatic polyethylene bags, treated films, low-charging foam, and packaging containing temporary or permanent antistatic additives.
Quick Comparison
These properties answer different engineering questions. A suitable ESD packaging system may require more than one property at the same time.
| Property | Primary Question | What It Indicates | What It Does Not Prove |
|---|---|---|---|
| Conductive | Can charge move readily? | Charge can travel rapidly across or through the material. | That the object is grounded, low charging, or shielding. |
| Static-dissipative | Can charge move in a controlled manner? | Charge movement is slower and more controlled than in a highly conductive material. | That the material is low charging or provides discharge shielding. |
| Insulative | Does the material resist charge movement? | Charge may remain localized and difficult to remove through grounding. | That the material will always generate high charge. |
| Antistatic / low charging | How much charge is generated during contact and separation? | The material is intended to reduce triboelectric charging. | A specific resistance classification or shielding capability. |
| Discharge shielding | Can the package reduce energy reaching its contents? | The packaging system limits the effect of an external discharge on the protected item. | That every layer of the package has the same resistance or charging behavior. |
Measurement Context
Resistance classifications are meaningful only when the measurement method and material construction are understood.
Surface resistance evaluates opposition to electrical current traveling across the surface of a material between specified electrodes.
Volume resistance evaluates opposition to electrical current traveling through the thickness or body of a material.
Resistance to ground evaluates the electrical path from an item or surface to a defined grounding point or common reference.
Temperature, humidity, conditioning time, electrode design, applied voltage, material thickness, and test method can influence measured results.
Packaging Application
Selecting ESD packaging requires matching the material and package performance to the device, handling environment, and expected hazards.
Determine the known ESD sensitivity and any customer or manufacturer requirements.
Evaluate whether the material will directly contact leads, pads, circuitry, wafers, assemblies, or finished devices.
Consider whether the packaging will remain inside a controlled area or travel through uncontrolled environments without grounding.
Determine whether the item requires a package with discharge shielding rather than only low-charging or dissipative properties.
ESD performance must work alongside cushioning, retention, cleanliness, dimensional control, and physical protection.
Account for humidity, temperature, storage time, reuse, abrasion, contamination, and handling throughout the supply chain.
Common Mistake
Do not select an ESD package solely because it is black, pink, marked with an ESD symbol, or marketed as “antistatic.” Color and labeling may help identify a product, but verified material properties and package performance determine whether it is appropriate for the application.
Engineering Note
Published resistance ranges are classification tools, not universal pass/fail limits for every ESD-control product. Packaging materials, work surfaces, flooring, garments, and other control items may be subject to different product standards, test methods, and performance limits.
Conductive, static-dissipative, insulative, low-charging, and discharge shielding describe different material or package behaviors. Effective ESD packaging is selected by identifying which behaviors the application requires rather than relying on a single label.
Charge-Control Functions
Grounding, controlled dissipation, and discharge shielding address different parts of the ESD problem. A complete protection system may require all three functions.
Direct Answer
Grounding connects conductive or dissipative items to a common electrical reference. Dissipation controls how quickly charge moves toward electrical equilibrium. Shielding limits the energy or electric-field effects that can reach a protected device from outside the package.
Grounding provides an intentional electrical path that allows charge on a conductive or dissipative object to move toward a common reference.
A technician, work surface, conductive tool, and equipment frame are connected to the designated common-point ground.
Dissipation allows charge to move across or through a material at a controlled rate rather than remaining localized or moving abruptly.
A static-dissipative tray or foam insert allows charge to move away from the contact area instead of remaining concentrated beside the device.
Discharge shielding is a property of the completed package structure that reduces the energy reaching an enclosed electrostatic-sensitive item during an external ESD event.
A properly closed static-shielding bag or engineered conductive container surrounds the sensitive device with a protective structure.
Functional Comparison
Selecting only one function may leave another ESD hazard uncontrolled. The correct combination depends on where the package is used and what the sensitive item may encounter.
| Control Function | Primary Purpose | Requires Ground? | Protects From External Discharge? | Typical Application |
|---|---|---|---|---|
| Grounding | Provides a path for charge to leave a person, surface, tool, or conductive object. | Yes, or connection to an established common electrical reference. | Not by itself. | Personnel, work surfaces, carts, equipment, and fixtures within an ESD Protected Area. |
| Dissipation | Controls the rate at which charge moves and equalizes. | A destination or reference is generally needed for full neutralization. | Not necessarily. | Trays, foams, carriers, work surfaces, and materials in direct contact with devices. |
| Shielding | Reduces the energy or field effect reaching the enclosed item. | Not always during transport, depending on package design. | Yes, when the complete package is designed and verified for that function. | Shipping, storage, or movement outside an ESD Protected Area. |
| Low charging | Reduces charge generation during contact and separation. | No, because it addresses charge generation rather than removal. | Not by itself. | Films, foams, bags, trays, and contact surfaces used near sensitive items. |
Grounding Principle
The practical objective of an ESD grounding system is to keep personnel, work surfaces, tools, equipment, and other conductive items at substantially the same electrical potential.
When conductive items share a verified common reference, voltage differences are reduced and the likelihood of a discharge between those items is also reduced.
Merely placing ESD-control items near one another does not establish bonding. Electrical continuity and grounding connections must be installed, maintained, and verified according to the organization’s ESD-control plan.
Packaging Environment
An ESD Protected Area provides controlled grounding, materials, procedures, and personnel practices. During shipping or uncontrolled storage, those protections may no longer be present.
Within an ESD Protected Area, grounded personnel and controlled work surfaces provide part of the protection system.
Outside an ESD Protected Area, the device may encounter charged personnel, ordinary packaging, vehicles, handling equipment, and uncontrolled environmental conditions.
Package Integrity
The shielding layer or enclosure must surround the protected item as intended by the package design.
Bags, containers, tubes, or boxes must be closed using the method specified for the package.
Sensitive items should contact materials appropriate for their electrical and physical requirements.
Tears, punctures, worn coatings, broken closures, contamination, and abrasion may change package performance.
Common Mistake
Do not assume that grounding a package makes it discharge shielding, or that a shielding package eliminates the need for proper grounding inside an ESD Protected Area. The functions complement one another but are not interchangeable.
Engineering Note
Discharge shielding is evaluated as a package or package structure. Layer arrangement, electrical continuity, spacing, closure, geometry, and construction can all influence the energy reaching the protected contents.
Grounding removes charge from connected conductive objects, dissipation controls the rate of charge movement, and shielding protects enclosed items from external discharge energy. Packaging should provide the combination required by the device and the environment in which it will be handled.
Measurement and Verification
Electrical resistance measurements help characterize how charge can move across a surface, through a material, or from an item to a common electrical reference. The reported number is meaningful only when the test configuration and conditions are also understood.
Direct Answer
ESD materials may be evaluated using surface resistance, volume resistance, point-to-point resistance, or resistance-to-ground measurements. Other tests, including charge-generation, charge-decay, and discharge-shielding evaluations, may be needed because resistance alone does not describe every ESD property.
Measurement Purpose
A resistance test applies a defined voltage through a specified electrode arrangement and measures opposition to electrical current. Depending on the setup, the test can characterize the material itself, the electrical path across a product, or the connection between an installed control item and ground.
The result does not automatically establish low-charging behavior, charge-decay time, discharge shielding, mechanical durability, or continued performance after aging and reuse. Those characteristics may require separate evaluations.
Surface resistance measures opposition to electrical current moving across the surface of a material between specified electrodes.
How readily can charge move laterally across this surface?
Evaluating films, foam surfaces, trays, containers, work mats, and other relatively flat materials.
Volume resistance measures opposition to electrical current moving through the body or thickness of a material between opposing electrodes.
How readily can charge move through the material rather than only across its outer surface?
Evaluating foam, molded plastic, sheets, cushioning, and other materials where through-thickness behavior matters.
Point-to-point resistance measures the electrical path between two locations on the same surface, product, or installed control item.
Is there an electrically continuous path across the area being evaluated?
Checking electrical continuity across a mat, cart, shelf, bench, tray, or other installed item.
Resistance to ground measures the electrical path from an item, surface, or system to its designated grounding point or common reference.
Can charge move from this installed control item to the intended grounding system?
Verifying grounded work surfaces, carts, equipment, storage systems, personnel-grounding devices, or other control items.
Terminology Distinction
Resistance is the opposition to current measured through a specific specimen, product, or path using a defined electrode arrangement. It is normally reported in ohms.
The result can be affected by specimen dimensions, electrode placement, material thickness, surface condition, and measurement direction.
Resistivity is a normalized material property intended to account for specimen geometry. Surface resistivity and volume resistivity use different expressions and should not be substituted casually for measured resistance.
Product specifications and standards may call for resistance, resistivity, or another property. The requested quantity should be reported exactly as defined by the applicable method.
Test Configuration
Resistance testing is sensitive to both the material and the way the measurement is performed. Comparing numbers from different methods can lead to an incorrect conclusion.
Electrode shape, contact area, weight, spacing, and contact pressure influence the measured electrical path.
Some materials respond differently at different applied voltages. The prescribed voltage should follow the applicable test method.
A surface measurement, through-thickness measurement, and path to ground evaluate different electrical behaviors.
Thickness, molded ribs, cells, layers, coatings, texture, and specimen size can change the effective current path.
Contamination, fingerprints, moisture, dust, abrasion, oxidation, and cleaning residues may affect the result.
Environmental conditioning can change the electrical behavior of polymers, coatings, foam, paper-based materials, and topical antistatic treatments.
Materials may require a specified period at controlled temperature and relative humidity before qualification testing begins.
The meter must be suitable for the expected resistance range, and readings may require time to stabilize before being recorded.
Environmental Conditioning
Many polymeric and treated ESD materials become more resistive under dry conditions. Qualification testing may therefore require specimens to be conditioned and tested at a defined low relative humidity and temperature.
Recent EOS/ESD standards guidance identifies qualification at the most critical low-humidity condition as sufficient for affected ESD-control items, rather than requiring an additional moderate-humidity qualification condition. The exact conditioning requirement must still be taken from the standard and test method that applies to the product.
Beyond Resistance
Resistance measurements classify charge movement, but they do not fully describe how a material generates charge or how a completed package responds to an external discharge.
Evaluates the voltage or charge generated when materials contact and separate under defined conditions.
Why it mattersA material can fall within a desired resistance range and still generate undesirable charge when handled against another material.
Measures the time required for an applied charge or voltage to decrease between specified levels.
Why it mattersIt evaluates dynamic charge dissipation rather than only a steady-state resistance reading.
Evaluates how much energy reaches the interior of a closed package when an electrostatic discharge is applied externally.
Why it mattersShielding is a performance characteristic of the package structure, not merely a resistance classification.
Instruments such as electrostatic fieldmeters can identify charged surfaces and help evaluate charge generation or ionization effectiveness.
Why it mattersA resistance meter cannot directly show the voltage present on an isolated insulative surface.
Periodic measurements confirm that control items remain connected, functional, and within the limits established by the ESD-control plan.
Why it mattersWear, contamination, broken connections, cleaning practices, and environmental exposure can change performance after installation.
Packaging may also require testing for cushioning, retention, cleanliness, dimensional stability, abrasion, reuse, temperature, and humidity exposure.
Why it mattersElectrically suitable packaging can still fail if it does not protect the device physically throughout actual distribution.
Test Program Structure
Qualification establishes that a material, product, or control item can meet the required technical performance before it is approved for use.
Compliance verification confirms that installed ESD-control items continue to perform within the limits and frequencies defined by the organization’s ESD-control plan.
Documentation
Complete reporting makes results reproducible and prevents unlike measurements from being compared as though they were equivalent.
Product, material, lot, and specimen identification
Applicable standard, method, or approved internal procedure
Measurement type and direction of the electrical path
Meter, electrode, lead, and fixture identification
Applied voltage, electrification time, and reading duration
Temperature, relative humidity, and conditioning period
Specimen dimensions, thickness, layers, and surface orientation
Individual readings, calculation method, and reported result
Acceptance limit and pass, fail, or informational status
Test date, operator, instrument status, and relevant observations
Common Mistake
Do not compare two resistance numbers unless they were produced using compatible methods and conditions. A surface measurement made with one electrode arrangement cannot automatically be treated as equivalent to a volume measurement, point-to-point measurement, or resistance-to-ground result.
Engineering Note
Product geometry can make standard flat-material testing impractical. Tubes, molded trays, cavities, cellular foam, ribs, coatings, and small contact areas may require an applicable alternate electrode or product test method. The chosen method should represent the actual electrical path relevant to the application and be documented with the result.
An electrical resistance value is only one part of an ESD evaluation. Reliable technical decisions require the correct measurement type, documented test method, controlled conditions, appropriate equipment, and additional performance testing when low charging, decay, or discharge shielding is required.
Protective Packaging Systems
ESD packaging protects sensitive electronic items by combining electrical charge-control properties with physical containment, cushioning, separation, retention, cleanliness, and environmental protection.
Direct Answer
Effective ESD packaging normally uses low-charging materials near the device, conductive or static-dissipative materials where controlled charge movement is required, and a discharge-shielding structure when sensitive items travel outside an ESD Protected Area. The package must also prevent physical damage throughout handling, storage, and shipping.
System Approach
A technically suitable material can still produce an ineffective package if the device is free to move, leads contact an unsuitable surface, the enclosure is not properly closed, or the package loses integrity during distribution.
Packaging should therefore be evaluated as a complete system. The electrical properties, mechanical design, internal contact surfaces, closures, accessories, handling procedures, and external shipping container must work together.
Core Packaging Functions
Not every application requires every function, but each requirement should be considered before the package is selected.
Reduces triboelectric charge generation when the device contacts, separates from, slides against, or moves within the packaging.
Conductive or static-dissipative materials allow charge to move away from localized contact areas and toward electrical equilibrium.
A closed shielding structure reduces the discharge energy reaching an enclosed electrostatic-sensitive item from outside the package.
Holds components, assemblies, wafers, or devices in a controlled orientation and prevents loss or uncontrolled movement.
Protects fragile components from impact, vibration, compression, abrasion, and forces produced during transportation.
Prevents bent leads, scratched surfaces, damaged pads, chipped die, wafer contact, and other forms of mechanical interference.
Keeps devices separated, counted, oriented, indexed, or grouped for production, inspection, automated handling, and inventory control.
Helps limit dust, fibers, residues, moisture exposure, contamination, and contact with incompatible packaging materials.
Common Package Formats
The appropriate format depends on component geometry, sensitivity, quantities, handling equipment, cleanliness requirements, automation, and distribution conditions.
Extruded shipping tubes retain compatible electronic components in a controlled linear orientation for storage, transportation, manual loading, and automated equipment.
DIP, SIP, SOIC, SOP, PLCC, QFN, TO-style packages, and other compatible electronic devices.
JEDEC-style trays organize individual components in defined pockets while supporting stacking, automated handling, baking-compatible workflows where applicable, inspection, and production transfer.
Integrated circuits, modules, sensors, connectors, microelectronic packages, and other tray-compatible components.
Thermoformed trays use shaped pockets, ribs, clearances, and stacking features to retain components with geometries that may not fit a standardized tray or tube.
Circuit boards, connectors, sensors, optical parts, machined components, assemblies, and custom-shaped electronic devices.
Protective boxes combine an outer container with cushioning, device retention, separation, or custom-cut inserts selected for the electrical and mechanical requirements of the contents.
Bare components, assembled circuit boards, modules, test fixtures, repair parts, prototypes, and small production quantities.
Flexible packaging may provide low-charging contact, moisture resistance, contamination protection, conductive or dissipative properties, or discharge shielding depending on its construction.
Components, printed circuit boards, assemblies, cables, modules, and items requiring a flexible primary or secondary enclosure.
Wafer packaging uses rigid containers, cushioning discs, separators, retainers, and controlled stacking to protect fragile wafer surfaces and edges during storage and distribution.
Process wafers, test wafers, substrates, discs, separators, and other fragile circular materials.
Inserts support, separate, retain, or cushion components inside another container while providing an electrical behavior suitable for direct or near-device contact.
Integrated circuits, circuit boards, modules, sensors, connectors, optical parts, and delicate electronic assemblies.
Accessories maintain stack compression, close containers, retain components, secure tube contents, or prevent packaging assemblies from separating during handling.
JEDEC tray stacks, shipping tubes, reusable containers, grouped components, internal handling kits, and warehouse storage.
Package Hierarchy
Sensitive devices frequently require multiple packaging layers. Electrical protection at the device level must remain compatible with the mechanical protection required for distribution.
Primary Packaging
The tray, tube, bag, foam, insert, separator, carrier, or other material that directly contains or contacts the sensitive item.
Primary concernsSecondary Packaging
The box, bag, container, wrap, cushioning system, or enclosure that surrounds one or more primary packages.
Primary concernsShipping Packaging
The corrugated carton, shipping case, pallet system, cushioning, labels, and restraints used to move the packaged items through the distribution network.
Primary concernsDirect Device Contact
Intimate contact refers to packaging material that directly touches an electrostatic-sensitive device or is positioned close enough that its electrical and physical behavior can directly affect the device.
Direct-contact materials should be evaluated for charge generation, resistance classification, cleanliness, abrasion, outgassing or contamination concerns, cushioning, particle generation, and compatibility with the device surface and leads.
Will the material touch conductive leads, pads, or circuitry?
Could movement create triboelectric charging or abrasion?
Can charge move away from the contact area as intended?
Could particles, plasticizers, residues, or fibers contaminate it?
Does the package prevent damaging pressure on fragile features?
Will aging, humidity, reuse, or cleaning change performance?
Physical Design
Excessive movement can damage leads, edges, surfaces, and assemblies. It can also increase repeated contact and separation between the device and its packaging.
Use appropriate pocket dimensions, rails, channels, inserts, or retainers to reduce uncontrolled movement across contact surfaces.
Prevent components from bouncing, overturning, escaping pockets, or contacting the package above them.
Establish clearance around leads, wire bonds, optical surfaces, connectors, pads, edges, and other vulnerable areas.
Cushioning and retainers should hold the item securely without applying damaging point loads or excessive pressure.
Orientation features can support inspection, counting, automated loading, traceability, and correct downstream assembly.
Account for component variation, material thickness, shrinkage, thermoforming variation, foam compression, and package wear.
Preliminary Selection Guide
This comparison is a starting point, not a universal specification. The final design should be verified against the actual device, handling process, and distribution environment.
| Package Method | Best Suited For | Primary Strength | Important Design Concern |
|---|---|---|---|
| IC shipping tube | Uniform devices compatible with linear rails or profiles | Orientation, compact storage, and automated feeding | Profile fit, lead clearance, end closure, and internal movement |
| JEDEC tray | Components compatible with standardized tray handling | Individual pockets, stacking, and automation | Pocket geometry, stack restraint, temperature rating, and reuse |
| Thermoformed tray | Custom shapes, assemblies, and nonstandard components | Tailored geometry and efficient presentation | Clearances, nesting, stacking, material thickness, and retention |
| Box with foam or insert | Irregular, fragile, low-volume, or mixed components | Cushioning and highly adaptable internal geometry | Foam compression, contamination, cavity design, and package size |
| Flexible bag | Boards, assemblies, cables, and varied component shapes | Flexible enclosure and optional shielding | Correct bag construction, closure, puncture resistance, and fit |
| Wafer jar system | Wafers, substrates, discs, and fragile circular items | Surface separation, edge protection, and vertical retention | Disc size, separator compatibility, cushioning, cleanliness, and compression |
Package Validation
Device dimensions, tolerances, orientation, and critical features
ESD sensitivity and required packaging properties
Direct-contact material suitability and cleanliness
Component loading, unloading, and removal procedures
Retention, clearances, cushioning, and movement control
Package closure and discharge-shielding performance where required
Compatibility with automation, inspection, storage, and production
Shipping carton, cushioning, drop, vibration, and compression risks
Environmental exposure, shelf life, aging, cleaning, and reuse
Labels, ESD symbols, part identification, and handling instructions
Common Mistake
Do not treat cushioning and ESD protection as separate afterthoughts. Replacing a specified ESD foam, insert, separator, or bag with an ordinary packaging material may change charge generation, resistance, cleanliness, device movement, or shielding performance.
Engineering Note
A package that performs correctly inside an ESD Protected Area may not provide sufficient protection during common-carrier shipping or uncontrolled storage. The final packaging configuration should reflect the most demanding environment the device will encounter, not only the workstation where it was packed.
Effective ESD packaging combines the required electrical properties with device retention, cushioning, separation, cleanliness, closure, and distribution protection. The correct solution is the complete packaging system, not merely the material carrying an ESD label.
Lifecycle Protection
Electrostatic-sensitive items must remain protected throughout receiving, unpacking, production, temporary storage, internal movement, warehousing, shipping, and final use.
Direct Answer
ESDS items should be opened and handled only within an appropriate ESD Protected Area unless the device is contained in packaging that maintains the required protection. Personnel grounding, controlled work surfaces, suitable packaging, proper closure, and documented handling procedures should remain consistent throughout the item’s journey.
Complete Handling Chain
A device may be correctly packaged at the supplier and still be exposed later through improper receiving, staging, repacking, storage, or unpacking. Every transfer point should preserve both the electrical and physical protection required by the item.
Responsibilities should be clearly defined whenever an ESDS item moves between suppliers, warehouses, production departments, contractors, carriers, customers, or service locations.
ESDS Item Journey
Each stage introduces different hazards. The package and handling process should be designed around the most demanding stage rather than the easiest one.
Receiving
Verify the shipment identity, package condition, ESD markings, closures, seals, moisture indicators where applicable, and any visible evidence of crushing, puncture, contamination, or improper repacking.
Key actionDo not open protective packaging at an uncontrolled receiving desk merely to confirm the contents.
Transfer to the EPA
Transport the item in its closed protective package to the designated ESD Protected Area or other approved controlled location before exposing the contents.
Key actionMaintain package closure and avoid placing it on charged or contaminated surfaces.
Unpacking
Personnel, the work surface, tools, fixtures, and other conductive items should be brought into the approved grounding system before the protective package is opened.
Key actionGround the operator and workstation first, then open the package.
Production Handling
Devices should remain on approved work surfaces, in qualified carriers, or within controlled fixtures. Ordinary plastic bins, trays, tape, foam, paperwork, and personal items should be kept away from exposed ESDS items.
Key actionUse only approved materials and tools inside the protected handling area.
Work-in-Process
Components and assemblies may remain vulnerable while waiting for inspection, testing, repair, assembly, or movement to another workstation.
Key actionUse approved trays, tubes, boxes, carts, covers, or closed packages rather than leaving devices exposed between operations.
Storage
Storage conditions can affect electrical properties, package integrity, cleanliness, cushioning, closures, moisture control, and material aging.
Key actionStore packages closed, identified, protected from damage, and under the environmental conditions required by the item and packaging.
Repacking
Repacking should recreate the required contact materials, cushioning, orientation, closure, labels, and shielding performance of the approved package.
Key actionDo not substitute ordinary foam, bags, tape, boxes, or dividers without technical approval.
Transportation
Carrier shipping may expose packages to ungrounded personnel, ordinary conveyors, vehicles, automated sorting, impacts, vibration, compression, temperature changes, and uncontrolled humidity.
Key actionUse a complete closed package that maintains the required ESD and physical protection without relying on a grounded workstation.
Safe Unpacking Sequence
A consistent unpacking sequence reduces the chance that the package will be opened before personnel and the work area are prepared.
Verify that the package is being opened within the designated ESD Protected Area or approved equivalent environment.
Confirm the operator’s grounding method is correctly connected and functioning before the item is exposed.
Remove unnecessary insulators, ordinary packaging materials, food, paperwork, and personal items from the immediate handling area.
Check for damage, improper closure, contamination, missing labels, or evidence that the protective structure may have been compromised.
Position the package so that removal can occur without unnecessary sliding, dropping, or transferring the contents across unsuitable surfaces.
Avoid puncturing shielding layers, cutting through internal components, tearing closures, or contaminating reusable packaging.
Place the device on a qualified work surface, tray, tube, container, fixture, or other approved control item.
Retain labels, lot information, moisture data, traceability, and reusable packaging needed for return, storage, or later movement.
Work-in-Process Control
Work-in-process materials are often exposed repeatedly while moving between assembly, inspection, test, repair, cleaning, and storage. Temporary handling should receive the same level of control as final packaging.
Covers and closures reduce accidental contact, contamination, loss, and exposure during movement between workstations.
Mobile carts, racks, bins, and shelves should use approved materials and remain connected to the intended grounding system where required.
Ordinary containers, foam, paperwork, plastic wrap, labels, and personal items should not be mixed with exposed ESDS items.
Carriers should preserve part identity, quantity, orientation, inspection status, and traceability during movement and staging.
Partially assembled boards and modules may have exposed circuitry and should not be treated as less sensitive simply because production is incomplete.
Lunch breaks, shift changes, overnight staging, maintenance, and production delays can leave devices exposed longer than expected.
Storage Guidance
Storage protects more than inventory quantity. It preserves the electrical, mechanical, environmental, and identification functions of the package until the item is needed.
Package Condition
Bags, boxes, tubes, trays, jars, covers, straps, plugs, and closures should remain properly secured and free from punctures, cracks, tears, or deformation.
Environmental Exposure
Storage conditions can affect polymers, topical antistatic treatments, foam, adhesives, labels, corrosion risk, moisture-sensitive devices, and package dimensions.
Mechanical Loading
Packaging should be stacked only within its intended load capacity. Excessive compression can deform trays, crush foam, bend tubes, damage wafers, or force components against package features.
Identification
Part numbers, lot codes, quantities, dates, inspection status, moisture information, and special handling requirements should remain legible and associated with the correct package.
Shelf Life
Some coatings, additives, adhesives, films, foam, cushioning, and moisture-control materials may change with time or environmental exposure.
Inventory Rotation
First-in, first-out or other approved rotation methods can reduce excessive aging and help ensure older packaging materials are evaluated before reuse.
Distribution Environment
A package that works on a grounded bench may fail during shipping if it depends on external grounding, allows internal movement, or lacks the strength required for distribution.
Packages may be handled by personnel and equipment with no ESD controls or common electrical reference.
Belts, rollers, chutes, sliding surfaces, and automated handling can create repeated contact and separation.
Carton drops and sudden impacts can move devices, damage closures, fracture brittle items, or defeat internal cushioning.
Continuous movement can cause abrasion, lead damage, component migration, foam wear, loosening of closures, and repeated charging.
Loads from other cartons can deform packages and transfer force to the sensitive item.
Warehouses, aircraft, trucks, loading docks, and delivery vehicles may expose packages to changing environmental conditions.
Sharp edges, staples, hardware, loose components, and neighboring packages can damage bags, boxes, foam, or shielding layers.
Carriers, customs personnel, distributors, or customers may open or alter the package without understanding the original protection system.
Shipping Readiness
The correct device and quantity are in the approved primary package.
Direct-contact materials are suitable for the device and application.
The item cannot slide, overturn, escape, or contact damaging features.
Required shielding packaging is complete and properly closed.
Tubes, trays, jars, boxes, plugs, straps, and covers are secure.
Internal cushioning protects against shock, vibration, and compression.
The shipping carton is correctly sized and structurally sound.
Voids are controlled without introducing unapproved materials.
ESD, fragile, moisture, orientation, and handling labels are accurate.
Part, lot, quantity, destination, and traceability data are verified.
Reusable Packaging
Reuse can reduce cost and waste, but only when the package remains electrically suitable, physically intact, clean, correctly identified, and compatible with the next device.
Common Mistake
Do not open a shielding bag, box, tube, or container in an uncontrolled area simply because the device will be exposed for only a few seconds. Risk begins as soon as the protective structure is opened and the item is exposed to charged personnel, surfaces, tools, or ordinary materials.
Engineering Note
Shipping protection should be designed around the complete distribution cycle, including receiving and unpacking at the destination. Clear labels, opening instructions, approved reusable carriers, and intuitive package design can reduce the likelihood that the customer unintentionally defeats the ESD protection.
ESDS items require continuous protection. The package, workplace, personnel, storage environment, transportation method, and unpacking procedure must preserve the required controls from the original packer to the final user.
Practical Risk Reduction
Many ESD failures begin with incorrect assumptions about materials, grounding, packaging, handling, testing, or reuse. Recognizing these mistakes helps prevent gaps in an otherwise well-designed control program.
Direct Answer
The most common ESD protection mistakes come from treating color, labeling, resistance, grounding, shielding, or packaging format as proof of complete protection. Effective control depends on verified material properties, correct package design, proper handling, and the environment in which the device will be used.
Why Mistakes Happen
Many incorrect ESD practices begin with a statement that is partly true. Conductive materials can move charge, pink packaging is often low charging, shielding bags can protect devices, and grounding is an essential control method.
The problem occurs when one property is assumed to provide every other required form of protection. ESD control works only when the material, package, workstation, procedure, and device requirements are evaluated together.
Incorrect assumption: Any black foam, tray, box, or plastic container is conductive and safe for sensitive electronics.
Black color may come from carbon loading, pigment, recycled content, UV stabilizers, or other additives. Appearance alone does not establish surface resistance, volume resistance, low-charging behavior, or shielding performance.
Verify the material specification, applicable resistance data, test method, and intended ESD function rather than relying on color.
Incorrect assumption: A pink antistatic bag or foam automatically protects a device from an external electrostatic discharge.
Pink antistatic packaging is generally intended to reduce charge generation during contact and separation. It does not automatically provide a conductive enclosure or discharge-shielding structure.
Use low-charging packaging where appropriate, but add a verified shielding package when the device will travel outside a controlled ESD Protected Area and shielding is required.
Incorrect assumption: Attaching a ground wire to ordinary plastic, conventional foam, tape, or another insulator removes its static charge.
Charge cannot move freely through an insulative material. A grounding connection may affect only the small area touching the conductor while charge remains elsewhere on the surface.
Remove unnecessary insulators, replace them with suitable low-charging or dissipative materials, or use approved ionization where insulators cannot be eliminated.
Incorrect assumption: A conductive tray, container, cart, or tool cannot retain charge.
Conductive materials allow charge to move readily, but an isolated conductive object can still accumulate and retain charge because no path exists for the charge to leave.
Confirm that conductive control items are connected to the intended common electrical reference where grounding is required.
Incorrect assumption: A single resistance number proves that a material or package provides complete ESD protection.
Resistance testing measures one electrical characteristic under a specific configuration. It does not automatically establish low-charging behavior, charge-decay performance, shielding, cleanliness, durability, or package integrity.
Match the test method to the required property and verify additional package functions when the application requires them.
Incorrect assumption: All resistance measurements can be compared directly because they are reported in ohms.
Surface resistance, volume resistance, point-to-point resistance, and resistance to ground evaluate different electrical paths. Electrode design, applied voltage, humidity, conditioning, and specimen geometry can also change the result.
Compare data only when the measurement type, test method, specimen construction, and conditions are compatible.
Incorrect assumption: A device remains shielded when the bag, box, or container is left open or only partially closed.
Discharge shielding depends on the completed protective structure. Open seams, damaged closures, punctures, missing lids, and exposed contents can defeat the intended protection.
Close the package using the specified method and inspect the enclosure before the item leaves the controlled area.
Incorrect assumption: Electrical material properties are sufficient even when the device slides, bounces, overturns, or contacts other components.
Movement can bend leads, scratch surfaces, break wafers, damage assemblies, abrade packaging, and generate additional charge through repeated contact and separation.
Design pockets, rails, foam, separators, retainers, plugs, straps, and clearances to control movement without applying damaging force.
Incorrect assumption: Any foam, bag, divider, tape, wrap, or box can replace the original packaging if the dimensions appear similar.
Substitutions may change charge generation, resistance, shielding, contamination, cushioning, compression, fit, or package closure.
Approve packaging substitutions through the same technical review used for the original material and package design.
Incorrect assumption: Brief exposure is harmless if the package is opened only for inspection, counting, or confirmation.
As soon as the protective structure is opened, the item may be exposed to charged personnel, ordinary work surfaces, paper, plastic, tools, carts, and surrounding electric fields.
Transfer the closed package to the approved handling area and establish grounding before exposing the contents.
Incorrect assumption: Maintaining moderate or high humidity eliminates the need for grounding, controlled materials, packaging, and procedures.
Humidity can influence charge generation and retention, but it does not neutralize every insulator or guarantee safe handling. Conditions can also change between seasons, locations, warehouses, and shipping environments.
Treat environmental conditions as one supporting factor within a verified control program, not as the primary protection method.
Incorrect assumption: An ESD bag, tray, foam insert, tube, box, or jar remains suitable indefinitely because it was originally approved.
Wear, contamination, punctures, compressed foam, abrasion, damaged closures, cleaning, aging, and material changes can reduce electrical or mechanical performance.
Establish inspection, cleaning, testing, identification, and retirement criteria for reusable ESD packaging.
Quick Reference
| Common Claim | Technical Reality |
|---|---|
| “It is black, so it must be conductive.” | Color does not establish electrical resistance or package performance. Verify the material and test data. |
| “Pink antistatic packaging protects against every ESD hazard.” | Pink antistatic materials are commonly low charging, but they do not automatically provide discharge shielding. |
| “If I cannot feel a shock, the device is safe.” | Sensitive devices can be affected by discharge events below the level of human perception. |
| “Conductive packaging cannot hold charge.” | A conductive item can remain charged when it is electrically isolated. |
| “A ground wire removes charge from any material.” | Grounding requires a material and path that allow charge to move. Ordinary insulators cannot generally be grounded effectively. |
| “A resistance reading proves the package is shielding.” | Resistance and discharge shielding are different properties and require different evaluations. |
| “The package is safe as long as the item fits.” | Fit must also control movement, protect critical features, preserve ESD properties, and survive distribution. |
| “Humidity solves static problems.” | Humidity may influence charging but does not replace grounding, controlled materials, ionization, packaging, or procedures. |
How Protection Breaks Down
ESD exposure often results from several minor errors occurring in sequence rather than one dramatic mistake.
The item is exposed at receiving or inspection outside the EPA.
An uncontrolled surface generates or retains charge.
A voltage difference exists between the person and device.
The device may fail immediately or suffer latent damage.
Process Review
Are material properties verified, or assumed from color and appearance?
Does each package provide the functions required by the device?
Are shielding packages consistently closed before leaving the EPA?
Are conductive items connected to the intended grounding system?
Are unnecessary insulators removed or controlled with ionization?
Do test reports identify the measurement method and conditions?
Are packaging substitutions reviewed before use?
Does the package prevent movement and physical damage?
Are packages opened only in approved controlled areas?
Are reusable packages inspected and retired when damaged?
Common Mistake
The most serious ESD error is assuming that one visible feature proves complete protection. An ESD symbol, black color, pink color, grounding cord, resistance result, or shielding label verifies only what has actually been tested and documented.
Engineering Note
When an ESD failure is investigated, review the full handling chain rather than only the final workstation. The exposure may have occurred during receiving, temporary staging, repacking, internal transport, carrier shipping, inspection, or opening at the destination.
ESD protection fails when assumptions replace verification. Confirm the actual material properties, package functions, grounding paths, handling environment, test methods, and package condition before relying on any item to protect an electrostatic-sensitive device.
Application Planning
The correct ESD package is selected by defining the device, electrical risks, physical hazards, handling environment, transportation path, and verification requirements before choosing a material or package format.
Direct Answer
Begin with the device and its complete handling path, not with a preferred package. Determine the required low-charging, conductive, static-dissipative, grounding, or shielding functions, then match those requirements with the mechanical protection, cleanliness, dimensions, quantities, automation, storage, and shipping conditions.
Selection Principle
Two devices with similar dimensions may require different packaging because their sensitivity, lead configuration, exposed surfaces, cleanliness requirements, weight, shipping environment, or handling process are different.
A packaging selection should therefore be based on documented requirements. Product availability, color, price, and familiarity are important commercial factors, but they should not replace technical suitability.
Decision Framework
The process below can be used for new package development, replacement packaging, supplier qualification, or review of an existing system.
Define the Item
Record the part number, device type, dimensions, weight, orientation, quantity, tolerances, exposed conductors, leads, connectors, pads, surfaces, wafers, optical areas, and other vulnerable features.
Determine Sensitivity
Obtain available device-sensitivity information, manufacturer specifications, customer requirements, internal control limits, and relevant qualification data.
Map the Handling Path
Identify every stage in which the device will be packed, stored, moved, inspected, transported, opened, repacked, returned, or reused.
Define Electrical Functions
Determine which electrical-control functions the direct-contact materials, internal package, and outer package must provide.
Define Physical Protection
Determine the forces and movements the package must control during production, internal handling, warehousing, shipping, and final unpacking.
Select the Package Format
Choose the package format that best supports the component shape, orientation, quantity, automation, loading method, reuse, and distribution requirements.
Evaluate Materials
Review material data, construction, durability, cleanliness, environmental behavior, manufacturing variation, and compatibility with direct device contact.
Develop the Complete System
Define how the device carrier, cushioning, enclosure, closures, labels, shipping carton, void fill, palletization, and handling instructions work together.
Test and Validate
Test the electrical, mechanical, dimensional, environmental, and process performance of the complete packaging configuration using representative devices or approved surrogates.
Approve and Control
Once approved, define the exact materials, dimensions, part numbers, suppliers, pack quantities, closure method, labels, handling instructions, inspection criteria, and permitted substitutions.
Requirements Worksheet
Providing this information early helps reduce assumptions, unnecessary prototypes, and package redesign.
Device Information
ESD Requirements
Packaging Process
Distribution
Cleanliness and Environment
Commercial Requirements
Preliminary Format Guide
This guide supports early evaluation. Final selection should still be based on the actual device and process.
Consider an IC Shipping Tube
Consider a JEDEC Tray
Consider a Thermoformed Tray
Consider a Box With Foam
Consider an ESD Bag
Consider a Wafer Packaging System
Standard or Custom
Standard Packaging May Be Best When
Custom Packaging May Be Best When
Lifecycle Economics
Packaging cost should include the full impact on labor, device damage, storage, shipping, inventory, reuse, quality, and customer experience.
Loading, closing, labeling, counting, and unpacking time.
Scrap, rework, returns, analysis, and warranty exposure.
Carton size, package density, weight, and dimensional charges.
Orientation, feeder compatibility, inspection, and line handling.
Minimum quantities, storage space, lead time, and obsolescence.
Cleaning, return logistics, inspection, waste, and replacement.
Final Approval
The device and critical features are fully documented.
The required ESD functions are clearly specified.
Direct-contact materials are technically suitable.
Movement, orientation, and mechanical protection are controlled.
The closed package protects the item outside the EPA where required.
The complete package survives expected distribution hazards.
Loading and removal can be performed without creating new hazards.
Electrical and physical performance has been validated.
Approved materials, suppliers, and substitutions are controlled.
Work instructions, labels, inspection, and reuse criteria are documented.
Common Mistake
Do not begin the selection process by asking only, “Which ESD bag, foam, tray, or box should we buy?” Begin by defining what the device must be protected from and what the complete packaging system must accomplish.
Engineering Note
When requirements are uncertain, use a staged development process: document assumptions, create representative prototypes, test the package with actual devices or approved surrogates, review the results, and then freeze the final specification. A prototype that merely “fits” is not yet a qualified packaging system.
Select ESD packaging by translating the device, handling process, environment, and distribution hazards into documented electrical and mechanical requirements. Then verify that the complete package satisfies those requirements before approving it for production.
Technical Terminology
This glossary defines common terms used when discussing electrostatic discharge, ESD-control programs, material properties, device sensitivity, and protective electronics packaging.
How to Use This Glossary
These definitions provide practical context for this handbook. Where a term is used within a specification, qualification program, audit, or contract, the formal definition in the applicable standard or customer document should take precedence.
Terminology Matters
Terms such as antistatic, conductive, static-dissipative, low charging, grounding, and shielding are sometimes used as though they mean the same thing. They do not.
Clear terminology helps engineers, purchasing teams, suppliers, and quality personnel specify the required performance rather than relying on color, appearance, or a broad “ESD-safe” description.
A
A commonly used description for a material intended to reduce triboelectric charge generation during contact and separation.
Antistatic or low-charging behavior does not by itself establish that a material is conductive, static-dissipative, grounded, or discharge shielding.
C
The reduction of an applied electrostatic charge or voltage over time, usually measured between specified starting and ending levels.
Charge-decay testing evaluates dynamic dissipation behavior rather than only measuring steady-state electrical resistance.
C
A device-level ESD model representing a charged electronic component discharging rapidly when one of its terminals contacts a conductive object or reference.
CDM events can occur during automated handling, placement, testing, or contact with grounded fixtures and equipment.
C
A material that allows electrical charge to move readily across its surface or through its volume.
A conductive item can remain charged when electrically isolated. Charge still requires an appropriate path or connection before it can leave the object.
D
The ability of a completed package or enclosure to reduce the electrostatic-discharge energy reaching a protected item from outside the package.
Shielding depends on the complete package construction, continuity, closure, geometry, layers, and verified test performance.
E
The region surrounding an electric charge in which another charged object may experience an electrical force.
A charged insulator can create an electric field that affects nearby conductors or sensitive devices without direct physical contact.
E
A measure of electrical potential energy per unit charge, commonly expressed in volts.
A discharge may occur when objects at different electrical potentials are brought into contact or sufficiently close proximity.
E
A defined area in which ESD-control measures are implemented to reduce the risk of damage to electrostatic-sensitive items.
Personnel grounding, controlled work surfaces, approved materials, grounding systems, ionization, training, procedures, and compliance verification.
E
The electrical connection of conductive items so that voltage differences between them are reduced.
Personnel, work surfaces, equipment, tools, and fixtures may be connected to an approved common reference to reduce discharge risk.
E
The sudden transfer of electrical charge between objects at different electrical potentials.
An ESD event may occur below the level at which a person can see, hear, or feel the discharge.
E
An electrical or electronic part, assembly, device, or item that may be damaged or adversely affected by electrostatic discharge.
The required control level should be based on documented device sensitivity and the applicable ESD-control program.
G
Connecting a conductive or dissipative item to an approved electrical reference so accumulated charge can move toward electrical equilibrium.
Grounding requires a continuous path through materials capable of moving charge. Ordinary insulators cannot generally be neutralized simply by attaching a ground wire.
H
A device-level ESD model representing a discharge from a charged person through an electronic component.
HBM classification helps establish the level of personnel-related control needed when devices are handled.
I
A material that strongly resists the movement of electrical charge across its surface or through its volume.
Charge may remain localized on an insulator and create an electric field or discharge hazard near an ESDS item.
I
The use of positive and negative air ions to neutralize charge on insulative surfaces or isolated objects that cannot be effectively grounded.
Ionization supplements grounding and material control. It does not replace personnel grounding or the removal of unnecessary insulators.
L
A material intended to generate relatively low electrostatic charge during contact and separation with another material under defined conditions.
Low charging describes charge-generation behavior and does not define a specific resistance range or shielding capability.
R
Opposition to electrical-current flow through a specific specimen, product, or electrical path, normally expressed in ohms.
A resistance result should identify the measurement direction, electrodes, applied voltage, environmental conditions, and test method.
R
The electrical resistance measured from a control item, work surface, cart, system, or object to its designated grounding point.
It helps verify that an installed item has an electrical path to the intended common reference.
R
A normalized material property describing opposition to electrical current while accounting for specimen geometry.
Surface resistivity, volume resistivity, and measured resistance are related but are not interchangeable terms.
S
A material that permits charge to move across its surface or through its volume at a more controlled rate than a highly conductive material.
Static-dissipative resistance does not automatically establish low-charging behavior or discharge-shielding performance.
S
An imbalance of electrical charge that remains on an object, surface, or material until it dissipates or transfers elsewhere.
Static electricity is the stored charge condition. Electrostatic discharge is the movement of that charge.
S
Opposition to electrical current moving across a material surface between specified electrodes.
Electrode geometry, spacing, pressure, applied voltage, humidity, conditioning, and surface condition can influence the result.
T
Charge generation caused when materials contact and separate, resulting in electron transfer and an electrical imbalance.
Sliding devices in tubes, separating trays, removing foam, opening bags, and handling plastic packaging can create triboelectric charge.
V
Opposition to electrical current moving through the body or thickness of a material between opposing electrodes.
Volume resistance may be relevant when evaluating foam, molded plastics, sheets, inserts, and other three-dimensional materials.
Terminology Note
Broad commercial terms such as “ESD-safe,” “static-safe,” and “antistatic packaging” may not identify the specific electrical property or performance limit being claimed. Technical specifications should name the required property and the method used to verify it.
Precise terminology leads to better packaging decisions. Specify whether the application requires low charging, conductivity, controlled dissipation, grounding, ionization, discharge shielding, or a combination of those functions.
Standards and Source Material
ESD-control and packaging requirements should be based on the standards, customer specifications, device data, and test methods applicable to the organization and product.
Important Notice
This Malaster handbook is an educational resource. It does not replace the complete text of any ANSI/ESD, IEC, JEDEC, customer, regulatory, or internal quality requirement. Always verify the current revision and obtain the controlling document from its official publisher.
EOS/ESD Association
These documents address ESD-control programs, protective packaging, terminology, grounding, testing, and compliance verification.
Protection of Electrical and Electronic Parts, Assemblies and Equipment
Establishes administrative and technical requirements for developing, implementing, and maintaining an ESD-control program.
View EOS/ESD Association StandardsPackaging Materials for ESD Sensitive Items
Defines protective-packaging properties and references methods for evaluating packaging and packaging materials used during production, transport, and storage.
View Current Standard InformationESD Association Glossary of Terms
Provides standardized terminology used in EOS/ESD Association documents and electrostatic-control applications.
Review ESD Standards ResourcesCompliance Verification of ESD Protective Equipment and Materials
Provides technical guidance for verifying ESD-control items and systems after they have been implemented within an ESD-control program.
Review Available Technical ReportsGrounding of ESD Control Items
Addresses grounding and bonding of personnel, equipment, work surfaces, and other ESD-control items.
View EOS/ESD StandardsFundamentals of Electrostatic Discharge
Educational overview covering ESD causes, device damage, control methods, testing, and standards.
Read the Fundamentals SeriesInternational Electrotechnical Commission
The IEC 61340 series includes international requirements and test methods addressing ESD-control programs, packaging, measurement, ionization, compliance verification, and process assessment.
Protection of Electronic Devices From Electrostatic Phenomena: General Requirements
Provides international requirements for establishing and maintaining an ESD-control program for electronic devices.
View Official IEC PublicationProperties and Requirements Classification for Packaging Intended for Electrostatic-Discharge-Sensitive Devices
Defines protective-packaging properties, referenced test methods, and performance limits for ESDS packaging.
View Official IEC PublicationMethods of Test for Determining the Resistance and Resistivity of Solid Materials
Describes methods for determining electrical resistance and resistivity of solid materials used to avoid electrostatic-charge accumulation.
View Official IEC PublicationStandard Test Methods for Specific Applications: Electrostatic-Discharge Shielding Bags
Provides a test method for evaluating discharge-shielding performance of bags and potentially other applicable packaging structures.
View Official IEC PublicationCompliance Verification
Describes compliance-verification testing for technical items used within ESD-control programs.
View Official IEC PublicationProcess Assessment Techniques
Provides methodologies for assessing ESD risk from charged personnel, isolated conductors, charged devices, insulators, and electrostatic fields.
View Official IEC PublicationAdditional Controlling Information
A technically complete package may also depend on device-level qualification data, customer requirements, manufacturing processes, distribution testing, and approved drawings.
HBM and CDM classifications, moisture-sensitivity information, maximum temperatures, surface restrictions, and recommended handling practices.
Customer drawings, approved material lists, labeling requirements, packaging instructions, inspection criteria, and contractual limits.
Organization-specific controls, qualification requirements, compliance-verification frequencies, training, records, and approved procedures.
Approved dimensions, tolerances, materials, suppliers, quantities, closures, labels, substitutions, inspection, and revision control.
Drop, vibration, compression, environmental, pallet, parcel, air, freight, and other tests selected for the expected shipping system.
Supplier qualification, incoming inspection, certificates, lot control, deviation approval, engineering changes, and material substitution procedures.
Source Evaluation
Determine whether the claim concerns resistance, low charging, decay, shielding, grounding, cleanliness, or another characteristic.
A number without a defined method, configuration, and condition may not support a meaningful comparison.
Confirm that the material, thickness, layers, color, additive, dimensions, and manufacturing process match the supplied product.
Standards and customer requirements change. Confirm that the referenced edition remains current and contractually applicable.
Initial product qualification and ongoing installed-system checks serve different purposes and may use different procedures.
Test reports should identify specimen limitations, measurement range, environmental conditions, deviations, and untested claims.
Standards Revision Notice
Standards may be revised, reaffirmed, superseded, corrected, or withdrawn. The edition listed in an older drawing, supplier document, article, or test report may no longer represent the current industry document or contractual requirement.
Use this handbook to understand the concepts and frame the right questions. Use the applicable official standards, device data, customer requirements, and approved internal documents to establish the final technical requirements.
Continue Learning
Understanding electrostatic discharge is only the beginning. Selecting the correct protective packaging requires balancing electrical performance, mechanical protection, manufacturing efficiency, shipping conditions, customer requirements, and long-term reliability. The resources below expand on many of the topics introduced throughout this handbook.
Need Engineering Assistance?
Choosing ESD packaging is rarely about selecting a single material. Our engineering team regularly assists customers with:
Provide engineers, buyers, quality professionals and manufacturers with a practical understanding of electrostatic discharge and protective packaging.
Electronics manufacturers, semiconductor companies, contract manufacturers, OEMs, laboratories, universities and purchasing professionals.
Malaster Company Engineering Resources
Living technical handbook updated as standards evolve and additional engineering content becomes available.
| Document | ESD Fundamentals Technical Handbook |
|---|---|
| Publisher | Malaster Company |
| Document Type | Engineering Technical Handbook |
| Current Revision | Revision 1.0 |
| Published | August 2026 |
| Review Cycle | Reviewed periodically as standards and technologies evolve. |
Electrostatic discharge cannot be eliminated entirely. Successful ESD protection comes from understanding how charge is generated, how it moves, how it affects electronic devices, and how thoughtfully designed packaging systems reduce that risk throughout manufacturing, storage, transportation and final use. At Malaster, we believe the best packaging decisions begin with good engineering.
