MC-9250CTS | Conductive Foam Tube Filler

ESD Tube Filler MC-9250CTS

MC-9250CTS is a black conductive foam IC tube stuffer measuring 1.000 in. wide × 0.250 in. thick × 19.00 in. long. Cut a suitable working length to occupy unused space in a partially loaded shipping tube and limit device travel during handling, storage, and shipment.

Dimensions and Material

Dimensions are nominal; metric values are conversions. Review the dimensioned product image for tolerances and confirm the fit in the intended tube before production use.

Selecting and Using MC-9250CTS

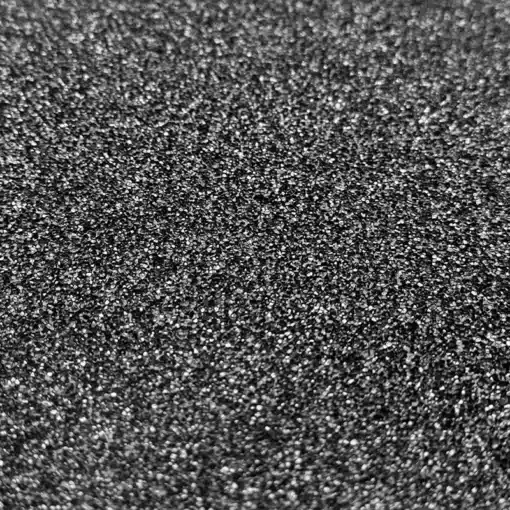

This black closed-cell foam strip provides a compressible filler for compatible IC shipping tubes. Select the cross-section and working length together so the foam controls movement without excessive pressure on the device stack.

1. Check the cross-section. Compare the filler width and thickness with the tube cavity and the loaded device geometry. Keep pressure away from exposed leads and other delicate features.
2. Set the working length. Account for the loaded device quantity and both end closures. The supplied 19.00-inch strip is cut to suit the remaining usable space.
3. Check the assembled package. Confirm that the filler limits travel and the closures seat normally without forcing or over-compressing the load.

A tube filler controls internal space. The matching end stop pins or end stop plugs retain the contents. Qualify the tube, filler, closures, and any outer protective packaging together for the device and shipping conditions.

Material and ESD Considerations

See the material information in the product gallery. If your application specifies an electrical range, cleanliness requirement, or device-contact restriction, provide it with your inquiry so Malaster can review the intended configuration.

Other Thicknesses in This Width

MC-9125CTS (0.125 in. thick); MC-9187CTS (0.187 in. thick). These share the 1.000-inch nominal width and CTS material family; verify the complete fit when changing thickness.
