Choosing the Right Antistatic IC Shipping Tube

I still smile a little when someone calls and says:

“I need a tube for an 8-pin SOIC.”

Not because the request is wrong.

It is simply because I already know the package name will only be the beginning of the conversation.

An 8-pin SOIC sounds specific. It feels like there should be one standard tube, one part number, and one simple answer.

In practice, there may be several tube profiles capable of holding a device described that way.

They may all fit.

They may not all be equally appropriate.

And sometimes the right answer is not a tube at all.

That is why selecting semiconductor packaging is rarely just a matter of matching a package name to a catalog number.

Before We Look at Tube Profiles

When someone contacts us for help selecting an IC shipping tube, I certainly want to know the package type.

But I also need to understand what will happen after the device goes into the package.

• Will the components be shipped?
• Will they be stored?
• Will they be loaded into automated assembly equipment?
• Will they be handled repeatedly in a production environment?
• Are they replacing a tube that has already been qualified?
• Is there an established company, military, or aerospace specification?

Those details matter because a tube is not simply a container.

It becomes part of the handling and manufacturing process.

A tube that works perfectly for shipping may not be the best choice for automation.

A profile that maximizes packing density may not provide the clearance another application requires.

A tube already qualified on an assembly line may be preferable even when another profile also fits the device.

This is why I begin with the application rather than the product.

The Mechanical Drawing Usually Tells Us More Than the Package Name

One of the first questions I normally ask is:

“Can you send us the mechanical drawing for the device?”

That sometimes surprises people.

After all, they may feel they are only trying to buy a plastic tube.

But I am not trying to find something that merely looks close enough.

I am trying to evaluate the best packaging options using actual engineering information.

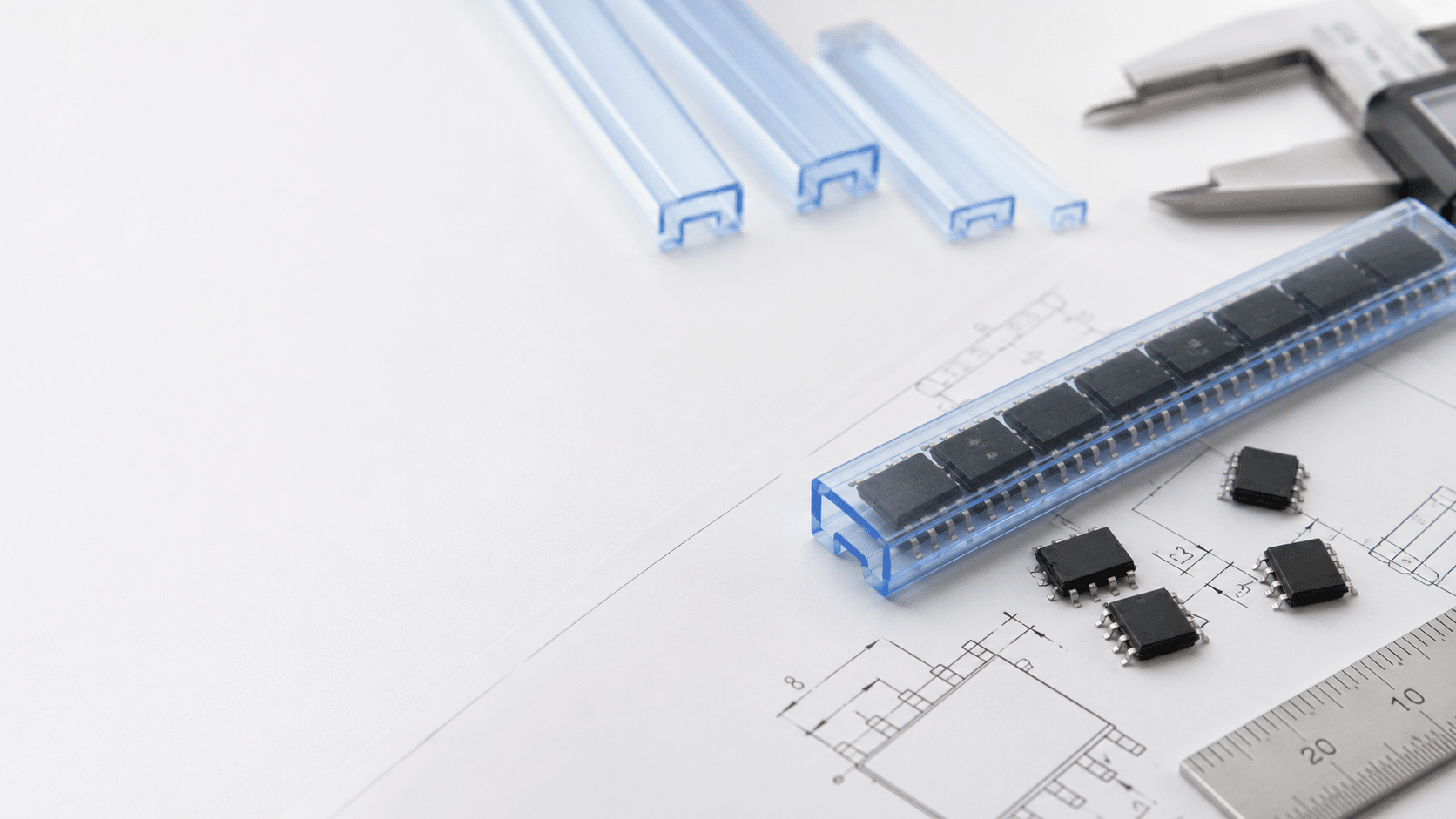

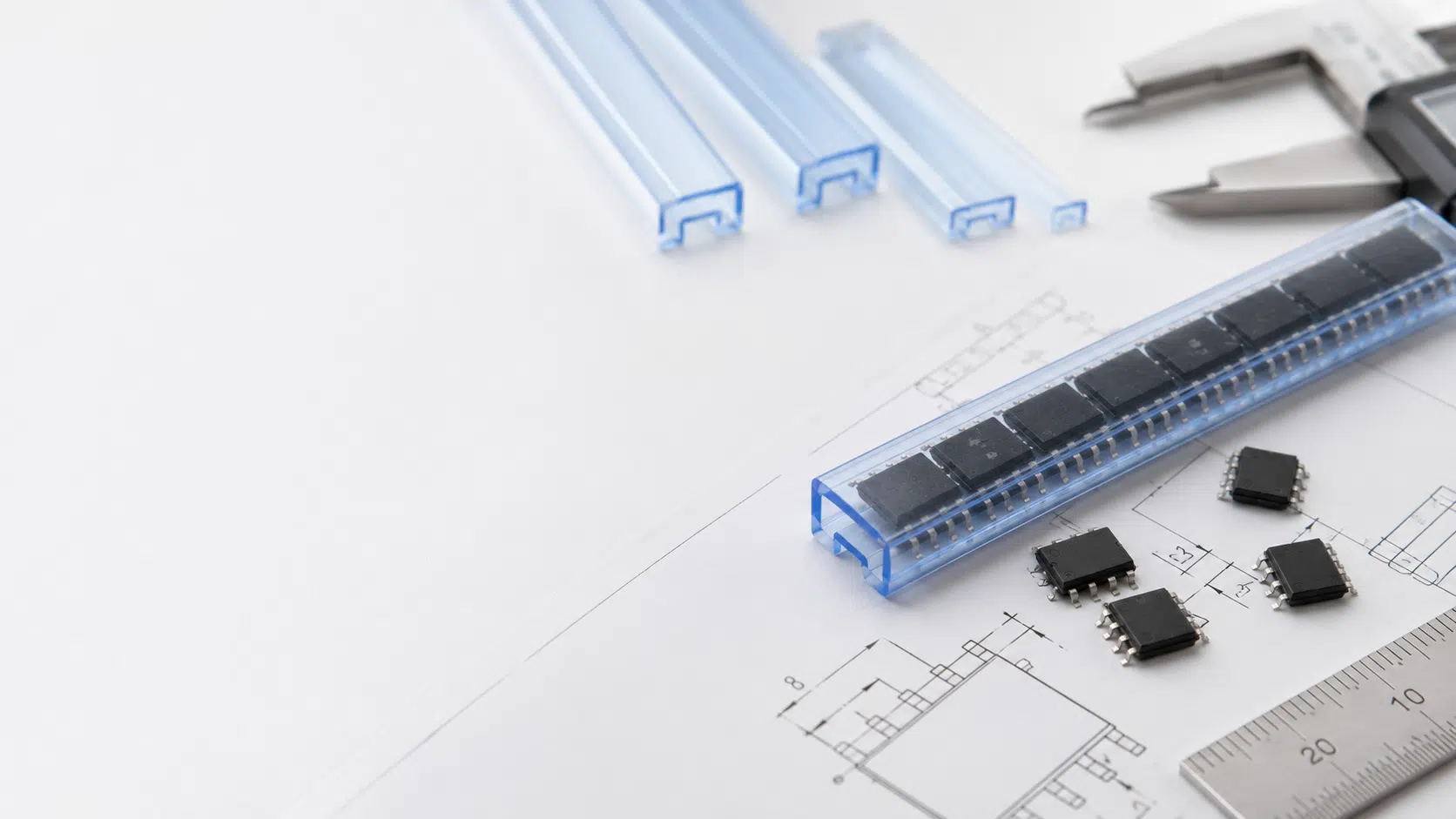

A mechanical drawing allows us to review details such as:

• Overall body dimensions
• Maximum dimensional tolerances
• Lead span and configuration
• Package thickness
• Critical clearance areas
• Device orientation
• Features that could interfere with an existing tube profile

The package name alone cannot always tell us those things.

Once we have the drawing, we can compare the device against existing extrusion profiles and present the most appropriate options.

Sometimes there is one clear solution.

Sometimes several profiles are worth considering.

Each may offer a different advantage depending on how the components will be shipped, stored, handled, or introduced into production.

My role is not simply to provide a part number.

It is to explain the options and the tradeoffs so the packaging decision can be made with confidence.

One Package Name Can Lead to Several Tube Options

The 8-pin SOIC is a good example.

Many people reasonably assume there is one standard tube for that package.

In reality, we may consider several different tube profiles.

Those profiles were not created because someone wanted unnecessary variety.

They were created because the applications are different.

The device may fit all of them.

That does not mean all of them are equally good choices.

Fit is only one part of the decision.

The better question is whether the profile supports the entire application.

Sometimes the Drawing Tells Us a Tube Is the Wrong Solution

This is one of the most important parts of the evaluation.

There are occasions when someone contacts us specifically looking for an IC shipping tube, sends us the device drawing, and I need to explain that a tube may not be the safest style of packaging.

That conversation happens more often than many people would expect.

A good example is a gull-wing QFP.

A QFP has delicate leads extending from all four sides of the package.

A conventional shipping tube typically controls or supports the device along two opposing sides.

That may leave the other two rows of leads facing the devices next to them inside the tube.

During shipping and handling, the components can move.

There is vibration. There are impacts. Boxes are transferred, stacked, and transported.

If the exposed leads of one QFP contact the neighboring device, the packaging itself can become the source of damage.

Should this device be packaged in a tube at all?

A JEDEC tray, thermoformed tray, or another engineered packaging format may provide better protection because it controls each device individually and protects all four sides of the lead configuration.

That is not a failure to find the right tube.

It is the successful identification of the right packaging method.

ESD Protection Is Only Part of the Package’s Job

When people hear the words semiconductor packaging, they often think first about electrostatic discharge.

That is understandable.

ESD protection is essential, and damage caused by an electrostatic event may not be immediately visible.

But preventing ESD is only one responsibility of the package.

The packaging must also protect the physical structure of the device.

• Lead deformation
• Surface damage
• Component-to-component contact
• Movement that compromises orientation
• Contamination
• Handling damage
• Problems during automated processing

A package can have the correct electrical properties and still be the wrong package mechanically.

If it prevents static generation but allows delicate leads to collide during shipment, it has not fully protected the device.

Neither should be treated as optional.

Antistatic and Conductive Tubes Are Not the Same

Another part of the conversation may involve the difference between antistatic and conductive tubes.

Most clear antistatic IC shipping tubes receive their static-control performance from a topical antistatic treatment.

For many commercial semiconductor applications, that provides a practical and cost-effective solution.

However, the antistatic performance is associated with the treated surface. Excessive handling, cleaning, or repeated reuse can gradually reduce the effectiveness of that treatment.

Conductive tubes are manufactured differently.

Their conductive properties are incorporated into the material rather than applied only as a topical treatment.

Many conductive tubes are also manufactured through dual extrusion, combining a conductive body with a clear viewing strip so the contents can still be identified.

That construction is more complex and significantly more expensive.

Depending on the profile and production requirements, a conductive tube may cost many times more than its antistatic equivalent.

Today, conductive tubes are most often requested when required by a formal specification or a highly controlled ESD program. Military, aerospace, and organizations working to meet stringent ESD-control requirements may continue to specify conductive packaging.

Malaster no longer maintains a broad stocking inventory of conductive tube profiles because current demand does not justify keeping every profile on the shelf.

However, conductive profiles can still be produced as special manufacturing runs when the application and volume support them.

The correct choice depends on the specification, handling environment, expected reuse, and level of protection required.

Sometimes No Existing Tube Exists

Another misconception is that every semiconductor package must already have a standard tube available.

That is not always true.

Device packages continue to evolve.

New body dimensions are introduced. Lead configurations change. Manufacturers develop packages that do not align with older extrusion profiles.

When that happens, we first look carefully at the existing options.

Sometimes an existing profile can safely accommodate the device.

Sometimes a small difference in clearance or orientation creates an unacceptable risk.

And sometimes there is simply no existing tube that does the job correctly.

In those cases, a custom extrusion may be necessary.

Custom tooling introduces cost, so it should not be recommended casually.

But trying to force a device into an unsuitable existing profile can create far greater costs later through damaged components, production problems, or failed qualification.

The purpose of the engineering review is to determine which path makes the most sense before those problems occur.

Why Experience Still Matters

Catalogs are useful.

Package standards are useful.

Mechanical drawings are essential.

But none of them replace judgment.

Experience is what tells me to pause before matching a package name to a tube.

Experience is what prompts me to request the device drawing.

Experience is what reveals that four technically compatible profiles may behave very differently in production.

And experience is what allows me to say:

“I know you called looking for a tube, but I do not believe a tube is the safest packaging for this device.”

That may not be the answer someone expected.

It may also be the answer that prevents a costly mistake.

That is the part of this work I care about most.

Malaster does not exist simply to move packaging from a shelf into a box.

We help protect components that other people have spent enormous time, skill, and money developing.

Those devices may eventually become part of medical equipment, communications systems, manufacturing tools, aircraft, vehicles, or products none of us will ever see.

The packaging may appear to be a small part of that process.

But when the packaging is wrong, it can become a very expensive problem.

When it is right, it quietly performs its job and allows everything else to keep moving.

That is what good packaging should do.

Frequently Asked Questions

Let’s Review the Application First

Choosing semiconductor packaging is not really about finding a plastic profile that appears to fit.

It is about understanding the device, the risks, and the process around it.

Sometimes the best solution will be an antistatic IC shipping tube.

Sometimes it will be a conductive tube.

Sometimes it will be a JEDEC tray, a thermoformed tray, or a custom packaging solution.

My responsibility is not to steer every application toward the same answer.

It is to help identify the answer that protects the device and supports the way it will actually be used.
