ESD FOAM MATERIAL SELECTION GUIDE

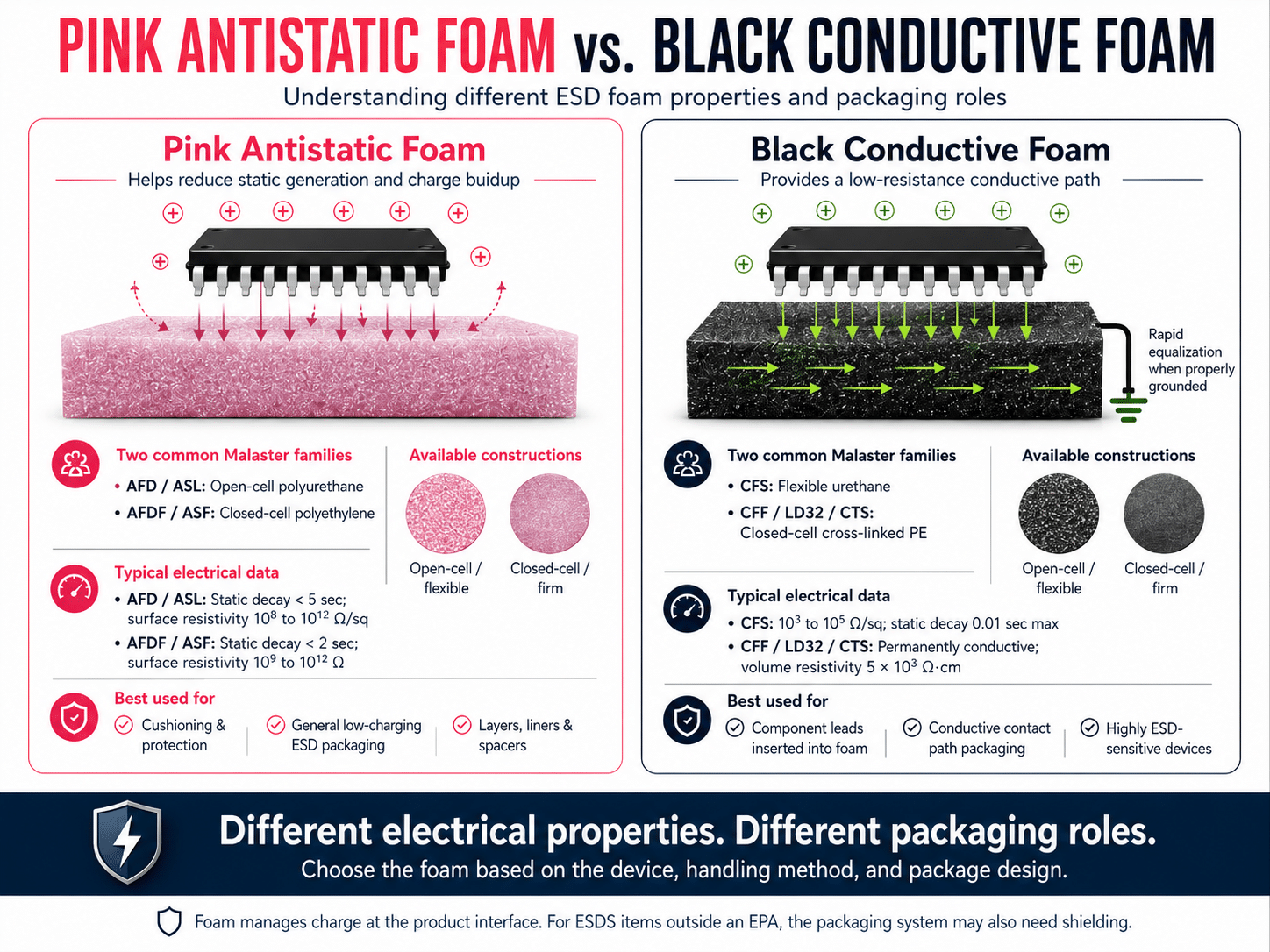

Pink Antistatic Foam vs. Black Conductive Foam
Pink antistatic foam and black conductive foam serve different electrical roles in electronics packaging. This guide compares Malaster ESD foam families, documented electrical properties, flexible and closed-cell constructions, and the practical factors used to select foam for semiconductor devices and other static-sensitive electronic components.
Pink antistatic foam is used to help reduce static generation and charge buildup while providing cushioning or surface protection. Black conductive foam provides a much lower-resistance path for electrical charge movement and is used when conductive contact is required as part of the ESD packaging system.
ANTISTATIC VS. CONDUCTIVE FOAM
The Color Identifies the Family. The Electrical Behavior Determines the Role.
Antistatic and conductive foam should not be selected from color alone. Color provides a useful visual identifier, but the electrical properties of the specific material determine how it interacts with electrostatic charge.
Pink antistatic foam is commonly selected when packaging needs low-charging behavior together with cushioning, spacing, surface protection, or component separation. Black conductive foam is selected when a lower-resistance conductive path or conductive component contact is required.
First determine the electrical behavior required by the application. Then select the physical construction that provides the appropriate cushioning, firmness, cleanliness, recovery, and device support.
MALASTER ESD FOAM FAMILIES
Antistatic and Conductive Foam Materials
Malaster uses multiple material constructions within the antistatic and conductive foam families. The designators below identify the materials used across standard foam cushions, wafer cushioning, protective packaging, and custom applications.
PINK ANTISTATIC FOAM
Helps Reduce Static Generation and Charge Buildup
Used when low-charging behavior is needed together with cushioning, lining, spacing, or surface protection.
Resilient, flexible antistatic polyurethane foam that provides soft cushioning while helping control static generation and charge accumulation.
Static decay: < 5 seconds, 5000 V to 50 V
Surface resistivity: 1 × 108 to 1 × 1012 Ω/sq
Lightweight closed-cell antistatic polyethylene with a clean, non-abrasive surface and firmer support than open-cell polyurethane.
Static decay: < 2 seconds
Surface resistivity: 1 × 109 to 1 × 1012 Ω
BLACK CONDUCTIVE FOAM
Provides a Low-Resistance Conductive Path
Used when conductive contact is required and electrical charge must move readily through the foam as part of the ESD-control system.
Flexible conductive urethane foam used where soft cushioning and conductive component contact are both required.
Surface resistance: 103 to 105 Ω/sq
Point-to-point resistance: 103 to 105 Ω
Static decay: 0.01 second maximum
Firm closed-cell cross-linked polyethylene engineered for applications requiring permanent electrical conductivity, clean support, and low particulate generation.
Volume resistivity: 5 × 103 Ω·cm
Permanently conductive
UNDERSTANDING ESD FOAM
Electrical Property and Foam Construction Are Not the Same Thing
“Antistatic versus conductive” describes electrical behavior. “Flexible, open-cell, or closed-cell” describes physical construction and mechanical performance.
Electrical Behavior
Determines how the foam interacts with electrostatic charge. Antistatic materials are intended to reduce static generation and charge accumulation. Conductive materials provide a much lower-resistance path through which charge can move.
Physical Construction
Determines how the foam cushions, supports, recovers, tolerates moisture, controls particulates, and contacts the device. Flexible urethane and firm closed-cell polyethylene can perform very different mechanical jobs.
TECHNICAL DATA AT A GLANCE
Malaster ESD Foam Comparison
The values below are presented using the measurement type and units reported in the applicable supplier material documentation.
| Malaster Family | Construction | Supplier-Reported Electrical Data | Typical Packaging Role |
|---|---|---|---|
| AFD / ASL |
Pink antistatic Open-cell polyether polyurethane |
Static decay:
< 5 sec,
5000 V → 50 V
Surface resistivity: 1 × 108 to 1 × 1012 Ω/sq |
Soft cushioning, liners, separators, protective packaging |
| AFDF / ASF |
Pink antistatic Closed-cell polyethylene |
Static decay:
< 2 sec
Surface resistivity: 1 × 109 to 1 × 1012 Ω |
Firm cushioning, surface protection, wafer cushioning, liners and spacers |
| CFS |
Black conductive Flexible urethane |
Surface resistance:
103
to
105 Ω/sq
Point-to-point: 103 to 105 Ω Static decay: 0.01 sec maximum |
Conductive cushioning, component contact, lead insertion applications |
| CFF / LD32 / CTS |
Black conductive Closed-cell cross-linked polyethylene |
Volume resistivity:
5 × 103 Ω·cm
Permanently conductive |
Firm conductive support, clean packaging, precision component protection |
PRACTICAL ESD FOAM SELECTION
Start With the Packaging Requirement, Not the Foam Color
The right ESD foam depends on the electrical objective and the mechanical job the material must perform.
Foam Is One Part of the ESD Protection System
Antistatic or conductive foam helps manage conditions at the product-to-package interface while also providing mechanical protection. Conductive foam does not automatically ground a component simply because the material is conductive.
For ESDS devices handled or transported outside an ESD Protected Area, the complete packaging system may also need appropriate shielding, closures, bonding or grounding where applicable, and handling controls.
BEFORE SELECTING ESD FOAM
Questions That Help Determine the Right Material
A few application details usually narrow the material choice quickly and help prevent selecting foam on appearance alone.
ESD FOAM FAQ
Antistatic and Conductive Foam Questions
These are common questions when comparing ESD foam for semiconductor and electronics packaging.
What is ESD foam?
ESD foam is a general term for foam materials used in packaging or handling systems for electrostatic-sensitive devices. Depending on the material, the foam may be antistatic, conductive, or engineered for another defined electrical behavior while also providing cushioning, separation, or component support.
What is the difference between antistatic and conductive foam?
Antistatic foam is intended to help reduce static generation and charge buildup. Conductive foam provides a much lower-resistance electrical path through which charge can move. The appropriate choice depends on the device, component contact, handling method, and complete ESD-control strategy.
Is pink antistatic foam the same as static-dissipative foam?
Not necessarily. Antistatic or low-charging behavior and an electrical resistance classification describe related but different material characteristics. A foam should be evaluated from its documented electrical properties rather than from color or terminology alone.
Is all black foam conductive?
No. Black color alone does not establish electrical conductivity. The specific foam grade and its documented electrical test data should be confirmed before the material is selected for an ESD-sensitive application.
What is the difference between open-cell and closed-cell ESD foam?
Open-cell polyurethane is generally softer and more resilient, making it useful for cushioning. Closed-cell polyethylene provides a firmer structure, low water absorption, and a clean surface suited to applications that require more positional support or surface protection.
Why are component leads sometimes inserted into conductive foam?
Conductive foam can provide a common low-resistance contact path between conductive leads or terminals when the package is designed for that purpose. Device requirements and the complete ESD-control system should still be evaluated.
Does conductive foam automatically ground an electronic component?
No. Conductive foam provides a path for charge movement, but whether that path is connected to ground or another reference potential depends on the design of the complete packaging and handling system.
Can ESD foam replace a static-shielding package?
Not by itself. Foam can provide mechanical protection and help manage electrostatic conditions at the product interface. Protection from external ESD events may require an appropriately designed shielding bag, conductive container, box, or other complete packaging system.
ABOUT THE TECHNICAL DATA
Source Basis and Material Identification
The electrical values and construction descriptions on this resource are based on supplier technical documentation maintained for the Malaster-designated AFD / ASL, AFDF / ASF, CFS, and CFF / LD32 / CTS material families.
The values are presented as supplier-reported material data rather than converted into a single universal measurement. This is important because surface resistance, surface resistivity, point-to-point resistance, volume resistivity, and static-decay testing describe different characteristics and may use different test methods and units.
Material selection should therefore be based on the current specification for the actual foam grade, application requirements, device sensitivity, handling method, and complete packaging design.
