JEDEC Tray Technical Handbook

Standardizing the handling system

The semiconductor industry handles an enormous variety of package shapes, sizes, lead configurations, and device functions. The trays carrying those devices cannot all use identical pockets, but they can share important external characteristics.

Standardized tray formats allow equipment designers, semiconductor manufacturers, distributors, assembly operations, and packaging suppliers to work within a common mechanical ecosystem. Trays can be stacked, transported, indexed, stored, and presented to compatible equipment without every organization creating an entirely separate handling standard.

What JEDEC does and does not define

JEDEC standards establish common dimensional and handling conventions. They do not create one universal tray pocket for every semiconductor package. The device cavity still must be engineered around the component it is intended to protect.

This distinction explains why trays can share a standardized external footprint while having dramatically different pocket arrays, support structures, device orientations, and loading capacities.

Understanding the standardized tray envelope

The tray envelope is the controlled physical space occupied by the carrier. It includes the overall length and width, rim-to-rim dimensions, side profile, stacking features, and orientation references used by compatible equipment.

Figure 3 shows a representative outline drawing. The top view establishes the external footprint and the location of reference features. The side view shows the vertical relationship between the tray body, stacking surfaces, and supporting edges.

These dimensions allow trays with different pocket arrays to move through a shared handling environment. Equipment can reference the outside tray geometry even when the devices carried inside are completely different.

External dimensions do not define the cavity

The standardized envelope should not be confused with the package-specific pocket. Row spacing, column spacing, pocket depth, support geometry, and package orientation depend on the component being carried.

Two trays can therefore fit the same external handling system while using different cavity counts, internal layouts, device support surfaces, and loading orientations.

Reading the topside of a tray

The topside is the device-loading side of the tray. It contains the cavity or pocket matrix, the surfaces that support each package, and the clearance areas that protect sensitive package features.

Figure 4 shows an angled topside view. The repeating pocket geometry occupies most of the tray, while the perimeter rim, end tab, molded markings, circular features, and edge geometry provide references for handling, orientation, stacking, and identification.

The visible pocket geometry in this example is specific to the packages the tray was designed to carry. Other JEDEC trays may look very different internally while still using the same general functional categories.

How to confirm the loading side

One practical indicator is the molded identification wording on the end tab. When that wording is readable in its intended orientation, the tray is being viewed from the topside. The device-support features should also appear positioned to receive and locate the package.

This distinction matters because the top and bottom surfaces perform different functions. Loading a device against the wrong side or confusing upper and lower stacking interfaces can lead to unstable stacking, device contact, or incorrect orientation.

Material determines how the tray behaves

JEDEC trays are produced from engineered polymer systems selected for the intended semiconductor package and process environment. The base resin may be modified with conductive additives, reinforcing fillers, pigments, stabilizers, or other ingredients to create the required combination of electrical and mechanical properties.

Figure 5 shows trays with different colors, constructions, and pocket layouts. Their visible differences may help distinguish tray families, but appearance alone does not reveal the actual resin, electrical classification, maximum process temperature, reinforcement system, or dimensional capability.

Material selection must therefore be based on documentation, identification markings, testing, and application requirements rather than color or surface appearance.

The finished tray matters more than the resin name alone

Two trays described with the same general polymer family may still perform differently because of filler content, molding conditions, wall thickness, geometry, moisture history, prior thermal exposure, and the quality of the finished part.

Material identification is an important starting point, but tray approval should ultimately consider the performance of the complete molded carrier within the actual handling process.

Begin with the semiconductor package

Material selection cannot be separated from pocket design. Different package types expose different vulnerable features, and the tray must protect those features throughout loading, stacking, shipping, processing, and removal.

Gull-wing devices such as QFP packages require support and clearance that protect their leads. BGA and CSP packages require pocket geometry that prevents damaging contact with solder balls. In both cases, the material must be stiff and stable enough to preserve the intended support geometry.

Match the material to the complete process profile

The source material identifies tray selection around design considerations, bake temperature, ESD requirements, and part-number identification. These factors are related. A higher-temperature material is not automatically suitable if its electrical behavior, stiffness, cleanliness, or pocket geometry does not match the application.

Figure 6 organizes these decisions into one selection framework. It combines device-package protection, source-listed ESD ranges, representative bake conditions, and example material-code groups.

The package body should carry the support load

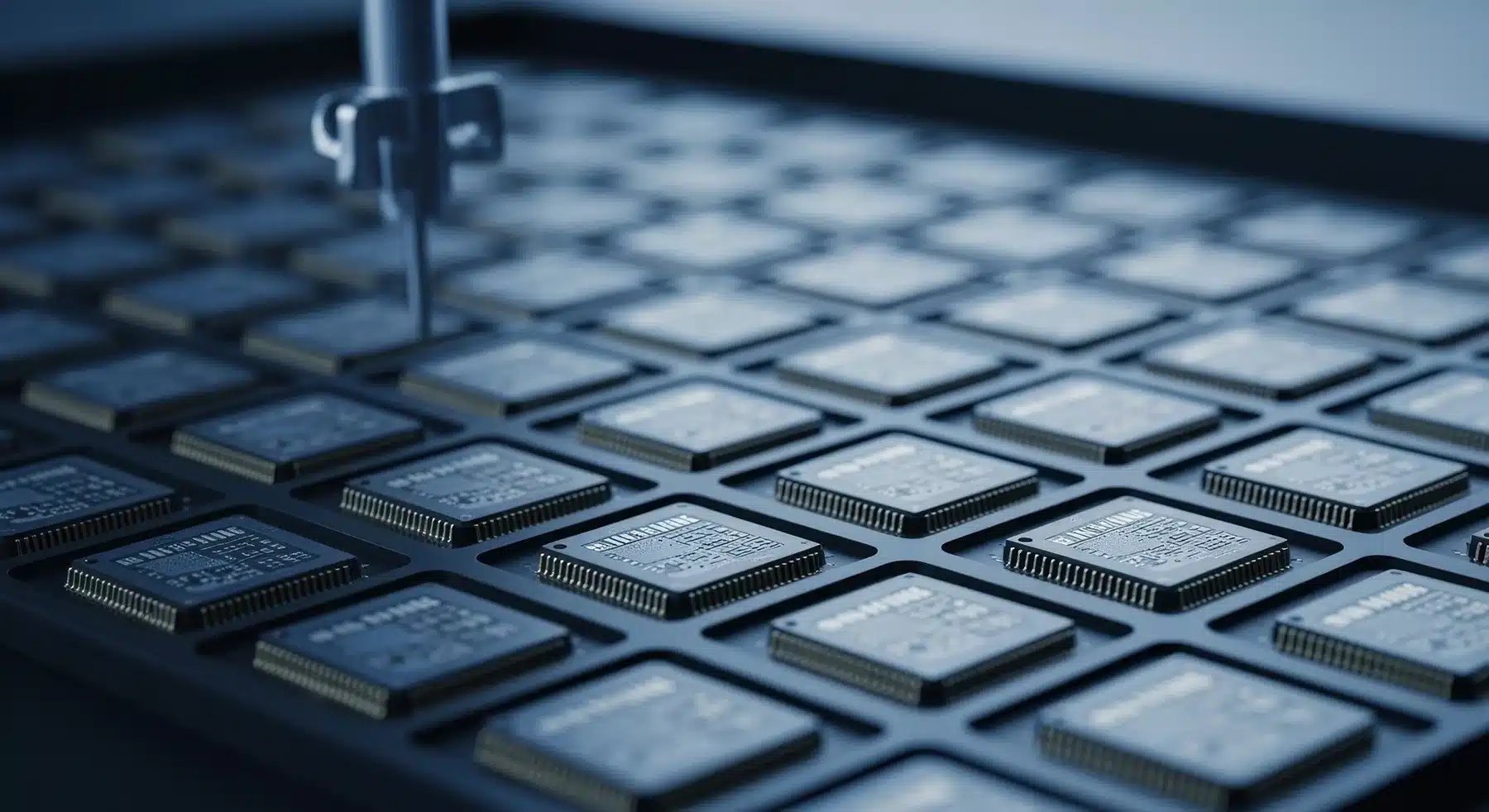

Figure 7 shows QFP semiconductor devices seated in individual tray pockets. The gull-wing leads remain visible around all four sides of each package, making the relationship between the body, lead field, and cavity walls easy to inspect.

The tray should support the package at body surfaces that are permitted to carry load. The leads should remain free from the cavity floor, pocket walls, neighboring components, and the tray stacked above.

Support geometry may include ledges, pads, ribs, corner seats, or other molded features. Their shape and location depend on the package family and the surfaces approved for contact.

Clearance protects more than device fit

Clearance is required around vulnerable package features, but it is also needed for loading, unloading, thermal expansion, normal molding tolerance, and minor dimensional variation in both the device and tray.

Too little clearance may cause rubbing, lead contact, trapped components, or loading damage. Too much clearance may allow the package to rotate, shift, strike pocket walls, or present inconsistently to automated equipment.

Charge can be generated during ordinary handling

Movement between materials can create electrostatic charge. Handling, sliding, lifting, packaging, clothing, gloves, work surfaces, and automated equipment may all contribute to charge generation or transfer.

Sensitive semiconductor devices can be damaged by an electrostatic discharge even when no spark is visible or felt. The purpose of the static-control system is to reduce uncontrolled charge generation, prevent isolated charge accumulation, and provide predictable paths for charge movement.

The tray controls the device interface

Figure 8 shows a gloved operator handling semiconductor devices at an ESD-controlled workstation. The tray material helps control charge where the package contacts or approaches the carrier, while the work surface and grounding system provide the larger path back to ground.

The tray does not replace personnel grounding, workstation controls, approved handling procedures, or suitable equipment. It works with them.

Flatness begins with a controlled reference

Figure 9 shows a JEDEC tray being examined on a flat inspection surface. A low viewing angle helps reveal lifted edges, corner gaps, rocking, and changes in the relationship between the tray perimeter and the reference plane.

Inspection should be performed using a consistent support condition. Debris beneath the tray, an uneven table, localized hand pressure, or an inconsistent tray orientation can create misleading observations.

Different distortion patterns create different risks

Bow may curve the tray primarily along its length or width. Twist may raise opposite corners and prevent the tray from sitting evenly. Local distortion may affect only one rail, tab, pocket group, or stacking feature.

A tray does not need to resemble a potato chip to cause trouble. Small changes in edge height or local geometry may be enough to interfere with guides, sensors, stack separation, or device clearance.

Begin by confirming exactly what tray is being inspected

Molded markings, part numbers, material codes, revisions, date codes, manufacturers, and cavity information connect the physical tray to its engineering documentation. This identification should be recorded before dimensional or performance results are accepted.

Figure 10 shows a controlled inspection process for a tray with 14 mm by 14 mm cavities. The inspection combines visual examination, magnification, dimensional measurement, electrical testing, cleanliness review, and documented disposition.

Acceptance must reflect the intended application

A tray suitable for general component storage may not satisfy the requirements of automated handling, elevated-temperature processing, high-reliability devices, controlled cleanliness, or repeated reuse.

Inspection criteria should therefore come from the applicable tray drawing, customer requirements, process specifications, device sensitivity, equipment needs, and defined acceptance procedure.

Begin by documenting the tray as received

Pre-clean inspection establishes the type and location of contamination and identifies damage that cleaning cannot correct. Loose particles, fibers, oils, labels, adhesive residue, moisture, stains, embedded debris, and damaged pocket features should be documented before the tray enters the cleaning process.

Figure 11 shows a controlled workflow that moves from inspection through cleaning, rinsing, drying, verification, and protected storage. The specific method and parameters must be validated for the tray material, material code, condition, and intended application.

Cleaning should preserve tray performance

A process can remove visible contamination while creating a different problem. Excessive heat may distort the tray. Aggressive chemistry may attack the polymer or markings. Abrasive tools may scratch surfaces, create particles, or damage support features.

The goal is not maximum cleaning force. The goal is enough controlled cleaning action to reach the required cleanliness without changing the tray’s dimensional, mechanical, electrical, or identification characteristics.

Keep matching trays aligned as one controlled stack

Figure 12 shows a short stack of matching empty JEDEC trays resting horizontally on a clean, level surface. The trays face the same direction and their stacking features appear fully engaged.

Consistent alignment helps distribute load through the intended perimeter and stacking surfaces. Misaligned, rotated, or mixed tray designs may engage incorrectly, create unstable contact, or place force on pocket structures that were not designed to carry the stack.

The restraints shown in the figure are illustrative. The appropriate number, width, material, placement, and tension depend on the tray design, whether devices are loaded, the stack height, the transport method, and the applicable supplier, customer, or process requirements.

Empty trays and loaded trays require different evaluations

Empty trays can often be grouped for storage with the primary goal of protecting their geometry and cleanliness. Loaded trays require additional review of device orientation, vertical clearance, stack load, top protection, ESD controls, vibration, and restraint contact.

A storage or bundling method that is acceptable for empty trays should not automatically be applied to a stack containing semiconductor devices.

Requalification is more than cleaning

Cleaning addresses contamination. Requalification addresses whether the complete tray remains suitable for the defined application after cleaning and evaluation.

Figure 13 shows the tray moving through four controlled stages: receipt and identification, cleaning and inspection, disposition and segregation, and protected release for reuse.

Inspection may include pocket condition, stacking features, dimensions, flatness, cleanliness, electrical properties, and molded identification. The exact checks depend on the application and the acceptance criteria controlling the tray.

Reuse status must be earned through verification

A tray may look complete and clean while still having worn supports, damaged rails, excessive warpage, altered dimensions, unreadable identification, or electrical performance that no longer meets the requirement.

Requalification connects the physical condition of the tray to a documented decision. That decision should identify what was checked, how it was evaluated, and the application for which the tray was accepted.

Separate visible defects from functional concerns

Figure 14 identifies several tray conditions that can often be found through controlled visual inspection, including cracked rails, broken pocket supports, trapped debris, lifted edges, worn stacking features, and damaged identification areas.

Other concerns cannot be confirmed from appearance alone. A tray may require dimensional measurement, fit evaluation, stack testing, or electrical verification before its condition can be understood.

Troubleshoot the system, not only the tray

A device that moves inside a cavity may indicate worn supports, incorrect tray identity, excessive pocket clearance, a mismatched package, or a tray that has become distorted. Poor equipment fit may result from warpage, damaged rails, incorrect tray dimensions, debris, or an equipment setup problem.

The investigation should therefore compare the tray drawing, device drawing, equipment interface, handling history, environmental exposure, and inspection results before assigning a root cause.

Define the application before contacting a tray source

Figure 15 begins with the semiconductor package because the device drawing establishes the body size, height, terminal or lead geometry, sensitive surfaces, orientation, and allowable contact areas.

Process requirements then establish the temperature exposure, cleaning environment, handling method, storage conditions, transport risks, ESD controls, stacking needs, and equipment interfaces that the tray must support.

Only after those inputs are understood should candidate tray geometry, material, pocket design, and performance be compared.

Approval applies to the finished tray, not a general tray family

Two trays may share the same nominal outside dimensions while differing in cavity profile, tray height, stacking features, material formulation, revision, manufacturer, and electrical behavior.

Final approval should therefore identify the exact tray part number, revision, manufacturer or qualified source, material designation, applicable documentation, and verified application.

Begin with the approved configuration

Figure 16 begins with the exact tray specification established during engineering approval. The supplier should confirm that the quotation matches the approved part number, revision, material, cavity configuration, stacking geometry, ESD requirement, and new or requalified reusable status.

A supplier description such as “equivalent JEDEC tray” is not enough by itself. Equivalence should be supported by drawings, material and electrical information, samples, measurements, testing, and traceability appropriate to the application.

Receiving inspection closes the procurement loop

Supplier confirmation and purchase-order language do not eliminate the need to inspect delivered trays. Receiving should verify that the physical product, markings, quantity, revision, condition, documentation, lot identity, and status agree with the approved order.

Trays should enter approved inventory only after required documentation and inspection results have been reviewed and the delivered configuration has been accepted.
