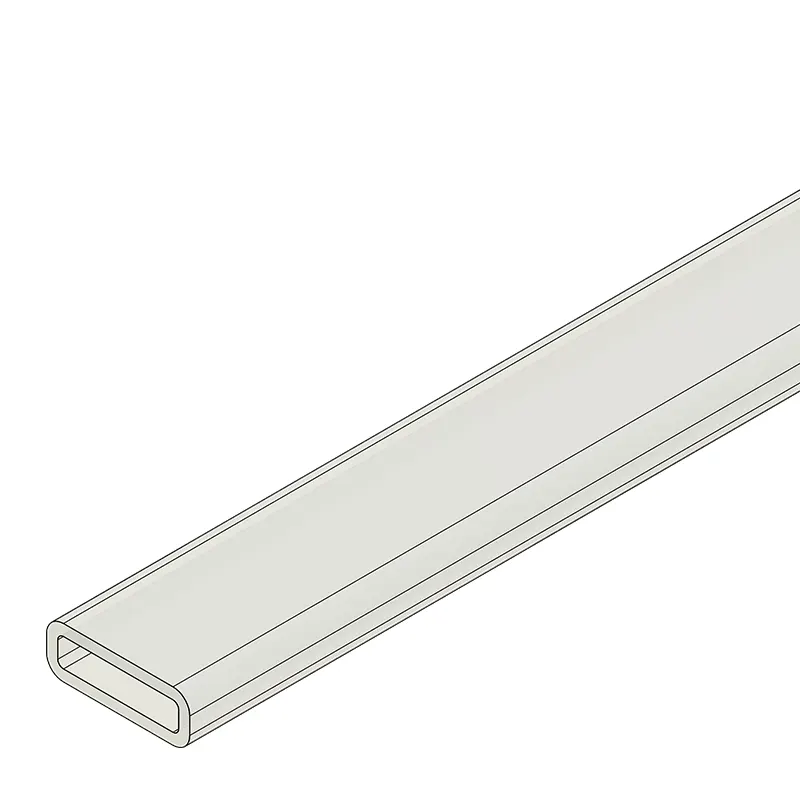

MC-5MLF/AS 5×5 MLF/QFN Anti Static Plastic IC Shipping Tubes

Antistatic Shipping Tube MC-5MLF/AS – Premium ESD Protection

Detailed Product Description

The Antistatic Shipping Tube MC-5MLF/AS is designed to provide superior protection for 5mm wide MLF / QFN (Micro Lead Frame / Quad Flat No-lead) devices during handling, shipping, and storage. Manufactured from surface-treated PVC, this shipping tube offers reliable electrostatic discharge (ESD) protection. The treatment ensures that sensitive components remain shielded from harmful static buildup, which can lead to component failure.

Initially developed for use in the semiconductor and IC manufacturing industries, the MC-5MLF/AS antistatic shipping tube has since been adopted across industries, including aerospace, OEM manufacturing, and solar technology. The secure fit and End Stop Plugs make it an ideal solution for transporting MLF / QFN devices, ensuring minimal movement and maximum protection.

• Material: High-Performance Surface Treated Antistatic RPVC
• Color: Transparent with a Gentle Blue Hue
• Compatibility: Fully Optimized for Seamless Integration Across Diverse Electronic Component Applications

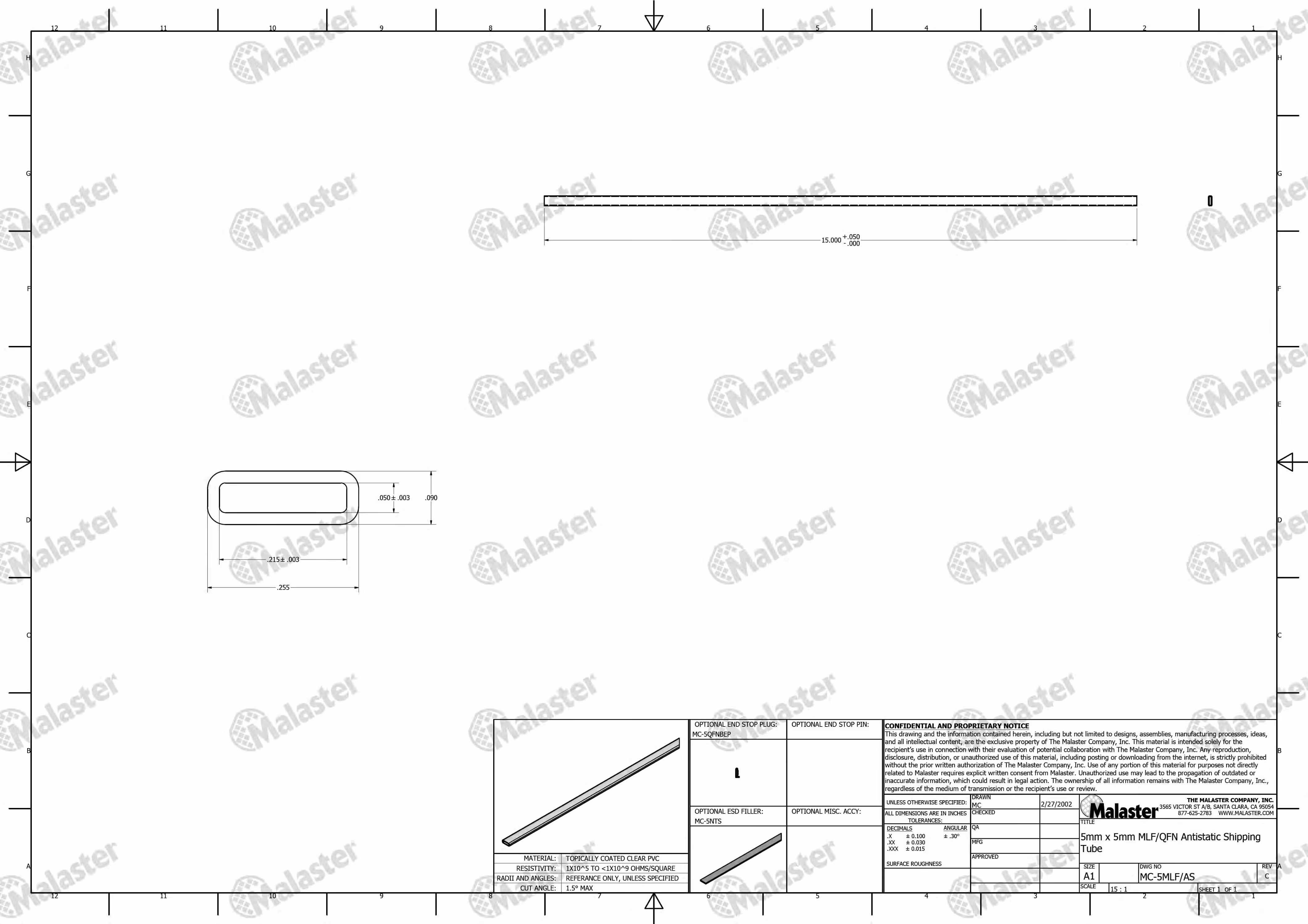

• Dimensions: 15.00″ +/- 0.050”
• ESD Protection Level: Surface resistivity ranging from 10⁵ to 10⁹ ohms for robust electrostatic discharge protection

Key Features and Benefits

• ESD Protection: The tube’s antistatic properties prevent electrostatic buildup, safeguarding 5mm MLF / QFN ICs from potential damage.
• End Stop Plugs or Pins: Available to ensure devices remain securely in place during transport, providing reliable protection and stability for your components.
• Custom Fit for MLF / QFN Devices: The tube’s dimensions are tailored for 5mm MLF / QFN ICs, ensuring a snug fit that prevents movement.

• Optional ESD Tube Fillers: For enhanced protection, ESD tube fillers can be used to further secure sensitive components within the tube. These fillers help prevent movement during transit, maintaining consistent electrostatic discharge protection and ensuring that your devices remain safe from potential damage. Ideal for high-value or delicate electronics, the fillers provide an additional layer of safeguarding, offering peace of mind throughout the shipping and handling process.

Practical Applications

The Antistatic Shipping Tube MC-5MLF/AS is used across various industries, including:

• Semiconductor Manufacturing: Ensures safe transit and storage of 5mm MLF / QFN devices, providing protection from ESD.
• Component Distribution: Facilitates the secure transportation of ICs, minimizing damage and reducing returns.
• OEM Manufacturing: Ensures reliable transit of high-value components between assembly lines and manufacturing facilities.
• Aerospace and Solar Industries: Provides essential protection for delicate electronics in challenging environments.
• IC Reclamation: Used to safely store and transport reclaimed ICs from printed circuit boards (PCBs), allowing for reuse.

Advantages Over Other Packaging Solutions

The Antistatic Shipping Tube MC-5MLF/AS provides superior protection compared to generic packaging solutions. Standard tubes do not offer the same level of ESD protection, increasing the risk of static buildup that can damage ICs. The surface-treated PVC material ensures longevity and reusability, making it a cost-effective choice.

Why Use Malaster Products

Malaster is a leader in developing high-quality antistatic packaging solutions. The MC-5MLF/AS Antistatic Shipping Tube is a reflection of Malaster’s commitment to providing superior protection for sensitive electronics. Our engineering and materials ensure that your products are transported safely.

Suggested Accessories

• End Stop Pins and Plugs: For additional packaging security, consider using End Stop Pins (used in PMLF / QFN tubes) and End Stop Plugs (used in both PMLF / QFN and MLF / QFN tubes).
• ESD Tube Fillers: For enhanced protection, ESD tube fillers can be used to further secure sensitive components within the tube. These fillers help prevent movement during transit, maintaining consistent electrostatic discharge protection and ensuring that your devices remain safe from potential damage. Ideal for high-value or delicate electronics, the fillers provide an additional layer of safeguarding, offering peace of mind throughout the shipping and handling process
• ESD-Safe Bags: Use ESD-safe bags alongside the shipping tube for enhanced protection.

Environmental and Economic Benefits

The Antistatic Shipping Tube MC-5MLF/AS is designed for reusability, reducing the environmental impact of disposable packaging. Its durable construction ensures multiple uses, providing long-term cost savings for businesses handling large volumes of sensitive electronics.

Industry Compliance and Quality Assurance

The Antistatic Shipping Tube MC-5MLF/AS complies with industry standards for ESD protection. Each tube undergoes rigorous testing to meet regulatory requirements, ensuring it performs reliably during transportation and storage.

Conclusion

The Antistatic Shipping Tube MC-5MLF/AS is the ideal solution for protecting 5mm MLF / QFN ICs from electrostatic discharge. With its surface-treated PVC, End Stop Plugs, and ESD Tube Fillers, this tube ensures safe transit for sensitive components in industries ranging from semiconductor manufacturing to aerospace.
