Antistatic Shipping Tube MC-MNSOIC/AS

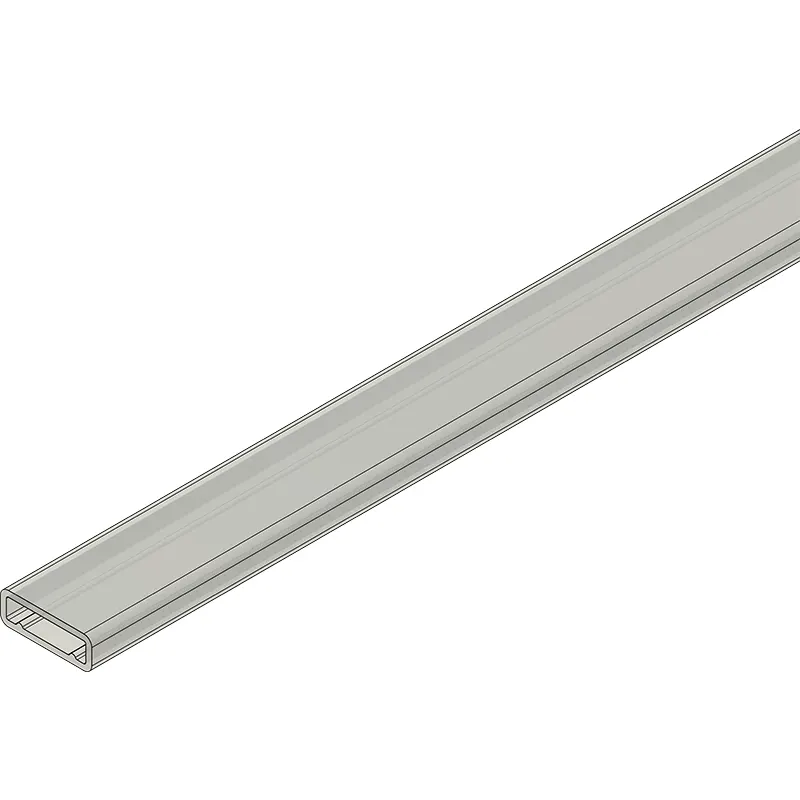

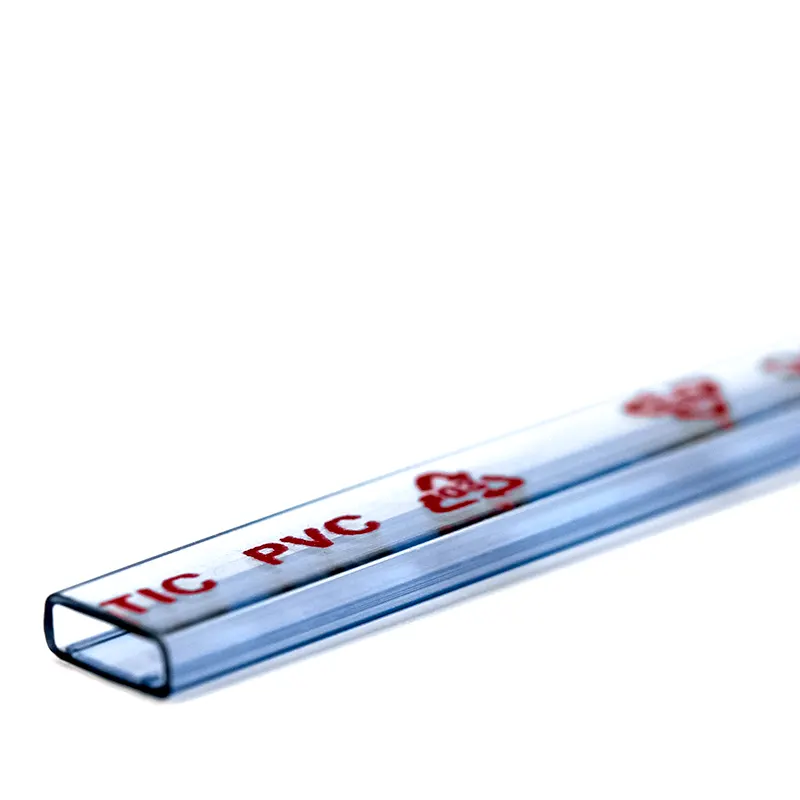

The Antistatic Shipping Tube MC-MNSOIC/AS is a 6.768-inch clear-blue rigid PVC tube for correctly matched SOIC packages. It supports organized handling, storage, and shipment while keeping component orientation and loading visible.

At 6.768 inches overall, MC-MNSOIC/AS has a different overall loading length from the 20-inch SOIC tubes in the catalog. Its listed MC-MNSOICBEP plug must be evaluated with the device clearance and usable space. Confirm the exact profile instead of selecting by length alone.

MC-MNSOIC/AS Specifications

Confirm Device Fit Before Ordering

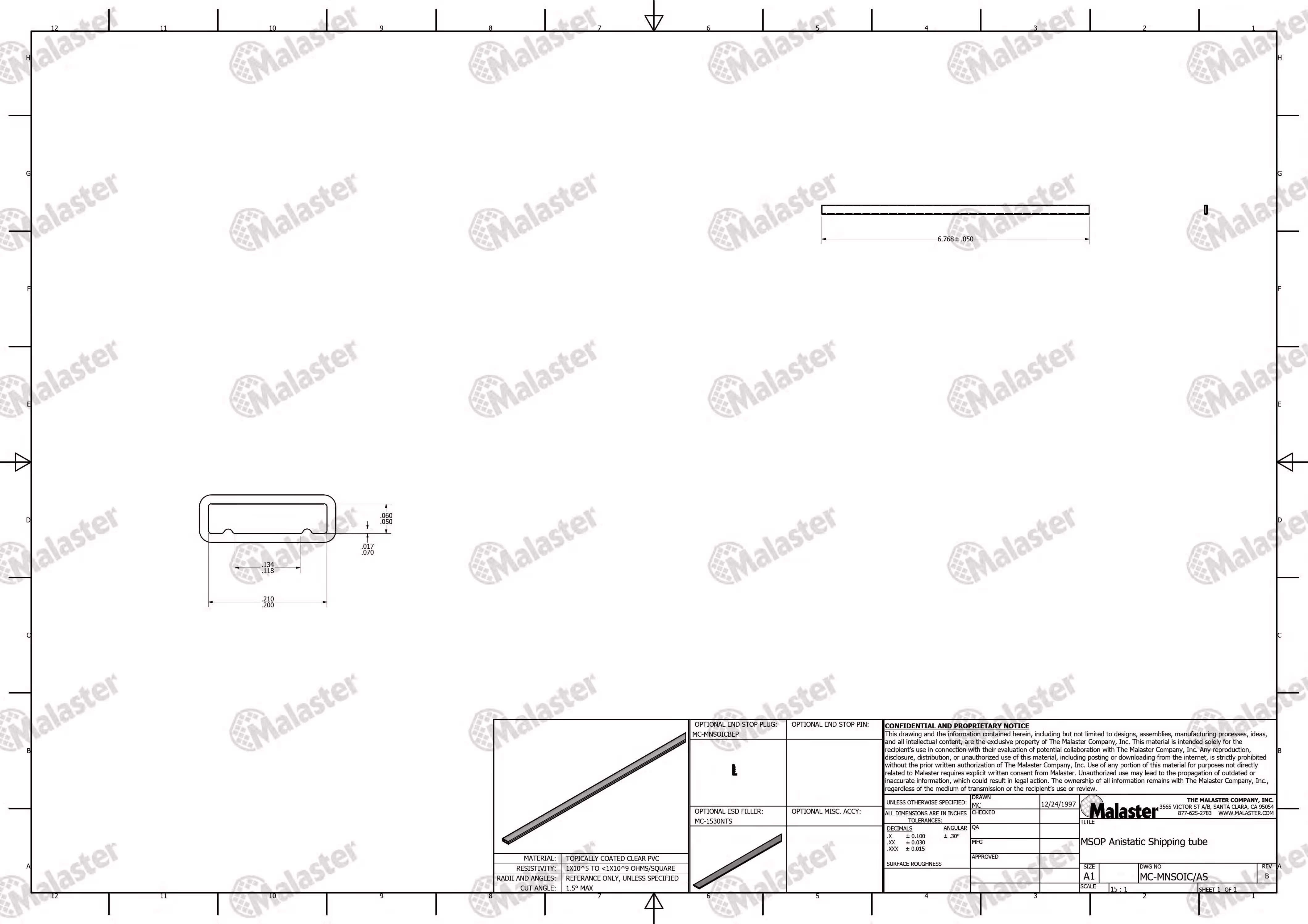

For small-outline integrated circuits, body width and total lead span are separate measurements. Review both against the profile, along with package height, lead form, and the direction in which the device will be loaded.

• Body and leads: Compare the maximum body envelope and the full formed-lead span with the drawing.
• Support points: Check the package rests on suitable surfaces without making delicate leads carry the load.
• Loading: Confirm orientation, smooth travel, and the interface with any tube feeder or automated handler.
• Usable length: Allow for end closures and fillers before calculating capacity.

Use the IC shipping tube selection guide to review the component, tube profile, closures, and handling process together.

Closure and Filler Options for MC-MNSOIC/AS

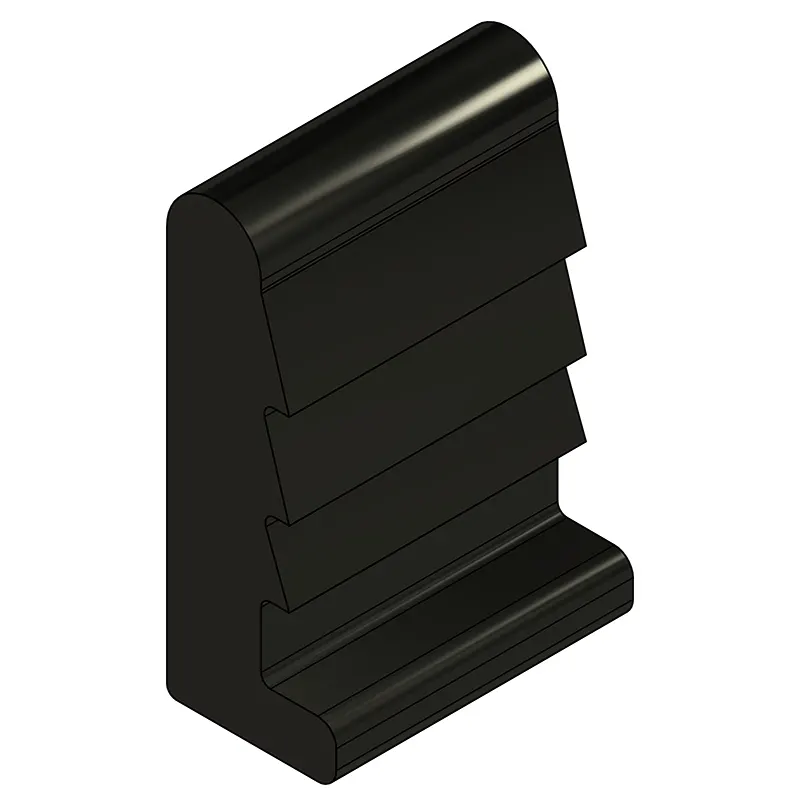

The following accessories are listed for this profile. Match the end plug to the tube opening and check insertion depth, component clearance, and retention under the intended handling conditions.

For this 6.768-inch tube, reserve space for the closures before determining the retained device count. Size any compatible filler to the remaining usable space; a longer supplied filler is not a ready-fit length. Check that retention does not force the device or its contacts.

Explore the IC tube accessory range for plugs, pins, and fillers, with compatibility checked for the selected profile.

Antistatic Performance and Qualification

The CYASTAT 609 surface treatment supports static control within an ESD-controlled process. Malaster’s Clear Antistatic IC Tubes material data sheet, MDS-AS-001 Rev A, reports recent production measurements of 2 × 10⁸ to 9 × 10⁹ Ω/square. These are results for tested profiles and lots, not a universal acceptance range for MC-MNSOIC/AS. Confirm the applicable profile-specific resistance requirement for your application.

Protect tube surfaces from contamination and abrasion. Antistatic treatment is not a substitute for an ESD-controlled process; review the complete packaging configuration under the conditions in which it will be used.

Loading, Shipping, and Reuse

Inspect the channel and closure surfaces before loading. Stop if a device catches or requires force; recheck the lead form and orientation. Protect surfaces from contamination and abrasion, and cushion loaded tubes against bending or crushing. Reuse depends on condition, cleanliness, retention, and ESD-process suitability.

Review Malaster’s five checks for shipping electronic components when selecting retention, cushioning, and outer packaging for loaded tubes.

Material and Application Documentation

Request MDS-AS-001 Rev A for the clear antistatic tube family. Malaster maintains supporting RoHS, EU REACH SVHC, and applicable packaging-regulation documentation. Applicability depends on the declared product family, jurisdiction, and declaration date; request current documents for your requirement.

Compare Another Tube Option

Review MC-8L-SOIC/AS when comparing another profile in this family. Package designation, length, support geometry, and closure requirements should be checked separately; this comparison does not establish interchangeability.
