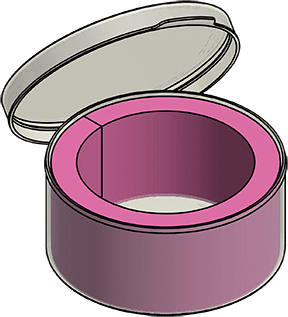

MC-605503JLF 5-inch Lined Wafer Jar, Closed-Cell

What Is Included with MC-605503JLF

These are the supplied internal packaging components. The wafer load and packing sequence depend on the application. Review any required bag, outer cushioning and shipping carton separately.

Custom Wafer Packaging Options

Malaster can adapt wafer packaging with custom foam profiles, liners, cushions and separators. For MC-605503JLF, begin with the complete part envelope and usable enclosure space, then define the support, contact and handling requirements. A custom interior can serve a different shape or load arrangement from a conventional round-wafer stack.

Malaster has configured 6-inch jars for square solar wafers and other jar formats for mounted wafer frames, dicing blades and processing tools. A frame is reviewed as a complete mounted assembly, including tape and projections. A blade holder may support through the center hole while keeping the cutting edge clear. These examples describe broader customization capabilities; fit depends on the selected enclosure and insert geometry.

For a square part in a round enclosure, check its corner-to-corner dimension as well as its side length. The foam and loading clearance need additional space. A nominal wafer-family label alone does not establish the maximum square size.

View the configuration guide

The Wafer Jar Packaging Configuration guide explains the assembly and application examples. For drawing and contact requirements, see the custom foam insert specification guide.

Complete WafPak Product Systems

WafPak Product Systems combine the enclosure with specified foam liners or supports, cushion discs and wafer separators in a complete internal wafer shipping assembly. They offer a coordinated starting point when you need the packaging components together. Many sizes have both open-cell and closed-cell cushion options; the liner and supplied quantities can also differ between systems.

The following systems serve this wafer family. Compare their supplied components before selecting an option.

MC-503SW WafPak System
Soft, antistatic open-cell polyurethane cushion discs.

Supplied component counts describe what comes with the assembly; they do not establish wafer capacity or prescribe a layer sequence. Review any required shielding or moisture-barrier bag, outer cushioning and shipping carton for the actual shipment.

Lined Jars and Individual Components

For replenishment or a configuration assembled from individual parts, compare MC-605603JL, MC-605503JLL, MC-605503ASL, MC-605503ASF, MC-5AFD, MC-5TD.

Browse wafer jars and lined configurations, soft and firm wafer cushion discs and Tyvek wafer separators. Match the actual size and part number to the intended assembly. A lined jar and a complete WafPak system have different supplied contents.

Separators, Stack Height and Final Fit

A horizontal wafer pack works as a coordinated stack. In the conventional Tyvek-separated arrangement, a separator sits between each pair of wafers and between each end wafer and its foam cushion. Three wafers between two cushions therefore use four separators. Intermediate foam changes the required contact interfaces and separator count.

The separator itself contacts the wafer surface. Choose its material and outline for the permitted contact conditions. If wafer-face contact is prohibited, request a support review before selecting a stacked arrangement. The sidewall liner surrounds the stack and serves a different function from the upper and lower cushion discs.

Closed stack height = combined wafer thickness + combined separator thickness + cushion thickness under the intended compression. Include every layer and compare the result with the usable closed-lid depth. Check loading, removal and the lowest and highest intended wafer counts. Excessive compression can load a fragile wafer or prevent proper closure; an underfilled pack can allow unwanted movement.

Use the wafer packaging configuration guide to review layer order, foam selection and fit. Record the selected part numbers, quantities and packing sequence so replenishment preserves the intended configuration.

Material and ESD Considerations

Malaster standard wafer jar bodies and lids use injection-molded polypropylene homopolymer. The jar and lid have no assigned ESD rating. Antistatic foam properties do not transfer an ESD rating to the polypropylene enclosure or establish shielding performance for the complete package.

Specify the required electrical behavior, cleanliness, surface compatibility and supporting material documentation for the finished configuration. Select any shielding or moisture-barrier packaging and outer shipping protection as part of the complete packing method.

Configure Your Wafer Packaging

Send Malaster the part drawing or actual outline, thickness, quantity per pack, permitted contact areas, loading method and shipping conditions. Include any approved materials, ESD or cleanliness requirements and your current packaging part numbers. We can review MC-605503JLF as a replacement component, a standard configuration or the starting point for a custom packaging requirement.

Discuss your wafer packaging requirements or browse WafPak Product Systems.
