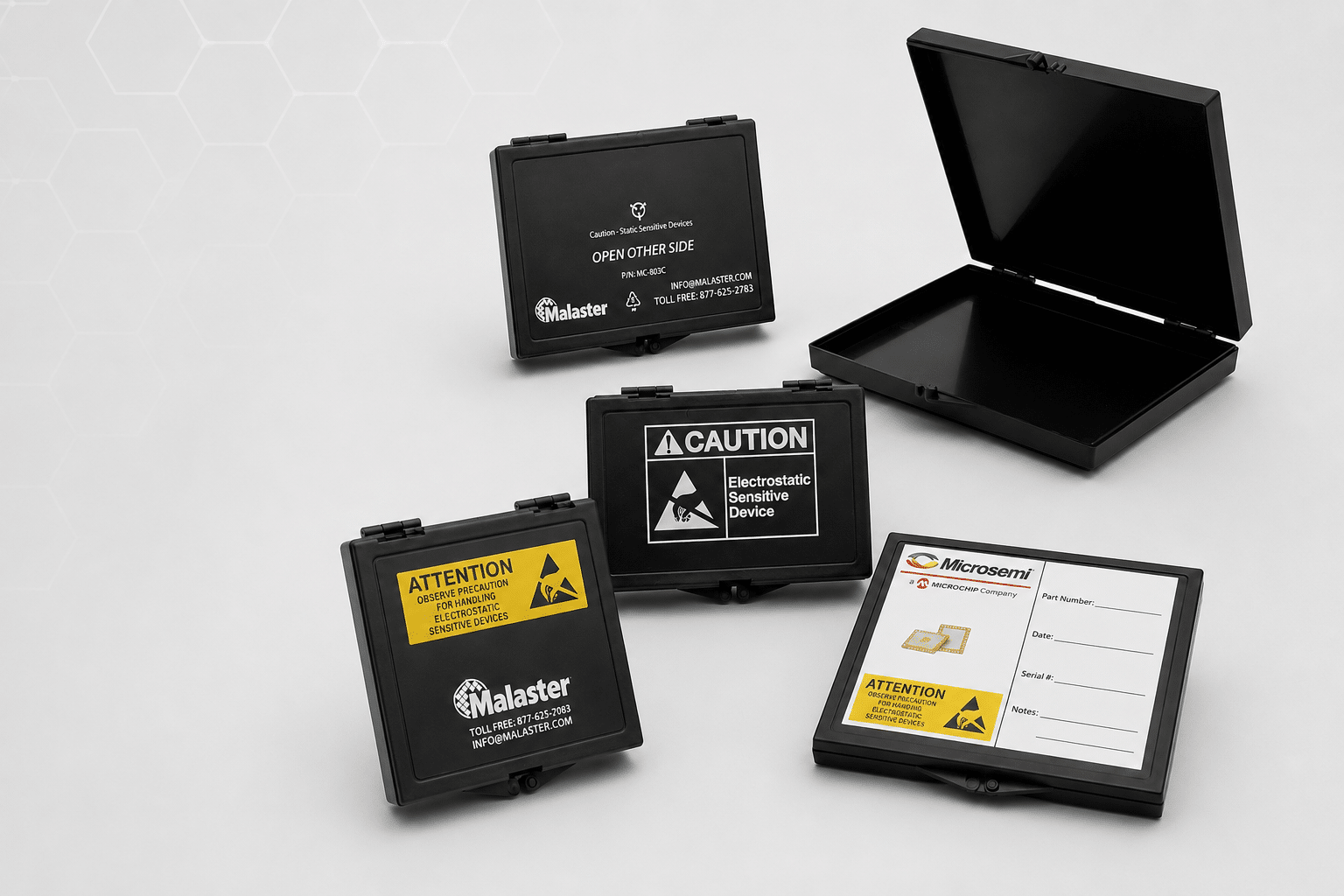

MC-846C : Hinged Conductive Box 0.75″ x 2.56″ x 3.5″

Secure ESD IC Component Box MC-846C: Advanced Protection for Sensitive Electronics

As the demand for sophisticated electronic devices increases, the need to protect sensitive components from electrostatic discharge (ESD) becomes more crucial. The Secure ESD IC Component Box MC-846C is engineered to provide top-tier protection for integrated circuits (ICs) and other delicate electronic components. Whether utilized in aerospace, defense, medical electronics, or high-tech manufacturing, this box is designed to ensure that your valuable components remain safe during storage, transport, and handling.

Understanding Electrostatic Discharge (ESD) and Its Impact

Electrostatic discharge is a significant threat to sensitive electronics. ESD occurs when two objects with different electrical potentials come into contact or near proximity, leading to a sudden transfer of static electricity. This phenomenon can cause immediate damage or lead to latent failures in electronic components, potentially resulting in costly repairs, operational downtime, or even complete device failure.

The ESD IC Component Box MC-846C is specifically engineered to counteract these risks. By providing a secure environment that dissipates static charges and prevents static build-up, this box plays a vital role in protecting sensitive electronics from the damaging effects of ESD.

Key Features of the Secure ESD IC Component Box MC-846C

The ESD IC Component Box MC-846C is a sophisticated solution, designed with several key features to ensure the highest level of protection for sensitive electronics:

• High-Quality Conductive Materials: The box is constructed from materials with excellent conductive properties, ensuring that any static charge is safely dissipated. This reduces the risk of ESD, which could otherwise cause damage to the components stored inside. Conductive materials are essential in preventing the accumulation of static electricity, which could otherwise discharge through delicate electronics.
• Durable and Robust Construction: The MC-846C is built to withstand the challenges of both transportation and storage. Made from high-quality, durable materials, this box is designed to protect its contents from physical damage, whether it’s being shipped across the country or stored in a warehouse for extended periods. Its robust construction ensures that it can endure the rigors of its environment while keeping the electronics inside safe.
• Customizable Fit: The box is available in various sizes and configurations, allowing for a snug, custom fit for different types of ICs and other electronic components. This tailored fit minimizes movement within the box, reducing the risk of physical damage during transit. A custom fit ensures that each component is securely housed, preventing any unnecessary movement that could lead to damage.
• Low Foreign Object Debris (FOD) Risk: Foreign Object Debris can pose a significant problem in environments where sensitive electronics are involved. The Secure ESD IC Component Box MC-846C is manufactured to minimize the risk of FOD, ensuring that no extraneous materials contaminate the sensitive components inside. This level of protection is critical in maintaining the integrity of the components during storage and transport.
• Thermal Stability: The MC-846C is designed to withstand a wide range of temperatures, making it suitable for use in various environments. Whether exposed to extreme heat or cold, this box will protect its contents without compromising the integrity of the materials. This thermal stability ensures that the box can be used in diverse environments without risk of damage to the electronics inside.
• Flame Resistance: In industries where fire safety is a concern, the flame-resistant properties of the MC-846C provide additional peace of mind. The box meets stringent flame resistance standards, with a burn rate of less than 1.5 inches per minute. This feature is particularly important in environments where fire hazards are a concern, adding an extra layer of safety to the protection the box provides.

Technical Specifications of the MC-846C

The ESD IC Component Box MC-846C is engineered with precision, ensuring that it meets the highest industry standards for ESD protection and physical durability. Here’s a detailed look at its technical specifications:

• Surface Resistivity: <10⁵ ohms/sq. This low surface resistivity ensures that the box can safely dissipate any static charge, preventing it from building up on the surface. This is crucial in maintaining the integrity of the electronic components housed inside.
• Volume Resistivity: <100 ohm-cm. Volume resistivity measures how well a material can resist the flow of electric current throughout its volume. The low volume resistivity of the MC-846C ensures that static charges are evenly distributed and dissipated, reducing the risk of localized ESD. This distribution is key to preventing any single point of failure due to static build-up.
• Impact Strength:
  • Notched: 1.2 ft lbs/in
  • Unnotched: 7 ft lbs/in These impact strength values indicate the box’s ability to withstand physical shocks and stress during transportation, ensuring that the contents remain safe. This level of impact resistance is essential for protecting sensitive electronics during transport, where they might be subjected to rough handling.
• Thermal Conductivity: 1.8 BTU/hr/ft². This value indicates the box’s ability to conduct heat. With its good thermal conductivity, the MC-846C can maintain a stable internal temperature, protecting sensitive components from thermal stress. This ensures that even in fluctuating temperatures, the electronics inside are not subjected to damaging thermal conditions.
• Load Deflection Temperature:
  • @264 psi: 210°F
  • @66 psi: 220°F These temperatures reflect the box’s ability to withstand significant pressure without deforming, making it suitable for various demanding environments. The ability to withstand such pressures without compromising the box’s structure is critical in ensuring the safety of the electronics inside.
• Flammability: <1.5 in/min (ASTM D 635). The box meets rigorous flammability standards, making it a safe choice in environments where fire resistance is critical. This low flammability rate ensures that the box contributes to overall safety in environments where fire hazards are present.

Applications of the Secure ESD IC Component Box MC-846C

The versatility of the Secure ESD IC Component Box MC-846C makes it an invaluable asset across a range of industries. Here are some of the primary applications:

• Electronics Manufacturing and Assembly: In electronics manufacturing, ICs and other sensitive components must be transported between various stages of production. The MC-846C box provides the necessary protection to prevent ESD damage during these transitions, ensuring that components remain in optimal condition throughout the manufacturing process. This protection is critical in maintaining the quality and reliability of the final electronic products.
• Storage of Sensitive Components: Long-term storage of ICs and other delicate electronics can expose them to environmental risks, including static buildup. The MC-846C box offers a controlled environment that mitigates these risks, ensuring that components remain in pristine condition until they are needed. The controlled environment provided by the box is essential in preserving the longevity and functionality of the stored components.
• Shipping and Logistics: The logistics of shipping sensitive electronics require careful planning and the right packaging. The MC-846C box is ideal for this purpose, providing a robust solution that protects against both physical damage and ESD during transportation. This ensures that sensitive electronics arrive at their destination in the same condition they were in when they were shipped, minimizing the risk of damage.
• Aerospace and Defense: In industries like aerospace and defense, where reliability is critical, the MC-846C box is an excellent choice for transporting and storing high-value, sensitive electronics. Its robust construction and superior ESD protection ensure that critical components arrive at their destination safely. The high standards required in these industries are met by the protective qualities of the MC-846C, making it a reliable choice for mission-critical applications.
• Medical Electronics: Medical devices often contain sensitive electronic components that must be protected from ESD. The MC-846C box is suitable for ensuring that these components arrive at their destination in perfect working order, free from static damage. The reliability of medical electronics is paramount, and the MC-846C provides the necessary protection to ensure that these devices function correctly when they are needed most.

The Importance of ESD Protection in Modern Electronics

As electronic devices become more advanced, the components within them are increasingly vulnerable to ESD. This is especially true as the size of ICs and other components continues to shrink, making them more susceptible to damage from even small amounts of static electricity.

For companies involved in the production, storage, or transportation of sensitive electronics, investing in ESD protective packaging like the Secure ESD IC Component Box MC-846C is not just an option; it is a necessity. By preventing ESD damage, companies can reduce the risk of product failures, enhance their reputation for quality, and protect their bottom line.

How to Maximize ESD Protection with the MC-846C

To ensure optimal performance, the ESD IC Component Box MC-846C should be used in conjunction with other ESD-protective materials and environments. Proper handling and grounding practices will further reduce the risk of ESD, keeping sensitive components safe.

• Proper Grounding: Ensure that the work environment where the MC-846C box is used is properly grounded. This will allow any static charge to be safely dissipated. Proper grounding is one of the most effective ways to prevent ESD and ensure the safety of sensitive components.
• Regular Inspection: Regularly inspect the MC-846C boxes for signs of wear and tear. While the box is designed to be durable, physical damage can compromise its effectiveness. Regular inspections help ensure that the box continues to provide the highest level of protection.
• Use with Compatible Materials: For maximum ESD protection, use the MC-846C box with other ESD-safe materials, such as ESD-safe foam or bags. This layered approach provides additional security against static electricity. Using compatible materials enhances the overall protective capability of the system.
• Training for Handling: Ensure that all personnel handling the MC-846C boxes are trained in ESD safety procedures. Proper handling is critical to maintaining the integrity of the protective measures. Training ensures that everyone involved understands the importance of ESD protection and knows how to handle the boxes to prevent damage.

Comparing the Secure ESD IC Component Box MC-846C with Other ESD Solutions

While the Secure ESD IC Component Box MC-846C is a top-tier solution for protecting sensitive electronics, it’s important to understand how it compares with other ESD protection options on the market. Here’s a comparison:

• Standard ESD Bags vs. MC-846C: While ESD bags are commonly used for protecting smaller components, they don’t offer the same level of physical protection as the MC-846C box. The box is more robust and provides better protection against physical damage during transport. For more delicate or valuable components, the MC-846C offers superior protection.
• Conductive Trays vs. MC-846C: Conductive trays are useful for organizing components during assembly, but they are not ideal for long-term storage or shipping. The MC-846C box offers superior protection in these scenarios, especially when used with custom foam inserts. The box’s design provides a more comprehensive solution for protecting components during transport.
• Plastic Storage Containers vs. MC-846C: Standard plastic storage containers do not provide any ESD protection and can actually contribute to static buildup. The MC-846C box, on the other hand, is designed specifically to prevent ESD, making it the better choice for sensitive electronics. The added ESD protection provided by the MC-846C makes it a superior choice over standard plastic containers.

The Future of ESD Protection and the Role of Innovative Solutions Like the MC-846C

As electronics continue to evolve, the need for advanced ESD protection will only grow. New technologies, such as 5G, IoT devices, and advanced computing systems, will require even more stringent ESD protection to ensure reliability and longevity.

The Secure ESD IC Component Box MC-846C represents a significant step forward in the field of ESD protection. By offering a combination of robust construction, advanced materials, and customizable options, this box is well-suited to meet the demands of the future. As new challenges arise, innovative solutions like the MC-846C will be critical in ensuring that sensitive electronics remain protected.

Conclusion: The Secure ESD IC Component Box MC-846C as a Critical Tool for Electronics Protection

The Secure ESD IC Component Box MC-846C is more than just a storage solution—it’s a critical tool for protecting sensitive electronics in a wide range of industries. With its advanced features, robust construction, and superior ESD protection, this box ensures that your valuable components are safe from the dangers of electrostatic discharge.

Investing in the MC-846C means investing in the future of your electronic components. By choosing Malaster’s ESD protection solutions, you are ensuring the highest level of safety and reliability for your products, no matter where they are in the supply chain.
